EXPO Teca Vino Wine Wall TV23 - Built in, with Horizontal Bottle Shelving - For Restaurant Use
The Teca Vino TV23 is from our Professional range which means it is suitable only for commercial settings such as hotels, bars or restaurants. There are three options available to choose from which vary in sizes. The Teca Vino has a full aluminium structure which can be covered with numerous styles of wood but as a standard, is offered with a solid wood black frame.
*Pricing on website is based on RAL9005 matte black frame, with standard LED lighting* Please contact us for a quotation if you would like a different finish as prices may vary. See the catalogue here for the range of frames and colours available.
- Aluminium finish with warm white LED lighting (ON/OFF switch)
- Sliding doors (double glazed and UV treated)
- Shelf configuration: horizontal bottles. Maximum bottle height is 370mm, max. diameter is 93mm.
- Digital temperature controller (5 - 18°C)
- HPL / MDF frame is mounted with a snap-on system (easy installation)
- Automatic defrost and automatic evaporation system
- Anti vibration system
- Inverter compressor
- Lock with key
- Temperature control panel
- Heated rails
- Ventilated and static cooling system - fan ON/OFF
- Warranty: 2 year parts and labour UK mainland and NI
- ROI warranty: 1 year parts only

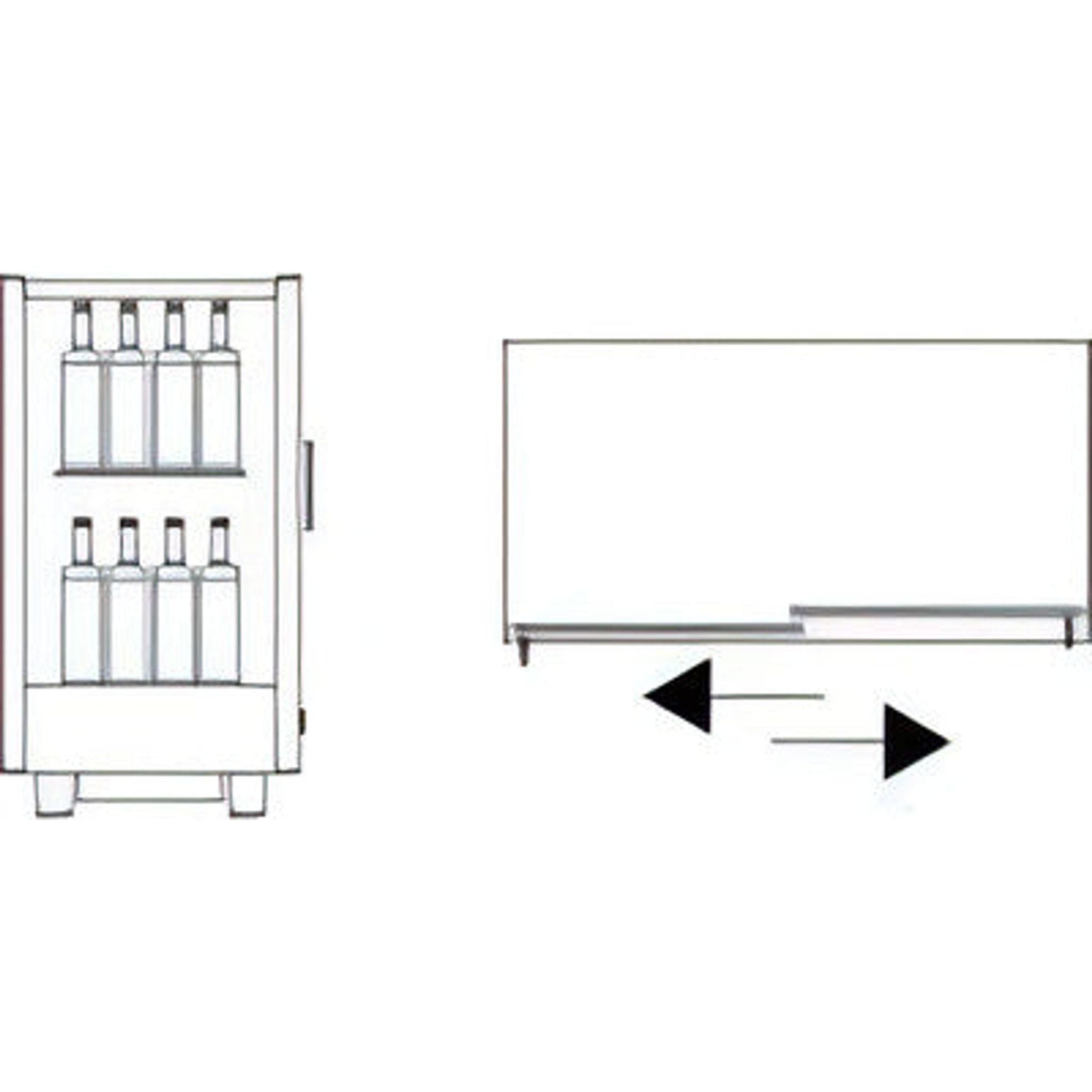

TV-M23: 64 Bottle capacity, white LED lighting, Depth: 530mm, 2 sliding doors and lock

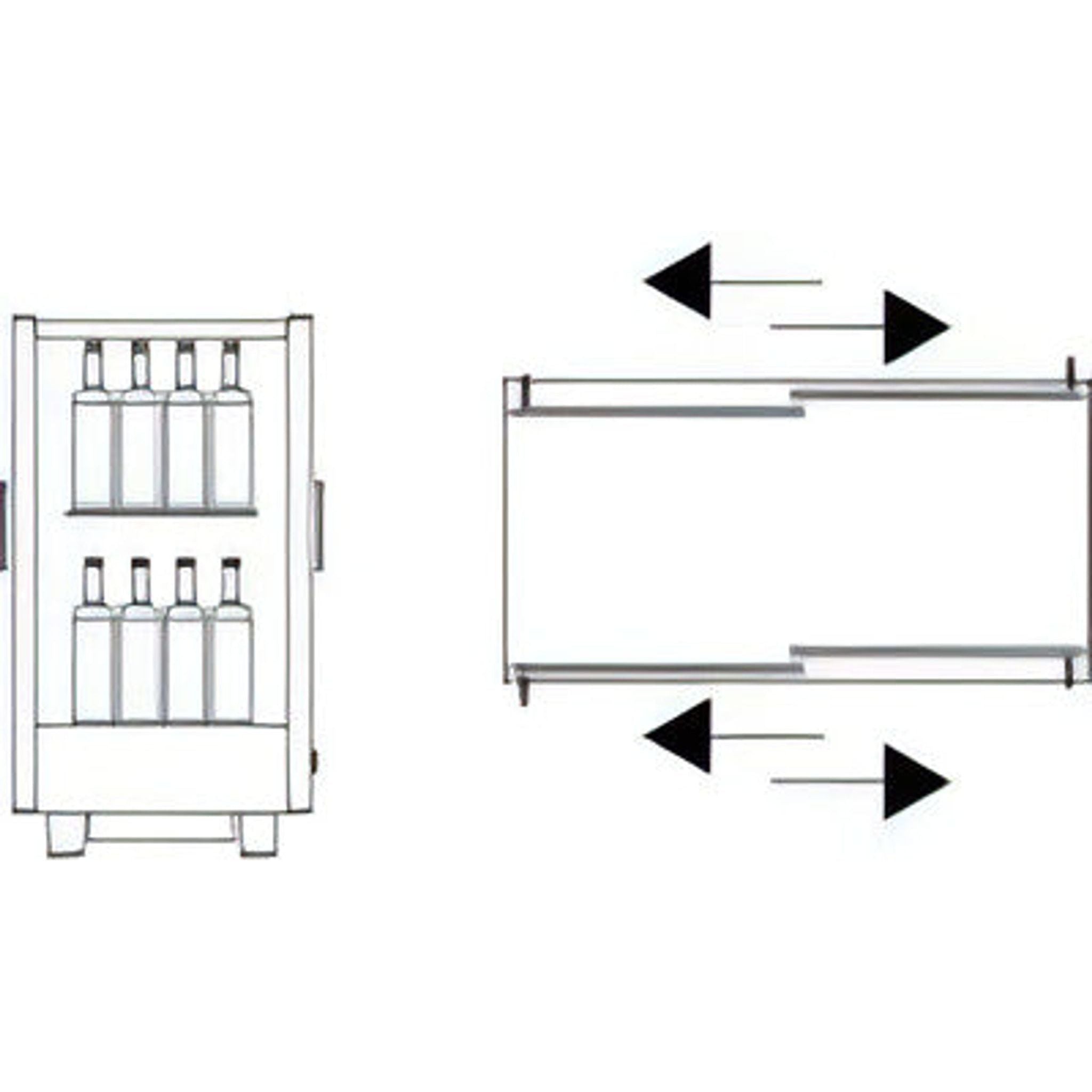

TV-C23: 64 Bottle capacity, white LED lighting, Depth: 530mm, 4 sliding doors - 360 degree view of wine bottles
Customise your own wine wall
- Frame: 1) Linear finish or 2) Dune finish
- Frame finish: choose from a range of finishes from matte black/white, laminated textured wooden finishes to even your own RAL colour and gold/silver painted finishes (prices vary). Please see the catalogue here for the range of frames and colours available.
- Bottle Configuration: the TV10 comes with horizontal shelving only, if you would like to customise shelving, please see TE-B14.
- Add optional extras (additional charges apply - please contact us to arrange this):
1) Remote control lighting (RGB multicoloured / CBD dimmable warm/white)
2) Sprayed all black (matte) internally and externally
The Teca Vino wine walls are multi temperature zone units and have a multitude of temperature options depending on whether the fans are turned on or off and the temperature the cabinet is set to.
The temperature can be set using a digital control panel which also controls the lighting, fans and defrost cycle.
Example temperature operation, if set to 4°C:
Fans off - the wine wall will operate between 4°C at the bottom and 16°C at the top.
Fans on - the wine wall will operate between 4°C at the bottom and 10°C at the top.
The use of the fans creates a smaller temperature range as the cooler air can be distributed more evenly. Please note these are examples only and the actual temperature range may differ depending on ambient temperatures.
Dimensions: Height: 938mm Width: 860mm Depth: 530mm
Dimensions: Height: 938mm Width: 860mm Depth: 530mm
Teca Vino Installation
There are certain installation requirements needed for each model, please refer to their specification for instructions.
For example, to install the TE-BH10 (shallow depth) correctly and ensure the units do not overheat - it is advised the a gap of 30mm or more is left at the back of the unit - firstly to prevent any unwanted vibrations but also to allow warm air to escape above the wine wall.
The cool air enters the wine wall from the bottom so the feet must not be covered - the airflow should be free and unhindered.
For built in installation, there must be a vent / open space at the top of the unit to allow warm air to escape.
The shallow depth 'H' model must also be fixed to the wall with the provided bracket for stability purposes.
EXPO wine walls are manufactured to order in Italy and typically take around 6 weeks to be produced – depending on the finish, accessories you have chosen. Delivery lead time is approximately 2 weeks once production is complete.
