Teca Vino - Wine Wall TV12 - For Restaurant Use



The Teca Vino range from Expo Europe - the new freestanding range brings high quality components together with a luxurious display.

  • Multi Temperature Zone Cabinet
  • White LED lighting
  • 112 Bordeaux bottles
  • 1 year warranty
  • Dimensions: H 189.3cm x W 86cm x D 53cm

  • 🚛 Lead Time for UK mainland orders only: Typically 4-6 weeks (manufactured to order)

Teca Vino - Wine Wall TV12 - For Restaurant Use

Wine wall buying guide

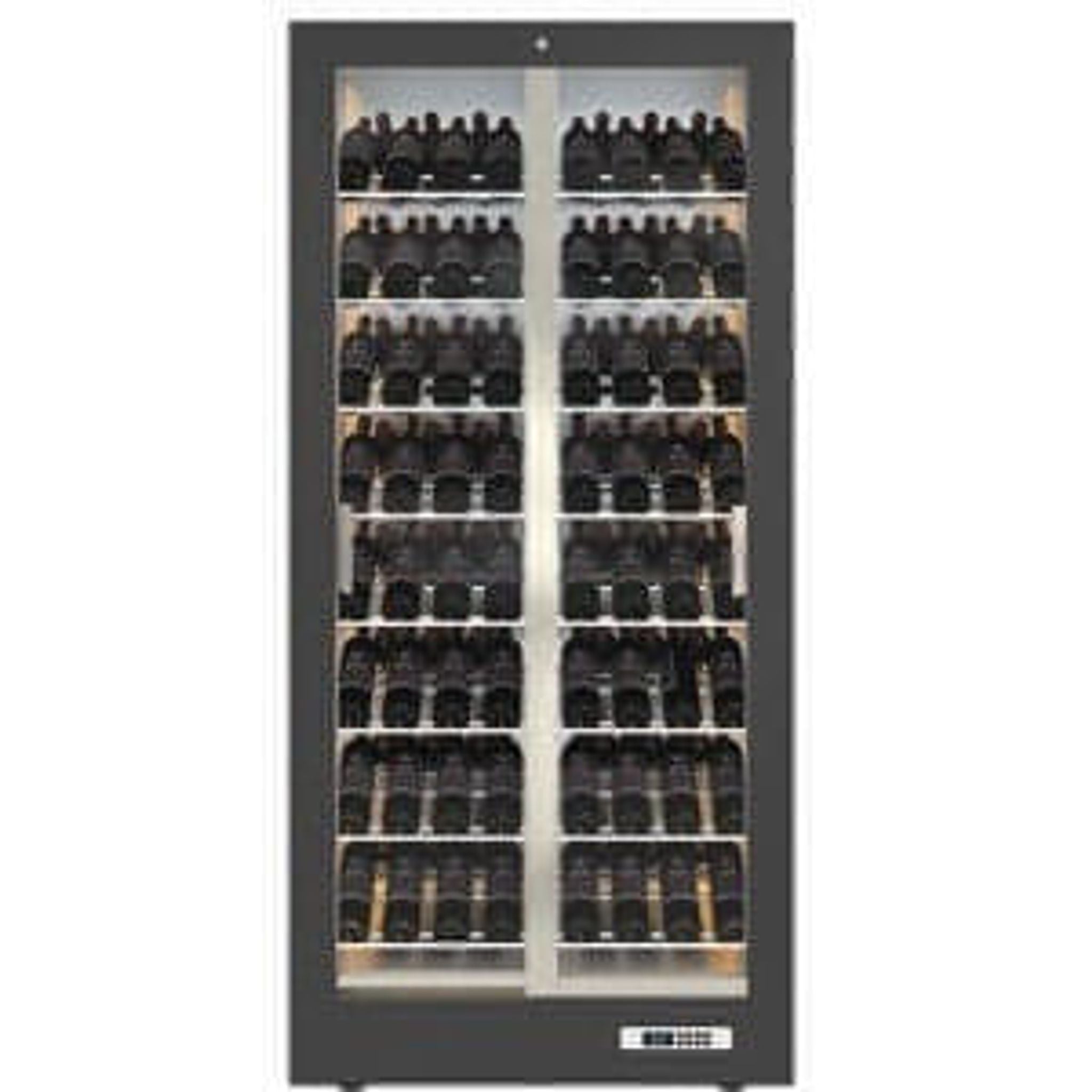

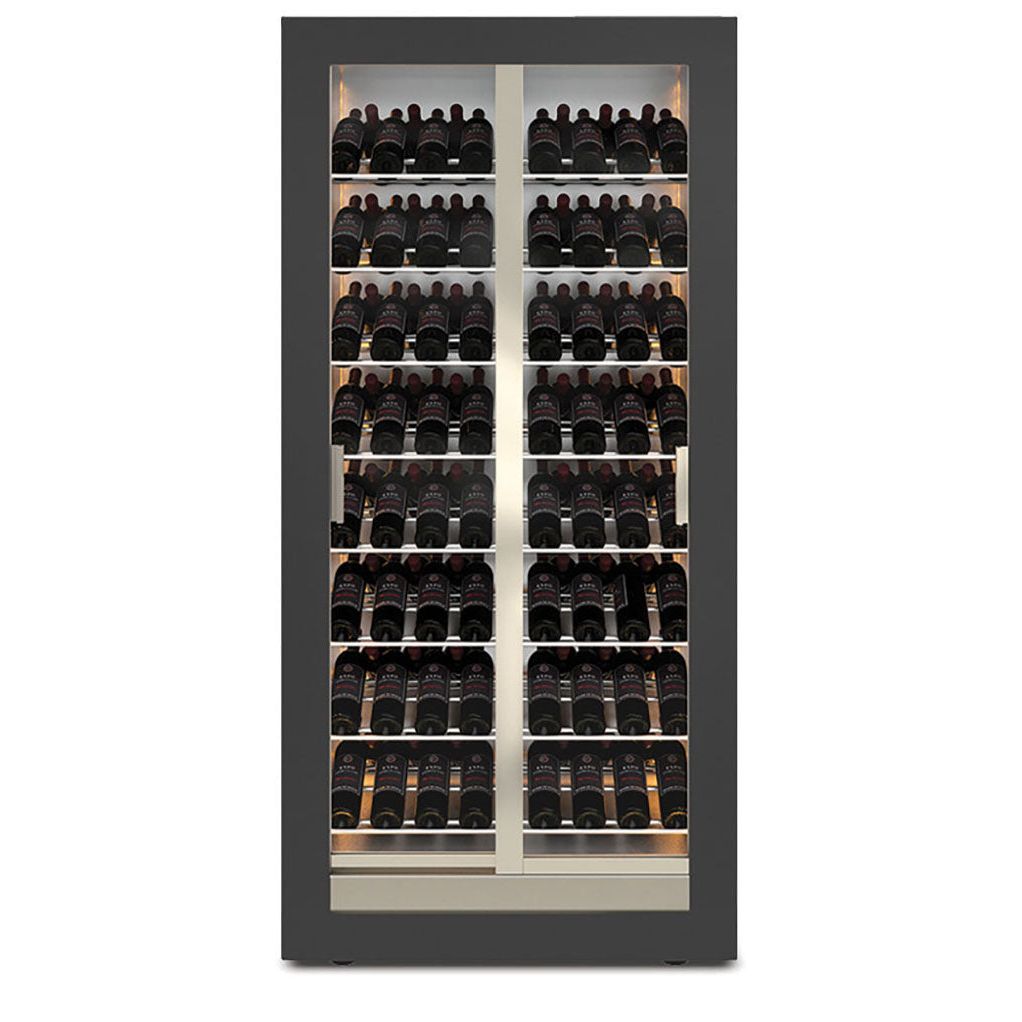

Teca Vino TV12 - Commercial Wine Wall
A full height freestanding wine wall designed to display your collection in style.  The Teca Vino TV12 has two options available with varying display options to choose from, this model is from the Professional range which means it is suitable only for commercial settings like hotels, bars, restaurants or even wine merchants.  The Teca Vino has a full aluminium structure which can be covered with numerous different styles of wood but as standard is offered with a solid wood black frame to complete the look.

The new innovative cooling system ensures reliability whilst making your collection of wine look like a real feature.  The wine wall has four glass sides which gives your wines as much visibility as possible to the customer.

Interior and Exterior
The interior is manufactured from aluminium which is lit by white LED lighting strips mounted vertically down the side walls, this creates a real show piece and displays the wine inside like nothing else on the market.  The exterior features sliding doors and two glass side panels which are fully UV treated - the doors are also lockable to ensure your wine is kept safely.

The shelves in the TV-12 wine wall are designed to display the wine bottles in a position that tilts the bottles forward to display the labels as seen in the photos.

TV12 options

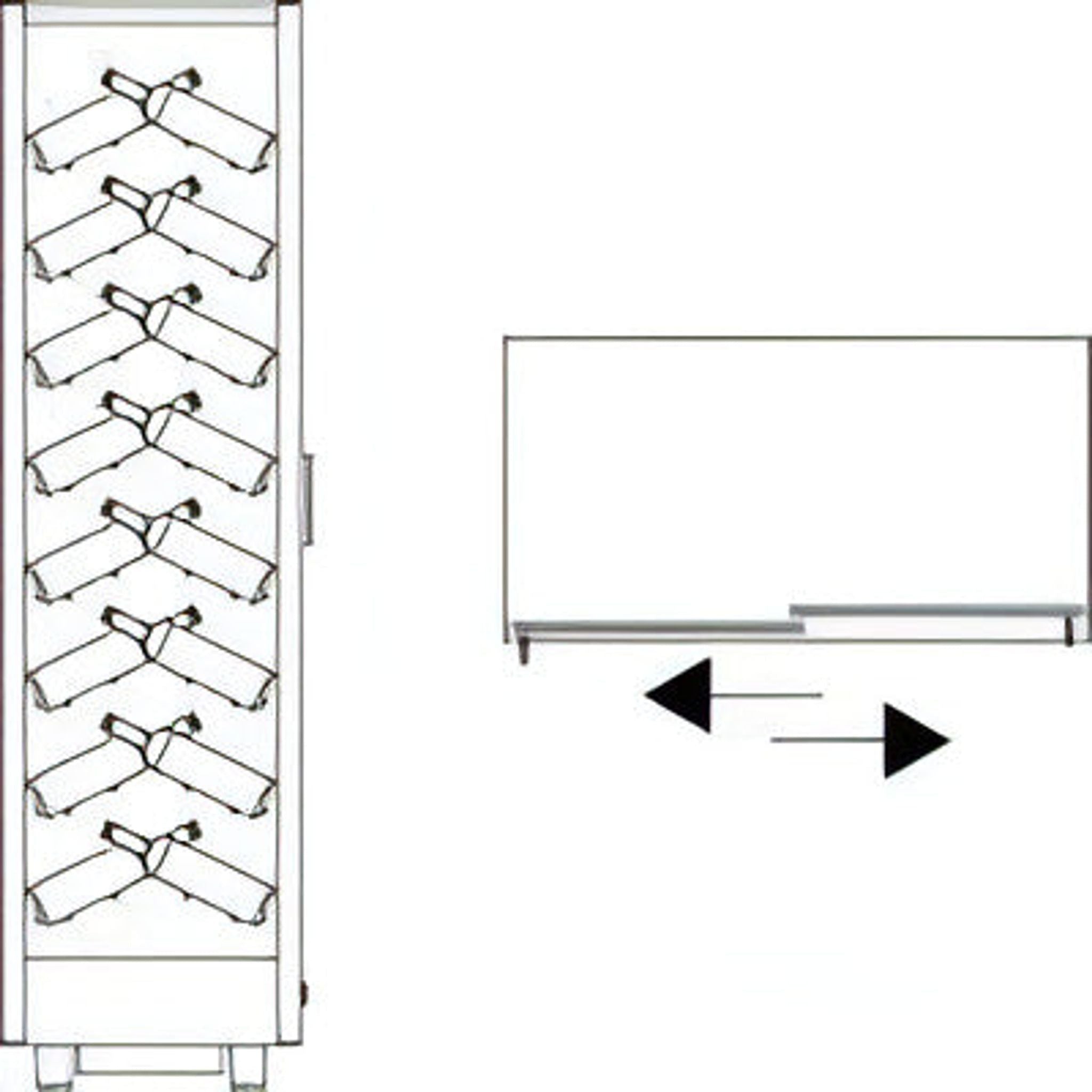

TV-M12: 112 Bottle capacity, white LED lighting, 47 dB operation, solid back wall with 2 sliding doors and lock

Dimensions: Height: 1893mm  Width: 860mm  Depth: 530mm

Weight: 107kg

TV-M12 specification

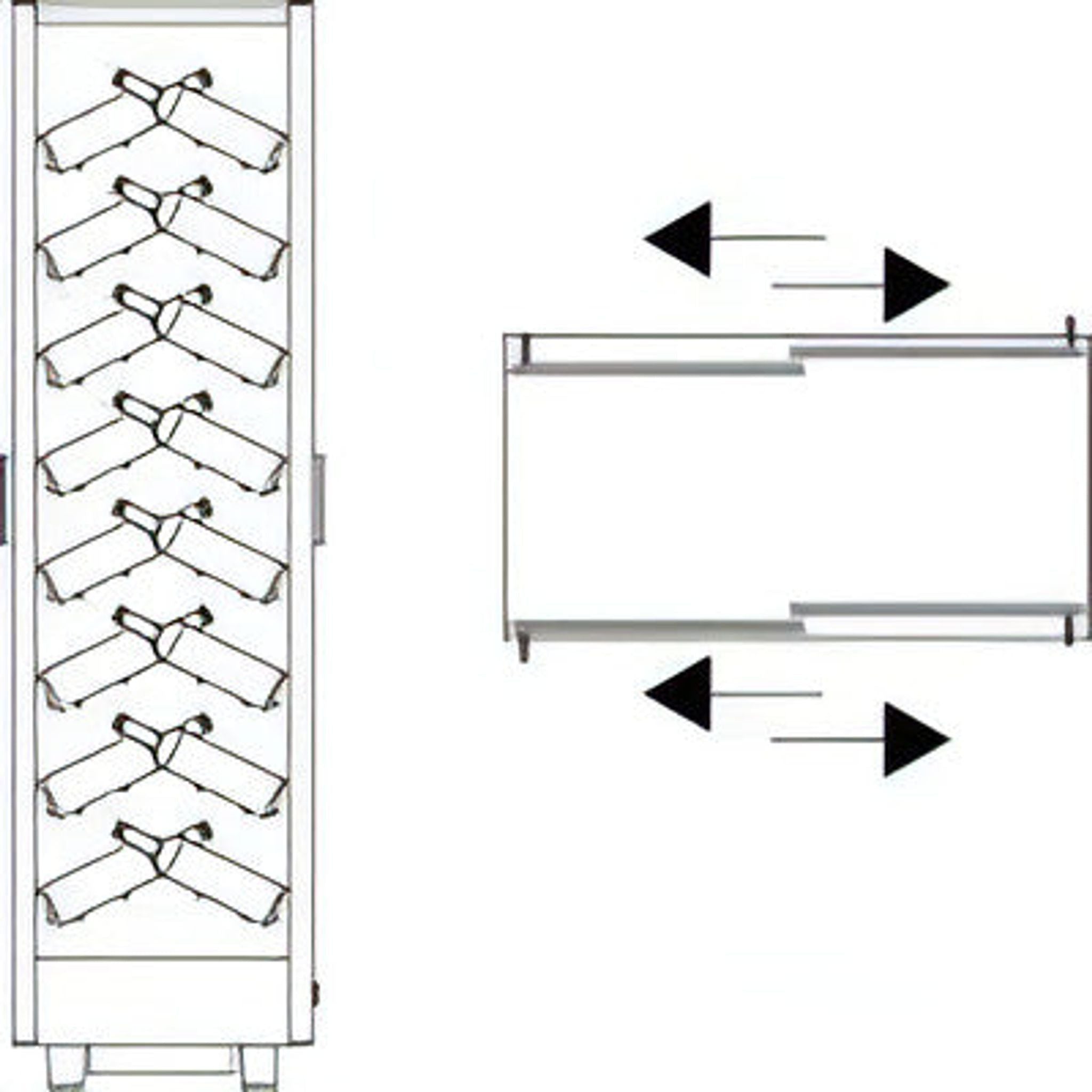

TV-C12: 112 Bottle capacity, white LED lighting, 47 dB operation, 4 sliding doors - 360 degree view of wine bottles

Dimensions: Height: 1893mm  Width: 860mm  Depth: 530mm

Weight: 120kg

TV-C12 specification


Temperature Control
The Teca Vino wine walls are multi temperature zone units and have a multitude of temperature options depending on whether the fans are turned on or off and the temperature the cabinet is set to.

The temperature can be set using a digital control panel which also controls the lighting, fans and defrost cycle.

Example temperature operation, if set to 4°C:

Fans off - the wine wall will operate between 4°C at the bottom and 16°C at the top.

Fans on - the wine wall will operate between 4°C at the bottom and 10°C at the top.

TECA VINO temp range

The use of the fans creates a smaller temperature range as the cooler air can be distributed more evenly.  Please note these are examples only and the actual temperature range may differ depending on ambient temperatures.



- Automatic Defrost

- Heating function with heated rails

- Anti vibration system

- Inverter compressor

- Lock with key

- Ventilated cooling system - fan assisted

- Maximum bottle height is 400mm

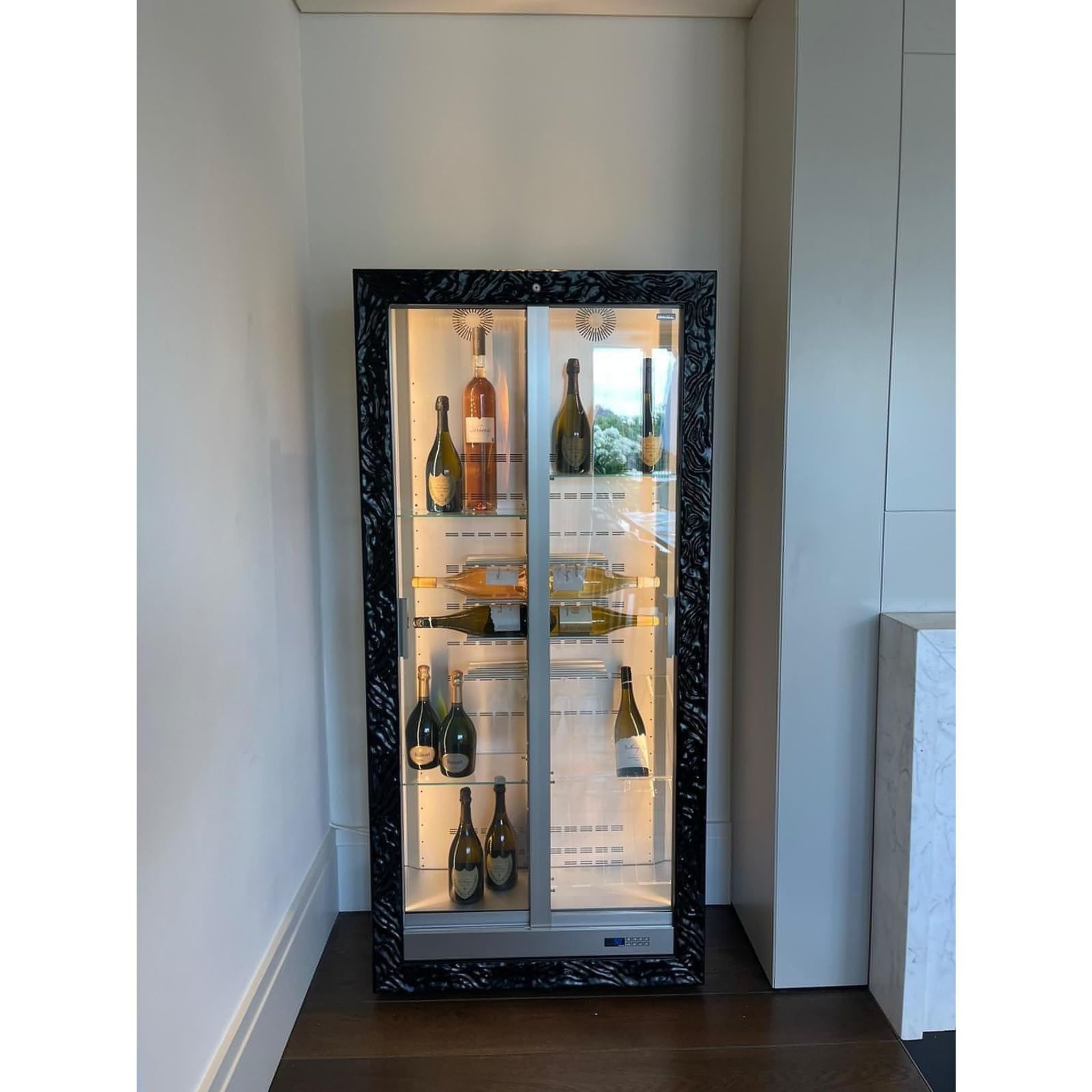

Cabinet finish
The standard cabinet finish is aluminium with a black solid wood frame, this can be exchanged for other options including white, dune - gold, dune - pearl white, dune - black, dune - white.  To find out more, visit the configurator herePlease contact us to discuss these options - we will be more than happy to assist.

Delivery is usually within 6 weeks, the Teca Vino cabinets are manufactured to order to your specification and are completely bespoke item.  Our delivery service includes to the room of choice, unpack, position and removal of packaging.

Delivery date and lead times will be confirmed once we receive your order.

All deliveries to UK mainland addresses are with a 2 man delivery team, deliveries to Scottish Highlands, Channel Islands, Ireland and Northern Ireland are kerbside only - please contact us to discuss delivery options.


EXPO Europe Logo




*Please note pictures shown may differ from the actual product
