Teca Vino - Built in Wine Wall TEB14 - For Home Use
Teca Vino TEB14 - Domestic Wine Wall

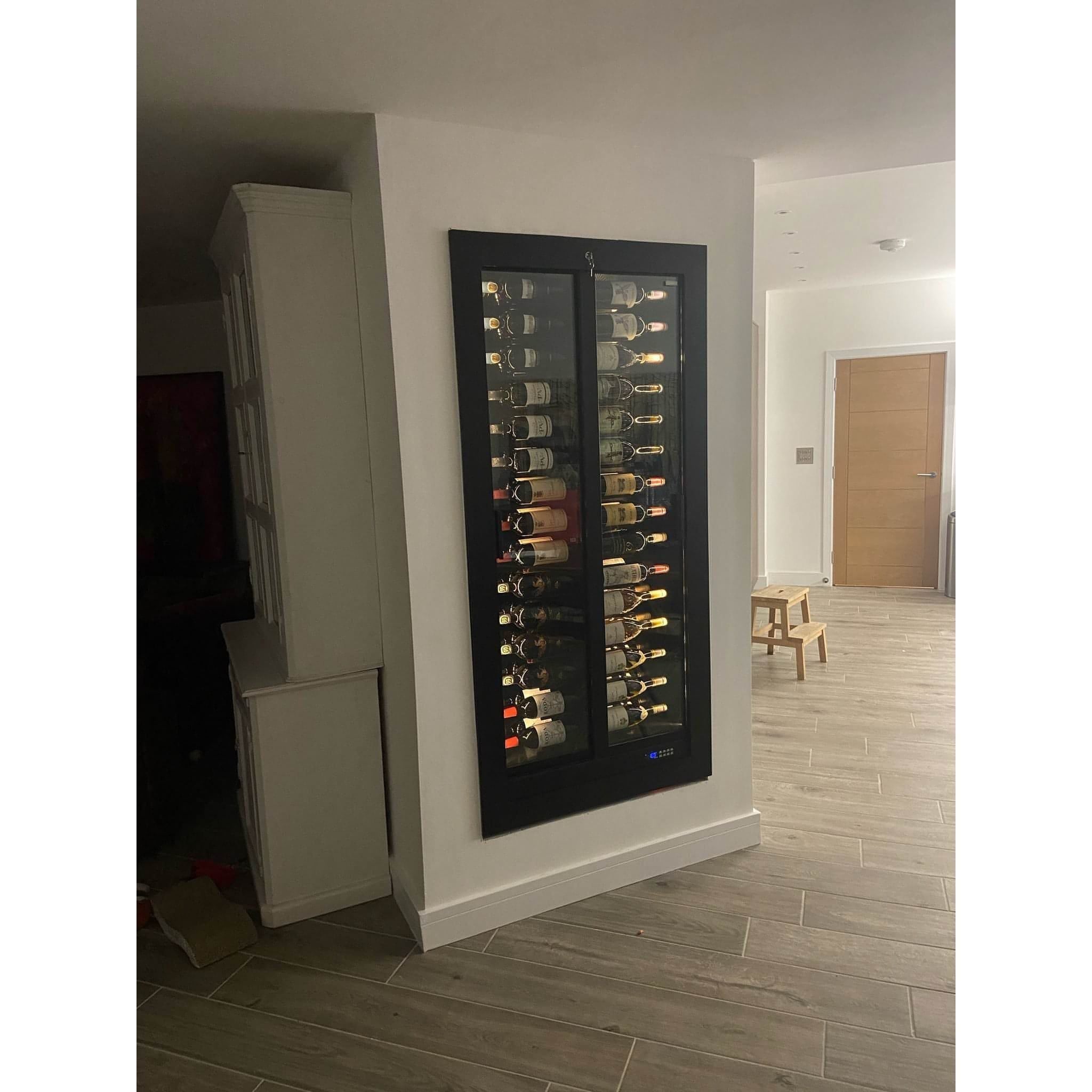

The TEB14 is very similar to the TE-14 except this model is designed to be built into an alcove or cabinets to create a seamless finish. The home range is designed for commercial domestic settings and is suitable for home use. The wine wall has a full aluminium structure which can be manufactured to have different styles of wood/laminate frame attached to the front to create a real feature piece.

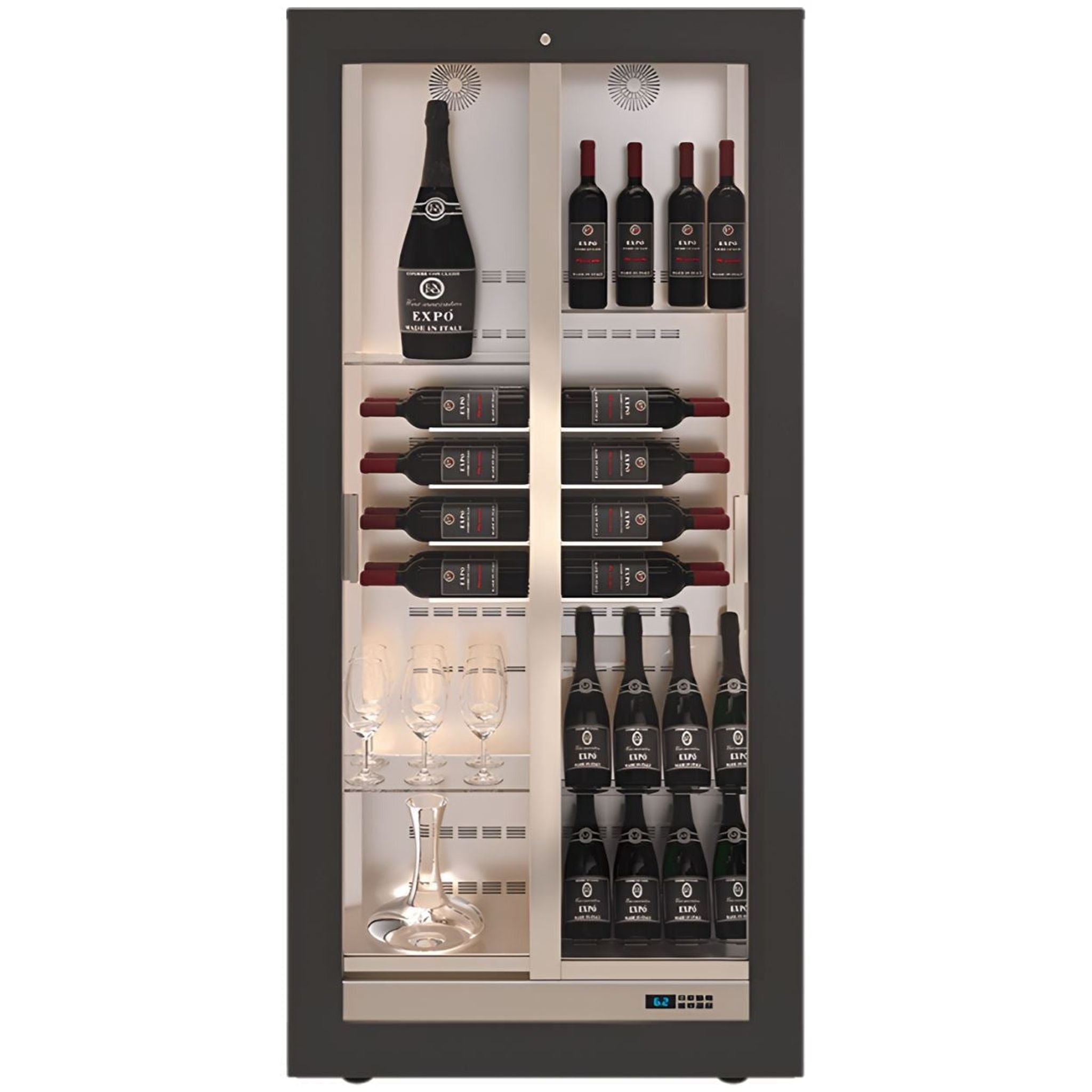

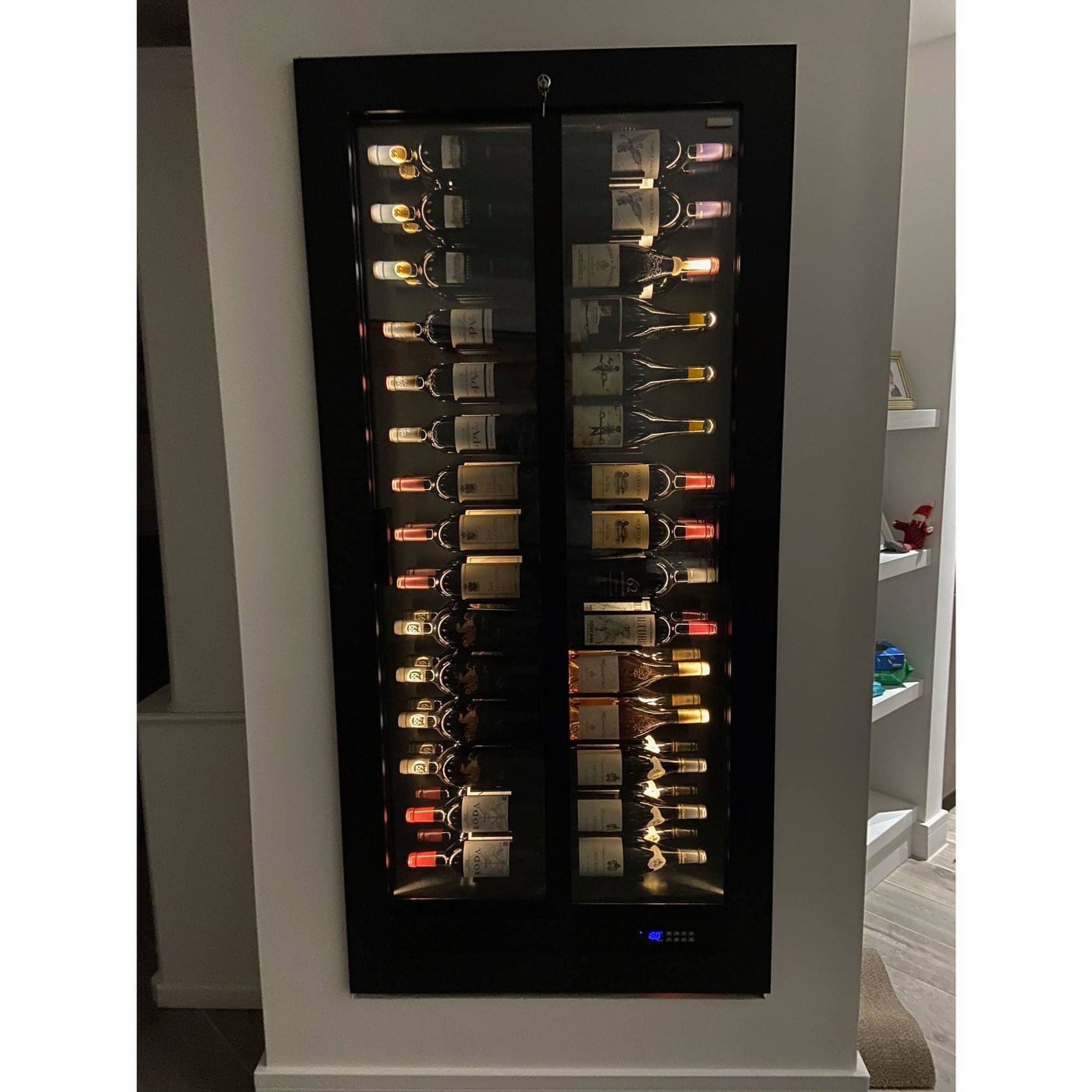

The standard unit above is offered with a solid black (RAL9005) wood frame and shelving configuration as shown in the product photo, however if you wish to change this - please contact us before ordering for a quotation. You can also use the configurator here.
The built in range is one of the newest additions by EXPO with a new and upgraded cooling system which enables the unit to be built in due to how quality components and an inbuilt ventilation system which helps cool the compressor.

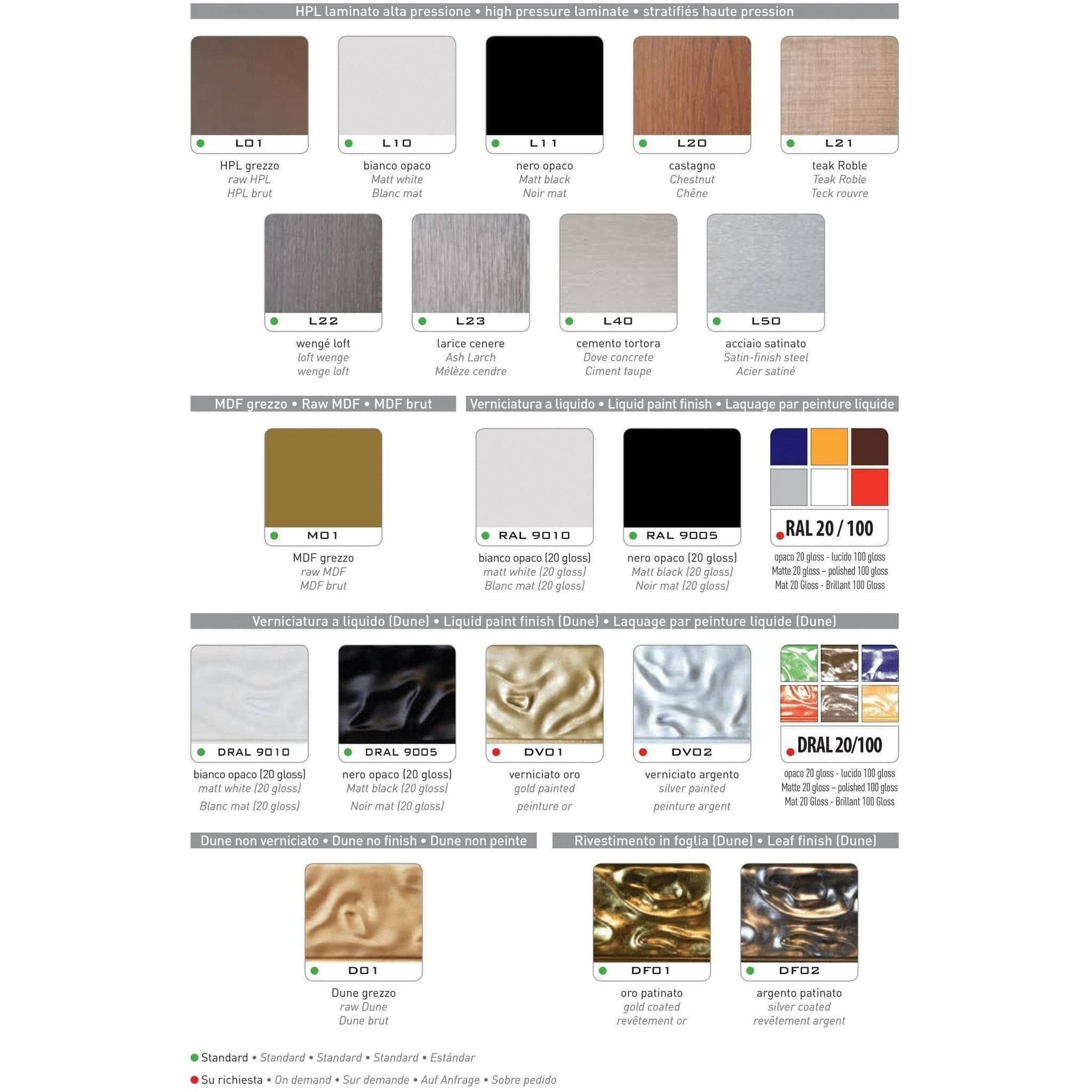

See the catalogue here for the range of frames and colours available.
Interior and Exterior
With a double sliding glass door which are fully UV treated to ensure light does not damage your collection, the TEB-14 is an absolute show piece. The interior is lit with warm white LED lighting and the interior of the cabinet is manufactured from aluminium which ensures a high quality design. All wine walls should protect your wines as well as really show them off, the Built in Teca Vino range also has an automatic defrost system and automatic evaporation system to ensure the correct storage conditions are met - the doors are also lockable.
The shelves in the TE-B14 wine wall gives you multiple options to create a real show piece in your home. These shelves are customizable and requires self assembly.
The Home range has a few extras which includes a low noise compressor to make ensure there is minimal noise output.

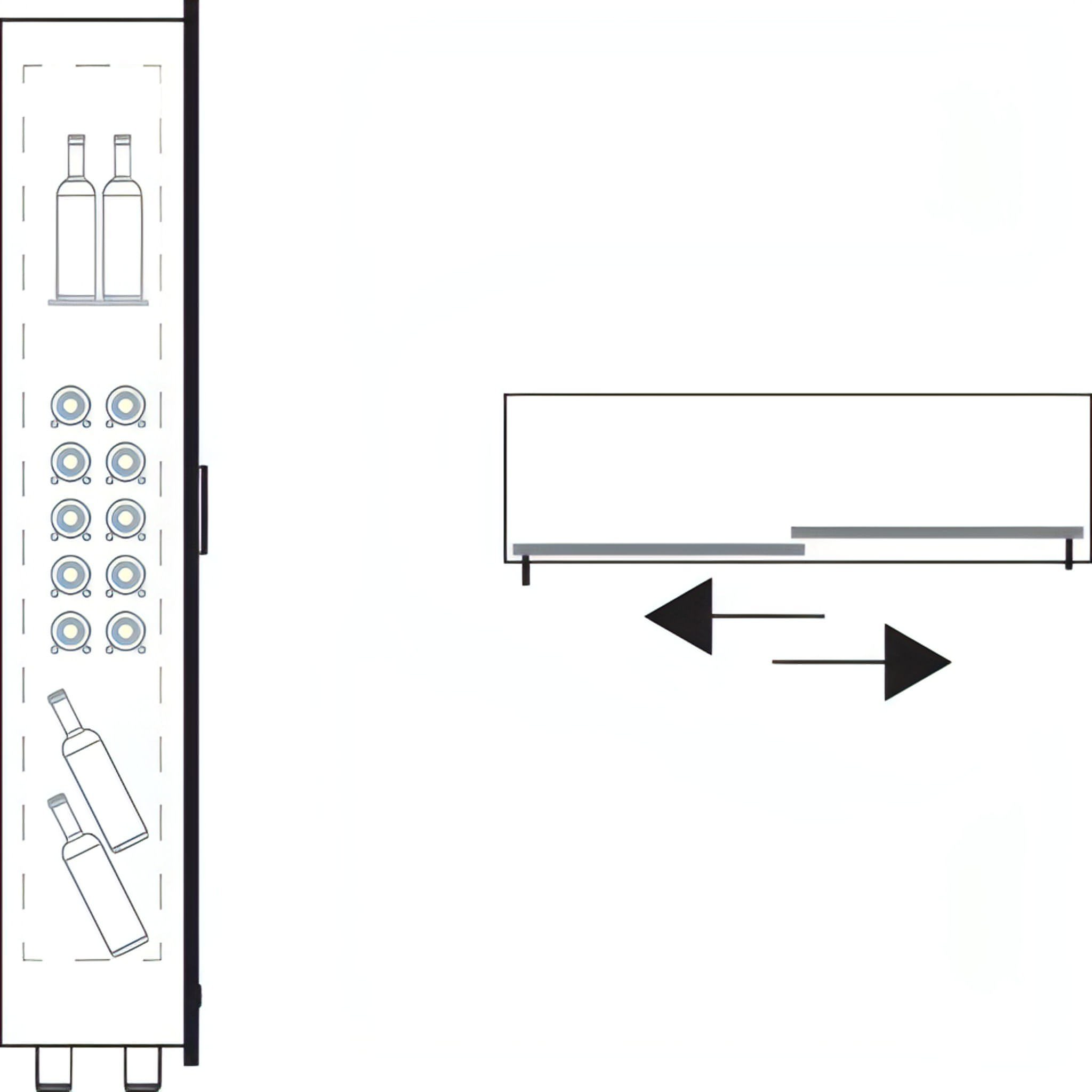

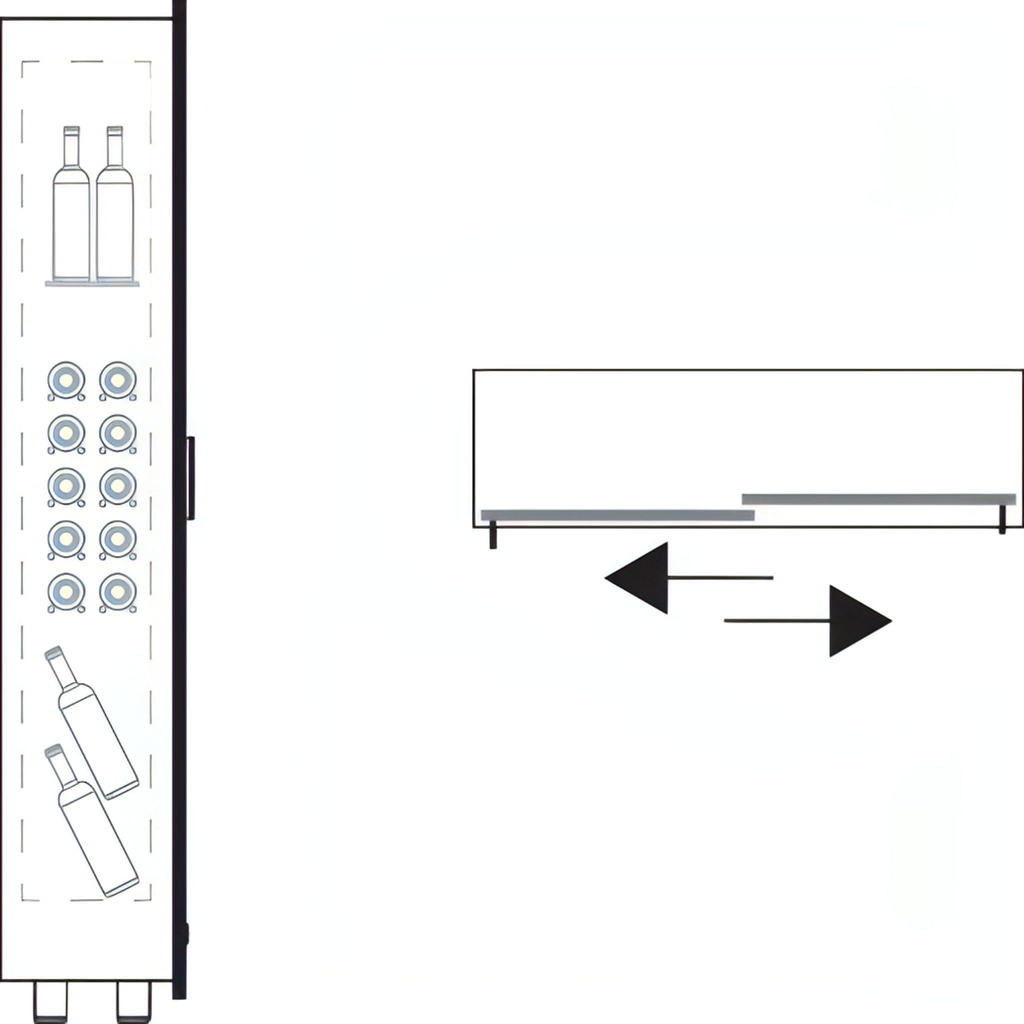

TE-BH14: Warm white LED lighting, 38 dB operation, solid back wall with 2 sliding doors and lock, low noise level compressor - suitable for built in installation
Dimensions: Height: 1862mm Width: 880mm Depth: 358mm

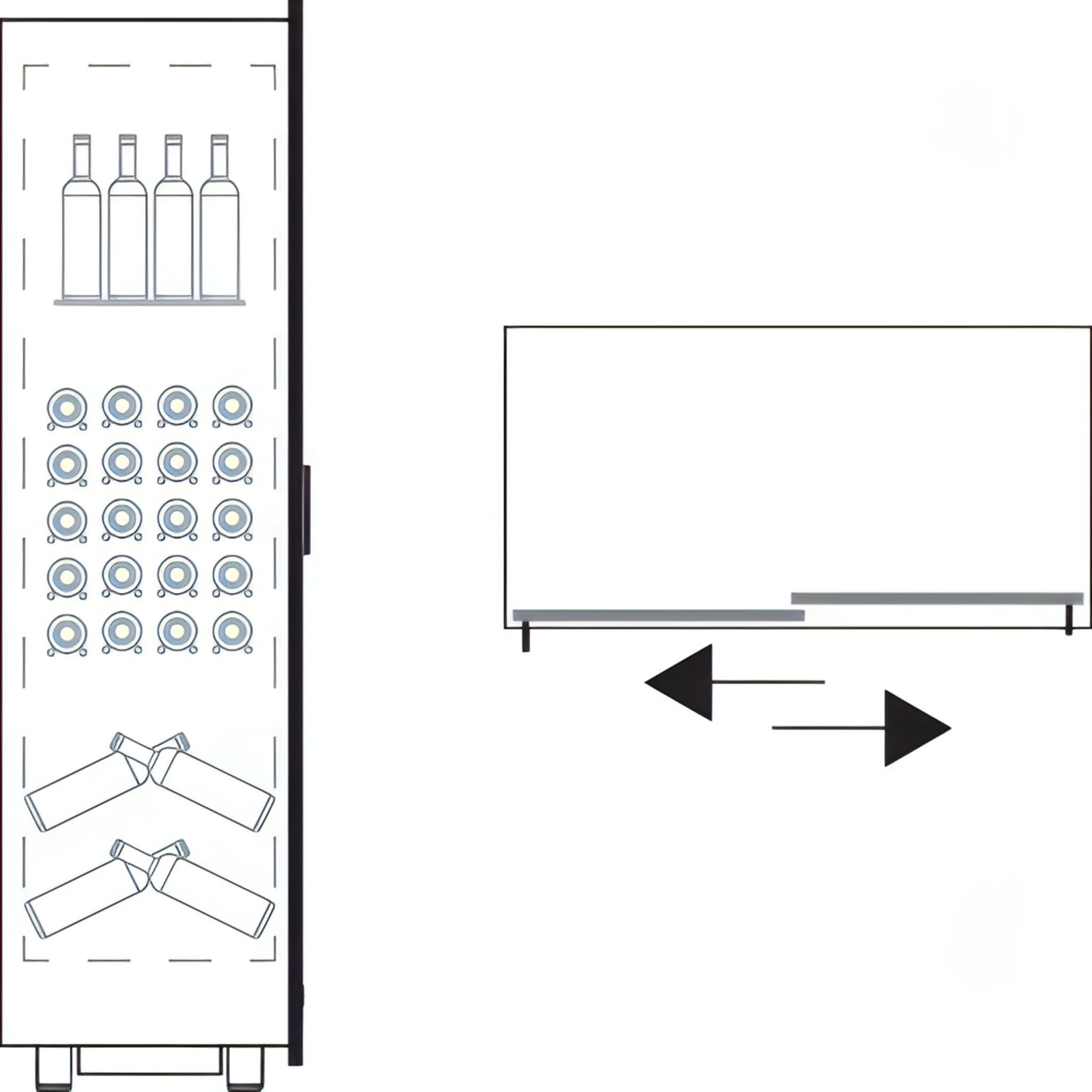

TE-BM14: Warm white LED lighting, 39 dB operation, solid back wall with 2 sliding doors and lock, low noise level compressor - suitable for built in installation
Dimensions: Height: 1901mm Width: 880mm Depth: 530mm
There are certain installation requirements needed to install the built in models correctly, to ensure the units do not over heat it is advised the a gap of 30mm or more is left at the back of the unit - firstly to prevent any unwanted vibrations but also to allow warm air to escape above the wine wall.
The cool air enters the wine wall from the bottom so the gap between the floor and lower part of the wine wall should not be covered - the air flow should be free and unhindered like the image below.
The Teca Vino wine walls are multi temperature zone units and have a multitude of temperature options depending on whether the fans are turned on or off and the temperature the cabinet is set to.
The temperature can be set using a digital control panel which also controls the lighting, fans and defrost cycle.
Example temperature operation, if set to 4°C:
Fans off - the wine wall will operate between 4°C at the bottom and 16°C at the top.
Fans on - the wine wall will operate between 4°C at the bottom and 10°C at the top.
The use of the fans creates a smaller temperature range as the cooler air can be distributed more evenly. Please note these are examples only and the actual temperature range may differ depending on ambient temperatures.
OTHER PRODUCT FEATURES
- Automatic Defrost
- Heating function with heated rails
- Anti vibration system
- Inverter compressor
- Lock with key
- Ventilated cooling system - fan assisted
- Warranty: 1 year parts and labour UK mainland and NI
- ROI warranty: 1 year parts only

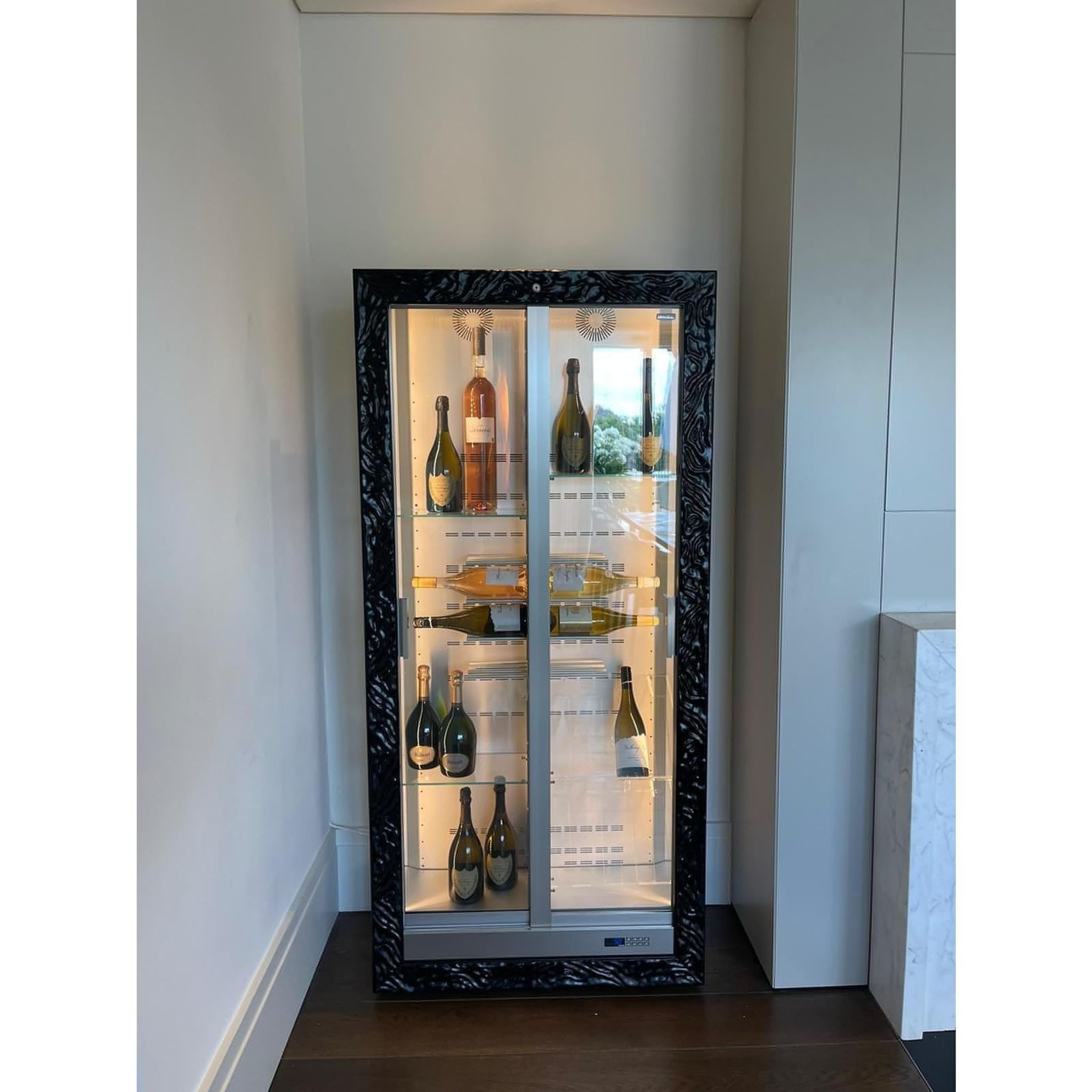

The standard cabinet finish is aluminium with a black (RAL9005) solid wood frame, this can be exchanged for other options including white (RAL9010), dune - gold, dune - pearl white, dune - black, dune - white (additional cost apply on certain colours). To find out more, visit the configurator here. Please contact us to discuss these options - we will be more than happy to assist.
*Pictures shown may differ to exact product
