Teca Vino TBV12 - Commercial Wine Wall
The TBV12 is very similar to the TV-12 except this model is designed to be built into an alcove or cabinets to create a seamless finish. The professional range is designed purely for commercial settings such as bars, hotels, restaurants and has a full aluminium structure which can be manufactured to have different styles of wood attached to the front to create a real feature piece. The standard unit above is offered with a solid black wood frame however if you wish to change this - please contact us before ordering or use the configurator here.
The built in range is one of the newest additions by EXPO with a new and upgraded cooling system which enables the unit to be built in due to how quality components and an inbuilt ventilation system which helps cool the compressor.
Interior and Exterior
With a double sliding glass door which are fully UV treated to ensure light does not damage your collection, the TBV-12 is an absolute show piece. The interior is lit with white LED lighting and the interior of the cabinet is manufactured from aluminium which ensures a high quality design. All wine walls should protect your wines as well as really show them off, the Built in Teca Vino range also has an automatic defrost system and automatic evaporation system to ensure the correct storage conditions are met - the doors are also lockable.
The shelves in the TBV-12 wine wall are designed to display the wine bottles horizontally as seen in the photos.

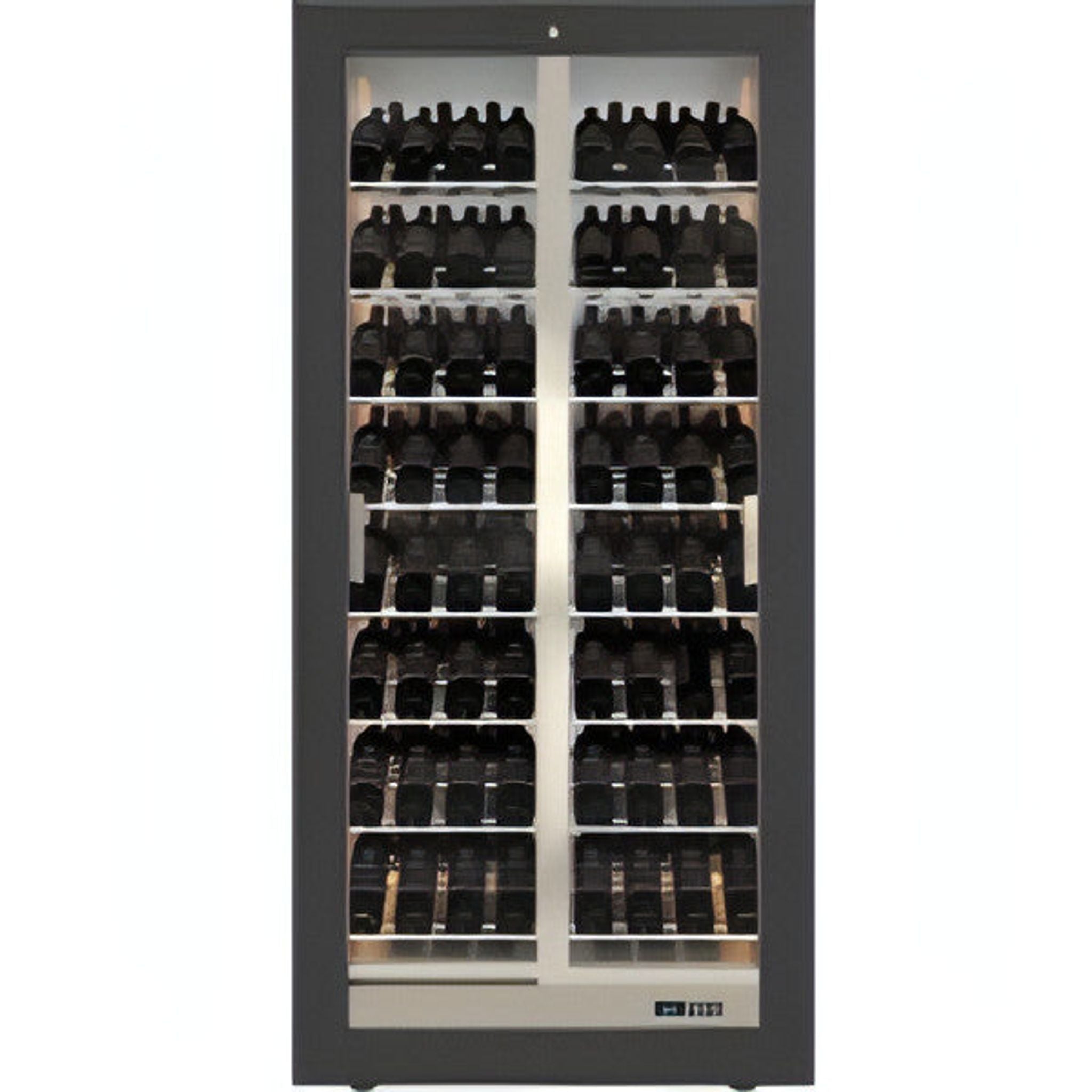

TBV-M12: 112 Bottle capacity, white LED lighting, 47 dB operation, solid back wall with 2 sliding doors and lock - suitable for built in installation
Dimensions: Height: 1901mm Width: 880mm Depth: 530mm
There are certain installation requirements needed to install the built in models correctly, to ensure the units do not over heat it is advised the a gap of 30mm or more is left at the back of the unit - firstly to prevent any unwanted vibrations but also to allow warm air to escape above the wine wall.
The cool air enters the wine wall from the bottom so the gap between the floor and lower part of the wine wall should not be covered - the air flow should be free and unhindered like the image below.
The Teca Vino wine walls are multi temperature zone units and have a multitude of temperature options depending on whether the fans are turned on or off and the temperature the cabinet is set to.
The temperature can be set using a digital control panel which also controls the lighting, fans and defrost cycle.
Example temperature operation, if set to 4°C:
Fans off - the wine wall will operate between 4°C at the bottom and 16°C at the top.
Fans on - the wine wall will operate between 4°C at the bottom and 10°C at the top.
The use of the fans creates a smaller temperature range as the cooler air can be distributed more evenly. Please note these are examples only and the actual temperature range may differ depending on ambient temperatures.
OTHER PRODUCT FEATURES
- Automatic Defrost
- Heating function with heated rails
- Anti vibration system
- Inverter compressor
- Lock with key
- Ventilated cooling system - fan assisted
- Maximum bottle height is 400mm

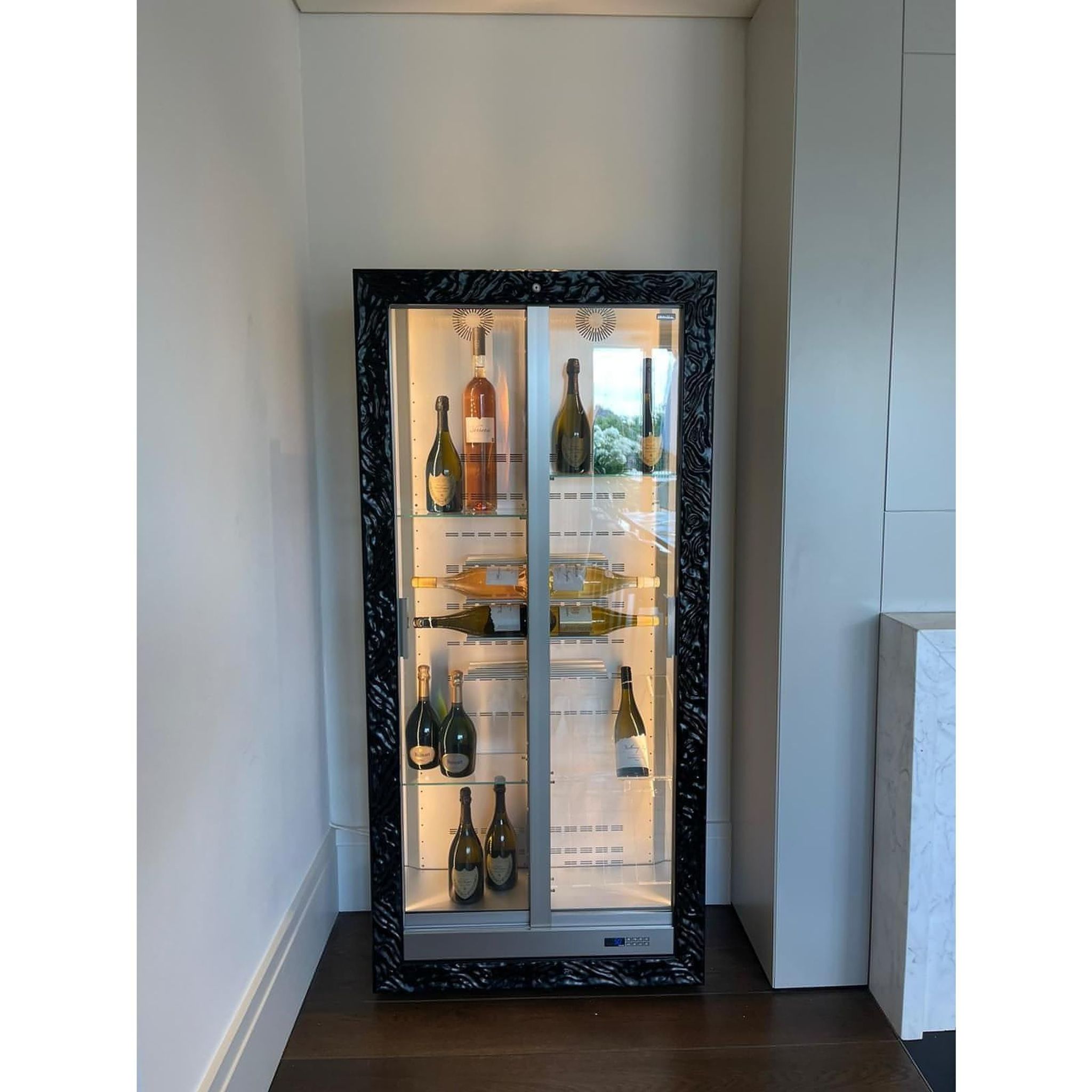

The standard cabinet finish is aluminium with a black solid wood frame, this can be exchanged for other options including white, dune - gold, dune - pearl white, dune - black, dune - white. To find out more, visit the configurator here. Please contact us to discuss these options - we will be more than happy to assist.
Delivery is usually within 6 weeks, the Teca Vino cabinets are manufactured to order to your specification and are completely bespoke item. Our delivery service includes to the room of choice, unpack, position and removal of packaging.
Delivery date and lead times will be confirmed once we receive your order.
All deliveries to UK mainland addresses are with a 2 man delivery team, deliveries to Scottish Highlands, Channel Islands, Ireland and Northern Ireland are kerbside only - please contact us to discuss delivery options.

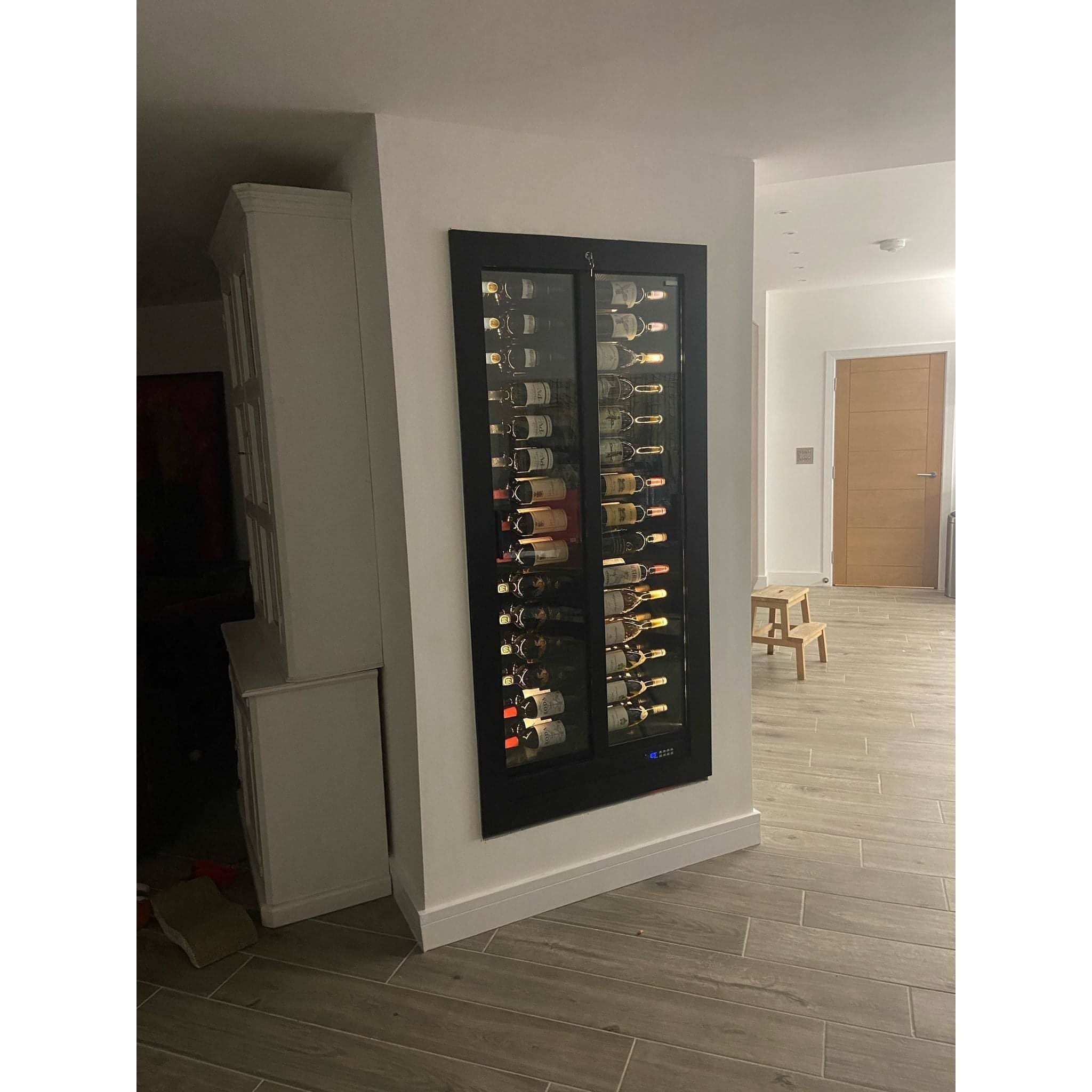

*Pictures shown are from the Built in range but may not be the same unit.
