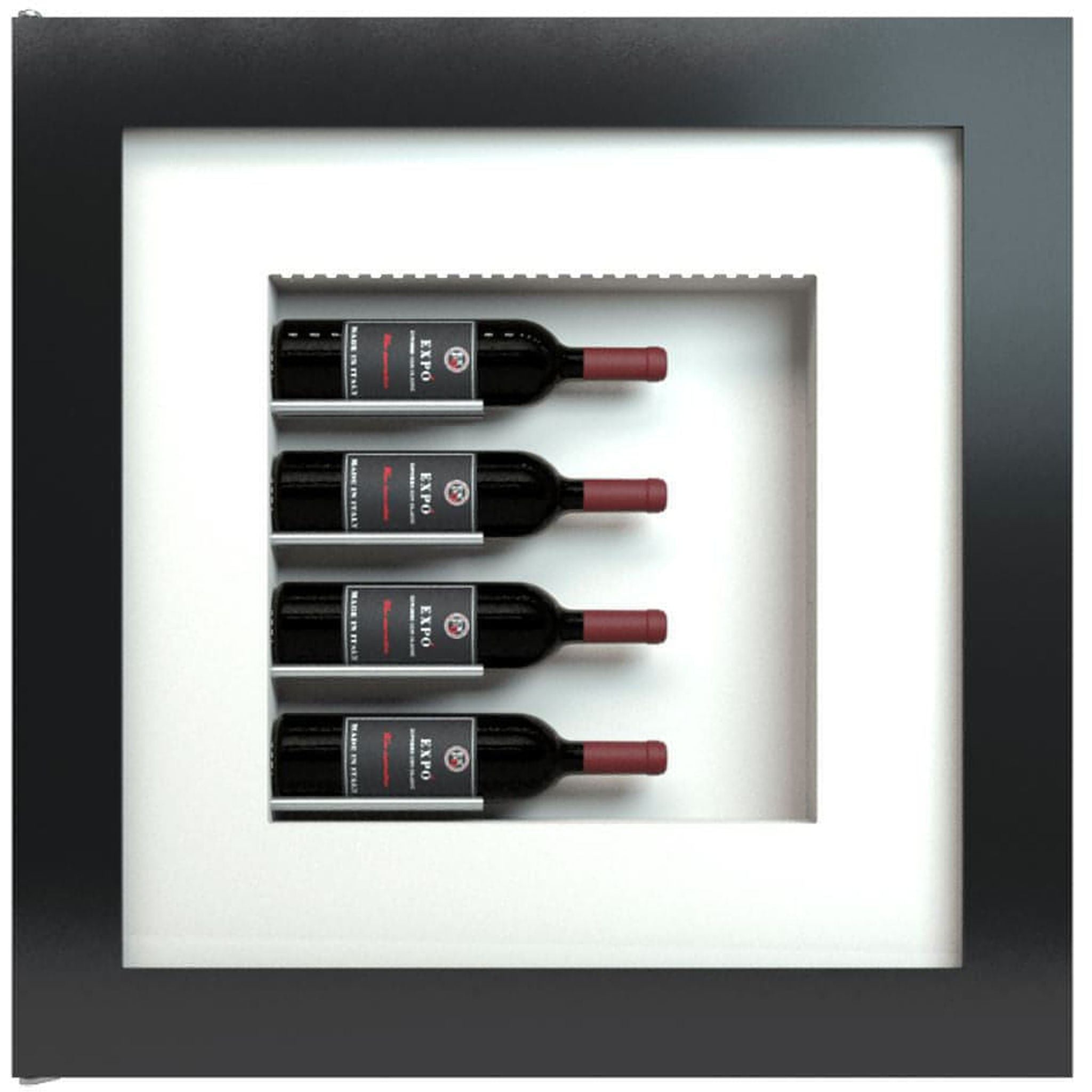

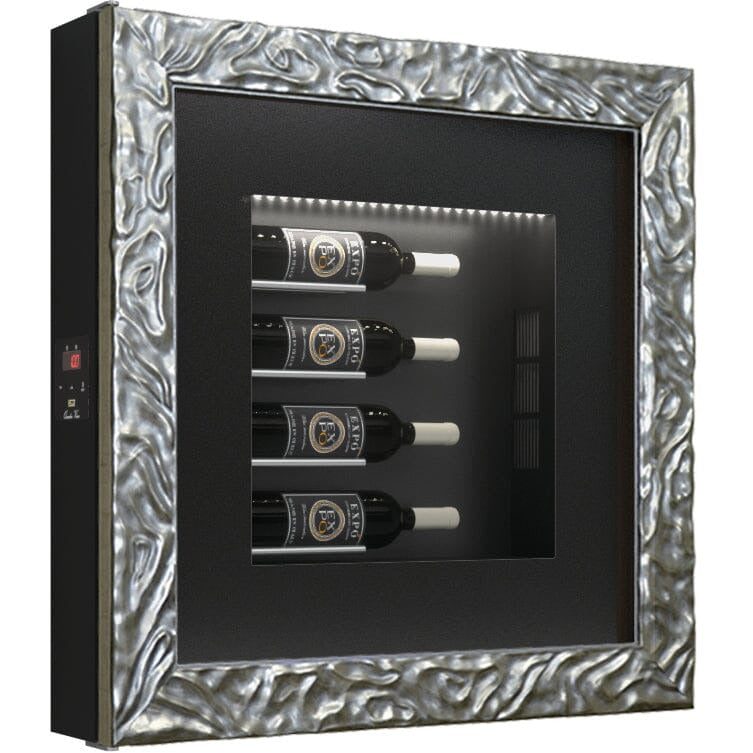

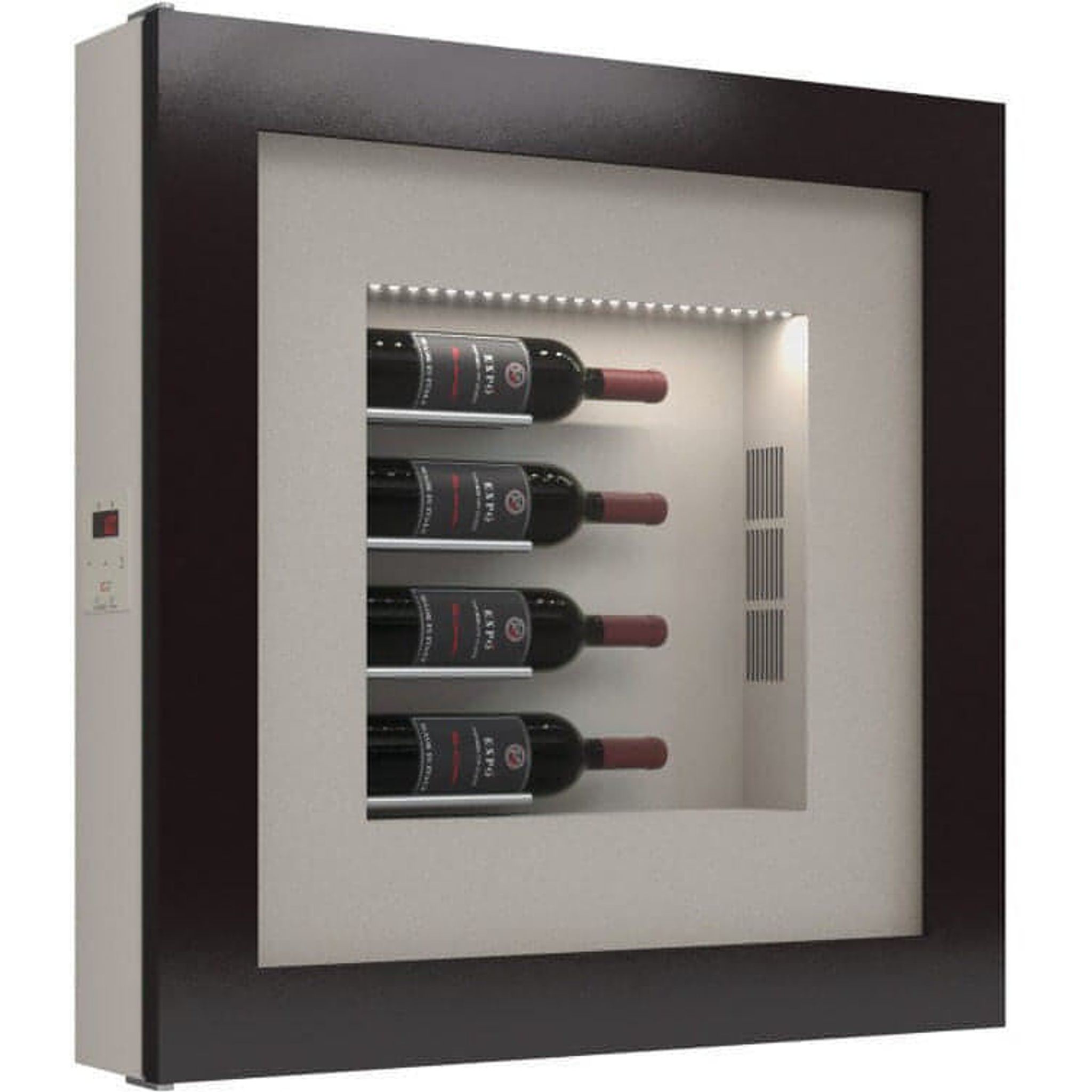

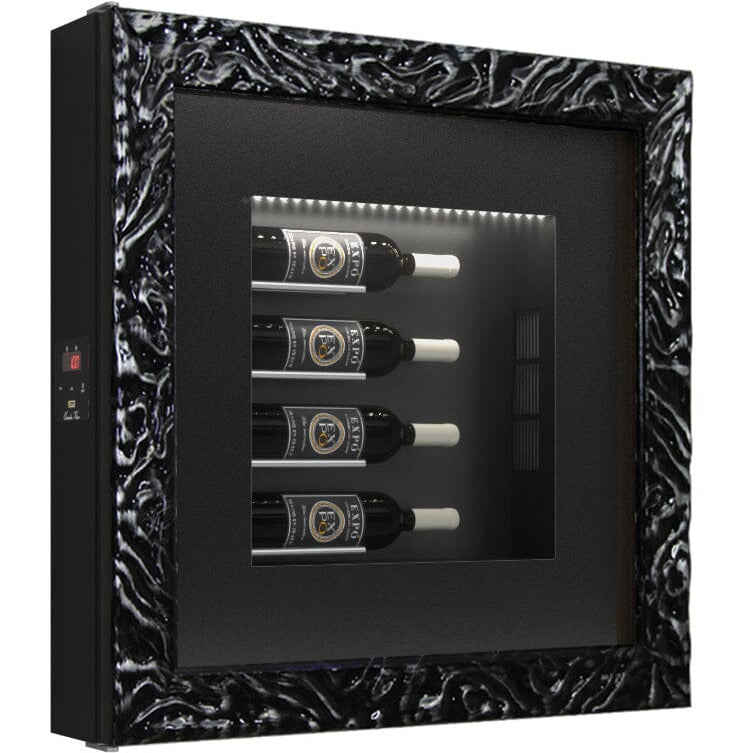

Quadro Vino - Wine Wall QV40 - 4 Bottle Display Unit



  • Wall Mountable
  • White / Blue LED lighting
  • Space for 4 bottles
  • 1 year warranty
  • Dimensions: Height: 78cm, Width: 78cm, Depth: 15.5cm

Quadro Vino - Wine Wall QV40 - 4 Bottle frame

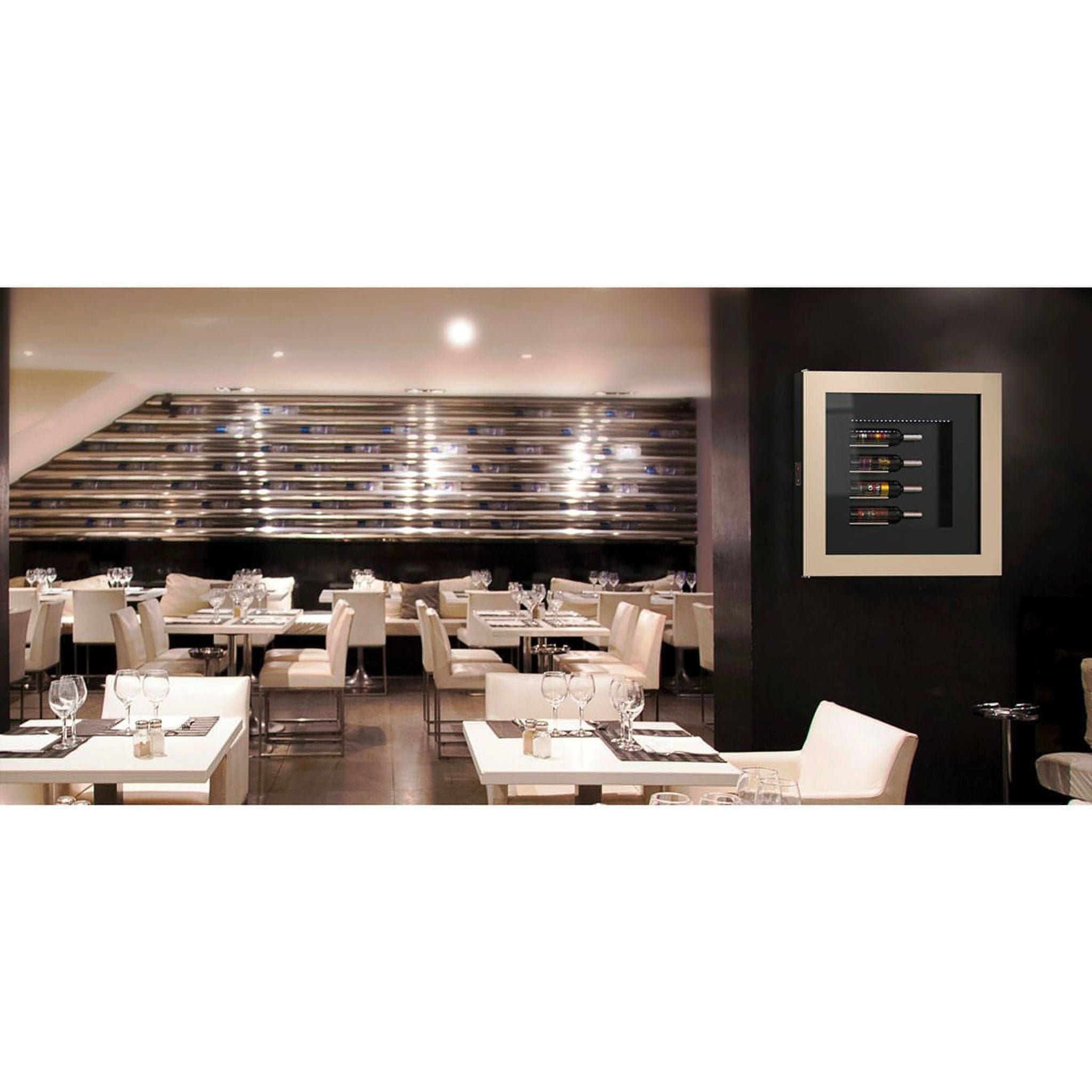

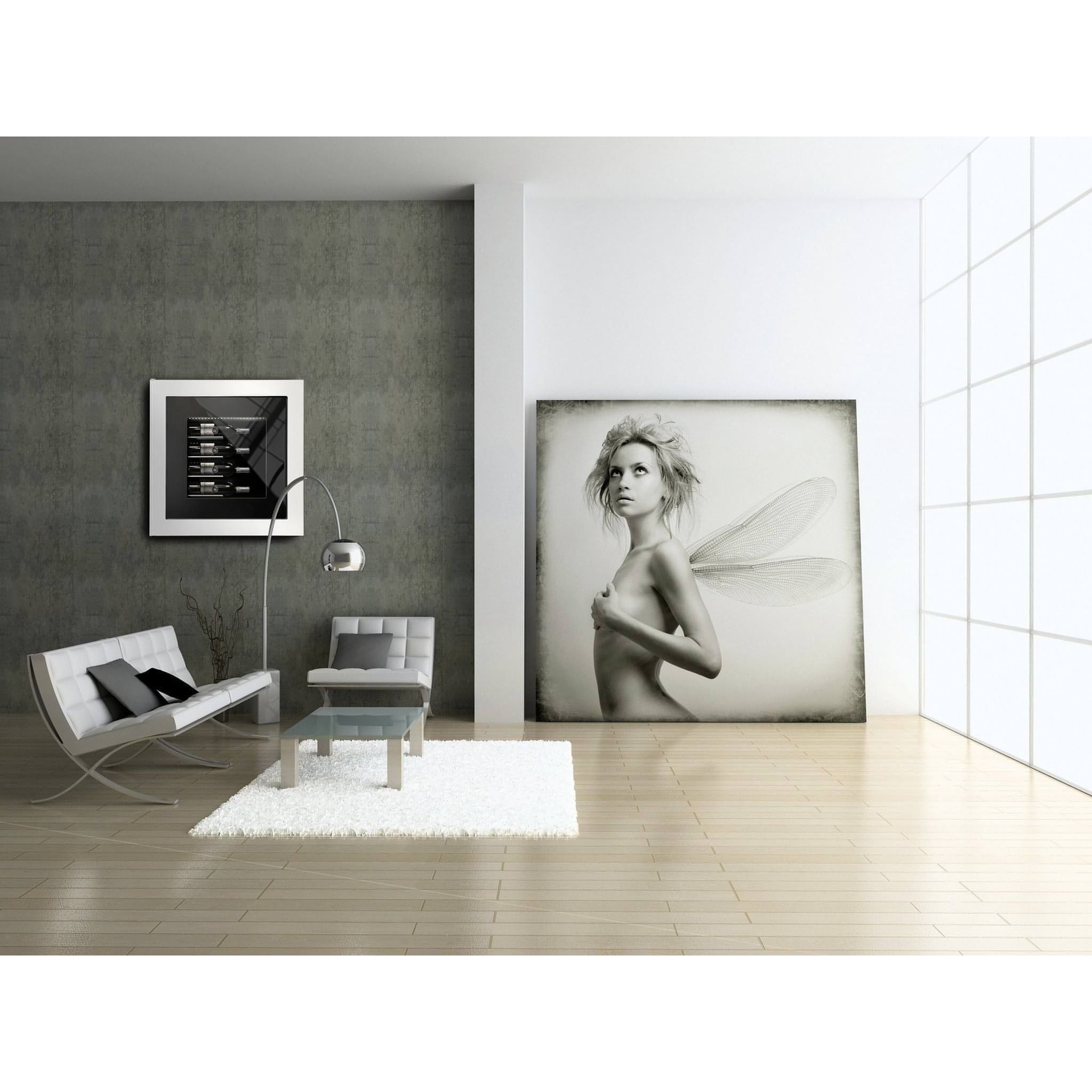

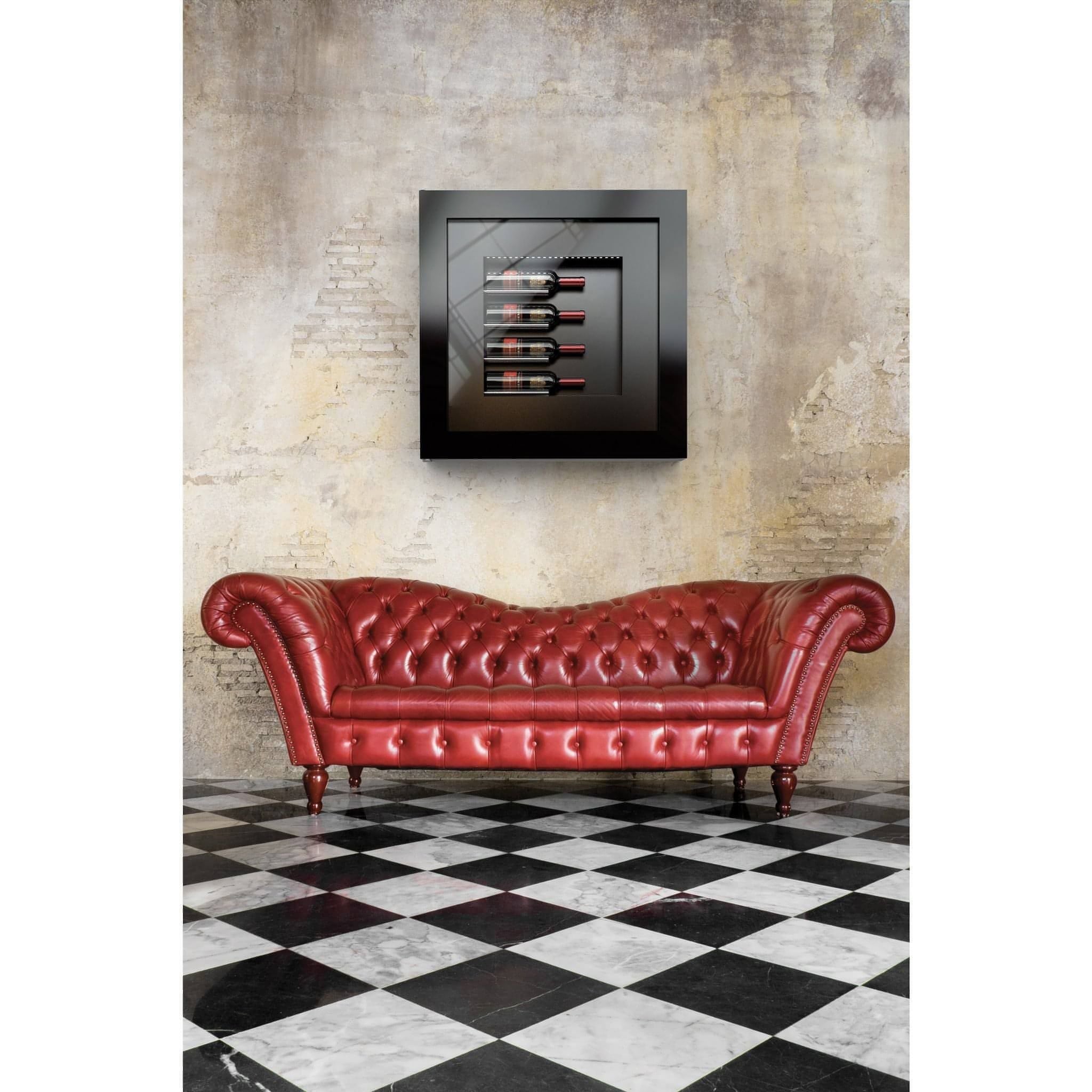

The Quadro Vino is a new and exciting product to Elite Wine Refrigeration and one we are proud to add to our collection of wine storage units.  The Quadro Vino is in essence a refrigerated picture frame which is designed to hang on a flat wall.  With its appealing aesthetics and wow factor, the Quadra Vino is a great addition to any restaurant, hotel or even as a gift for a family member - the Quadro Vino is not limited to commercial settings.

The QV40 has space for four bottles of wine which are displayed horizontally on aluminium arms which support the bottles from the underside.  The interior is lit by white LED lighting which can be turned on or off depending on the setting.

Quadra vino

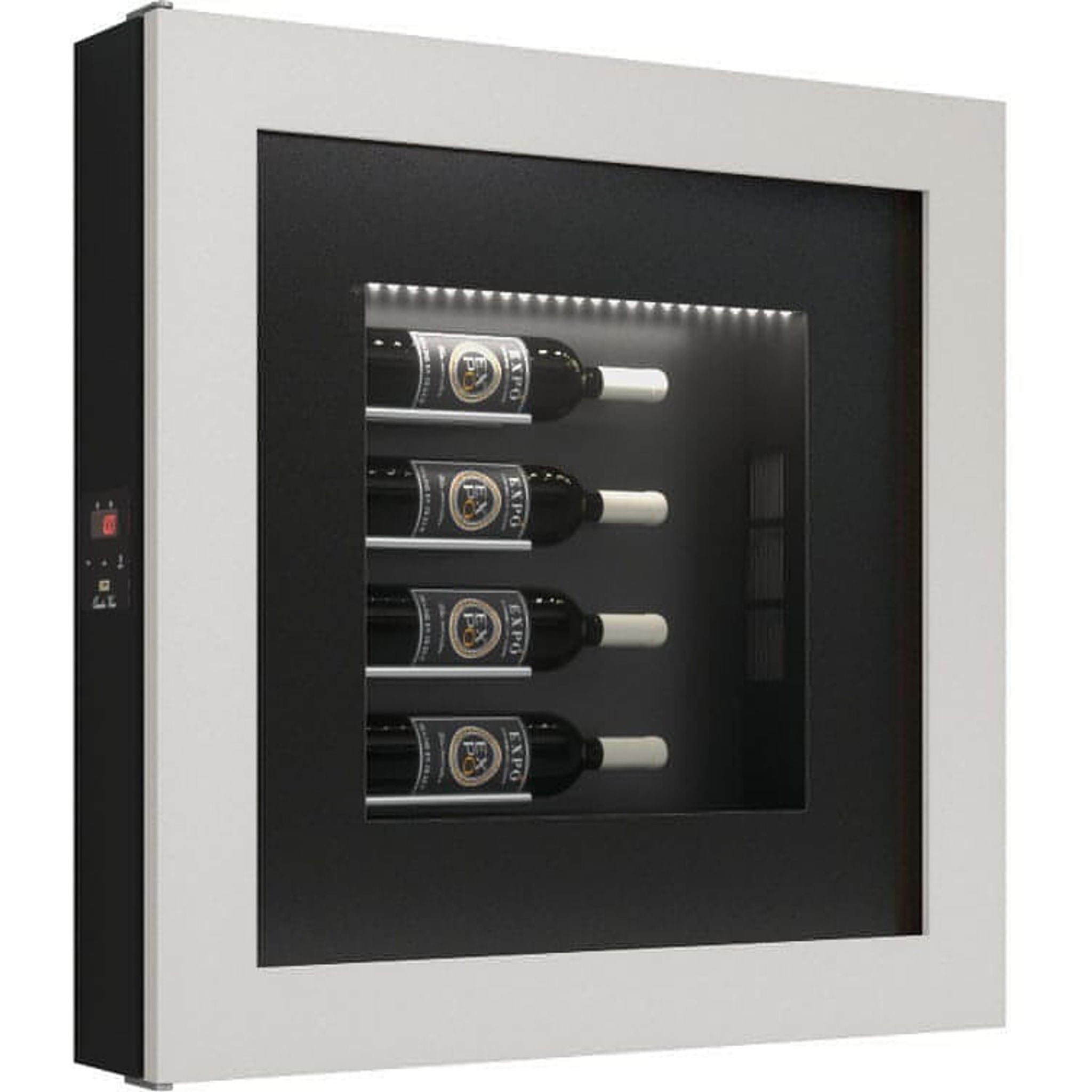

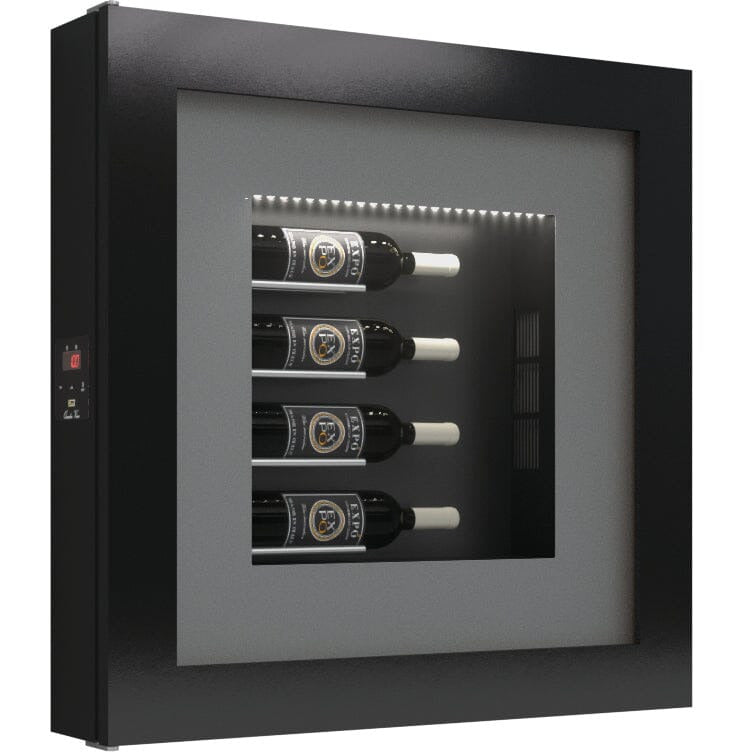

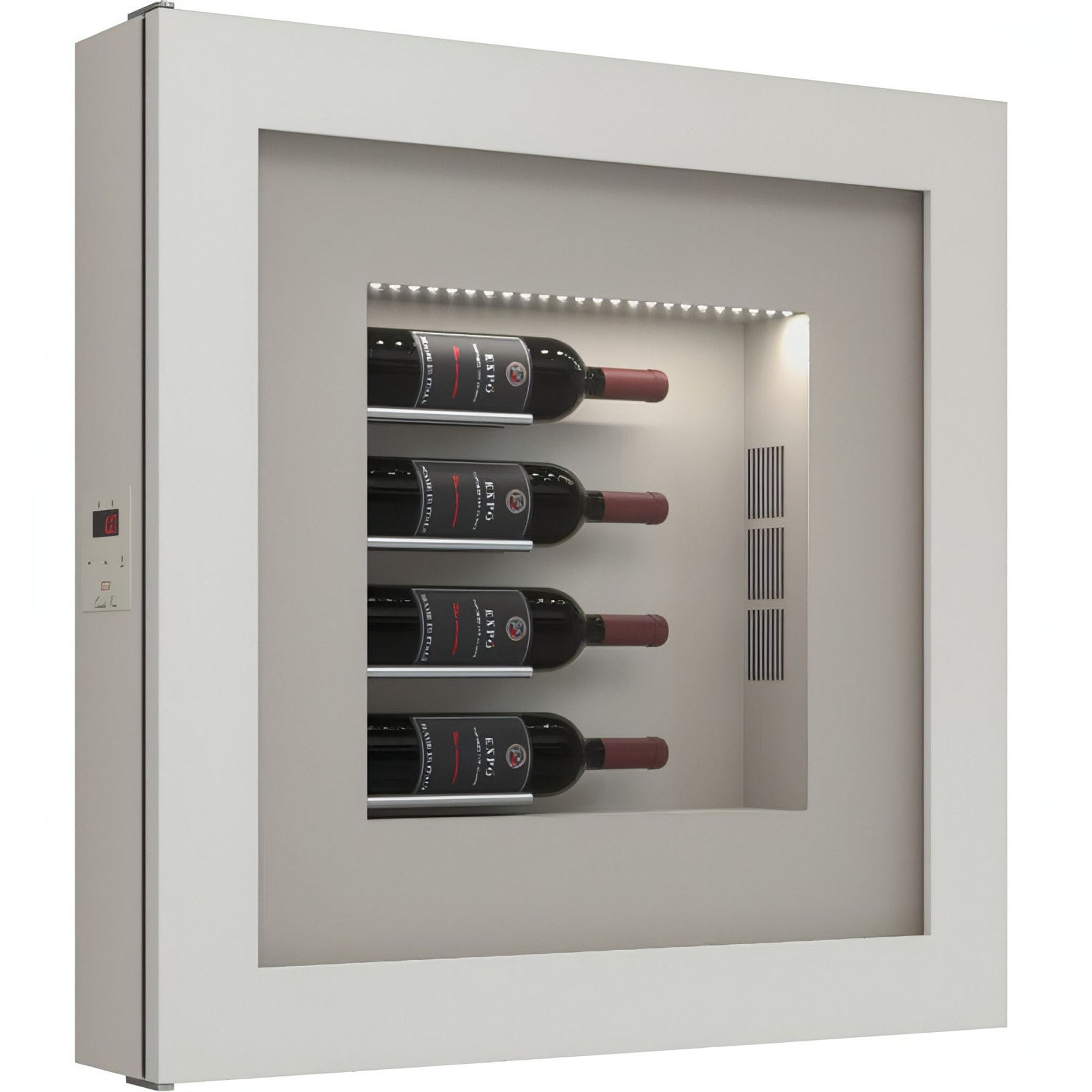

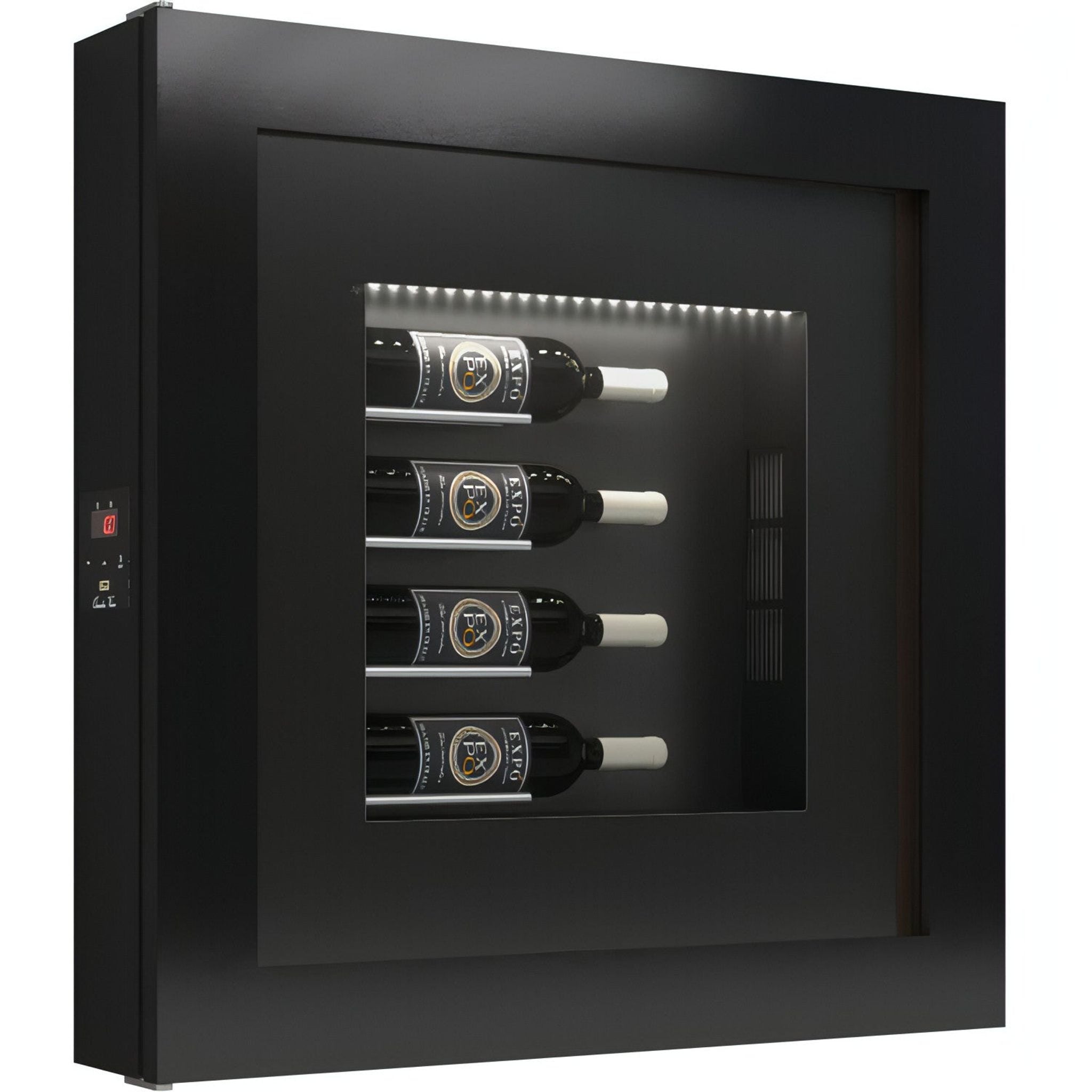

1. Structure: White (B) or Black (N)

2. Frame

3. Panel

Use the configurator to design your very own wine wall.

The colour codes shown above or from page. 25 onwards in the catalogue refer to the drop down options.


The door is a double glazed left hinged door that swings open to allow full access to your bottles of wine.
You can choose from either blue or white LED lighting, as standard we offer white lighting with all orders so if you would like to change this to blue - please contact us before ordering.

The Quadro Vino 40 cools via a thermoelectric cell which has an operating temperature of 10 to 20°C , depending on the ambient temperature.  The recommended ambient temperature is 25°C for this model.  From the diagram below you can see how the ambient temperature affects the QV40's internal temperature.

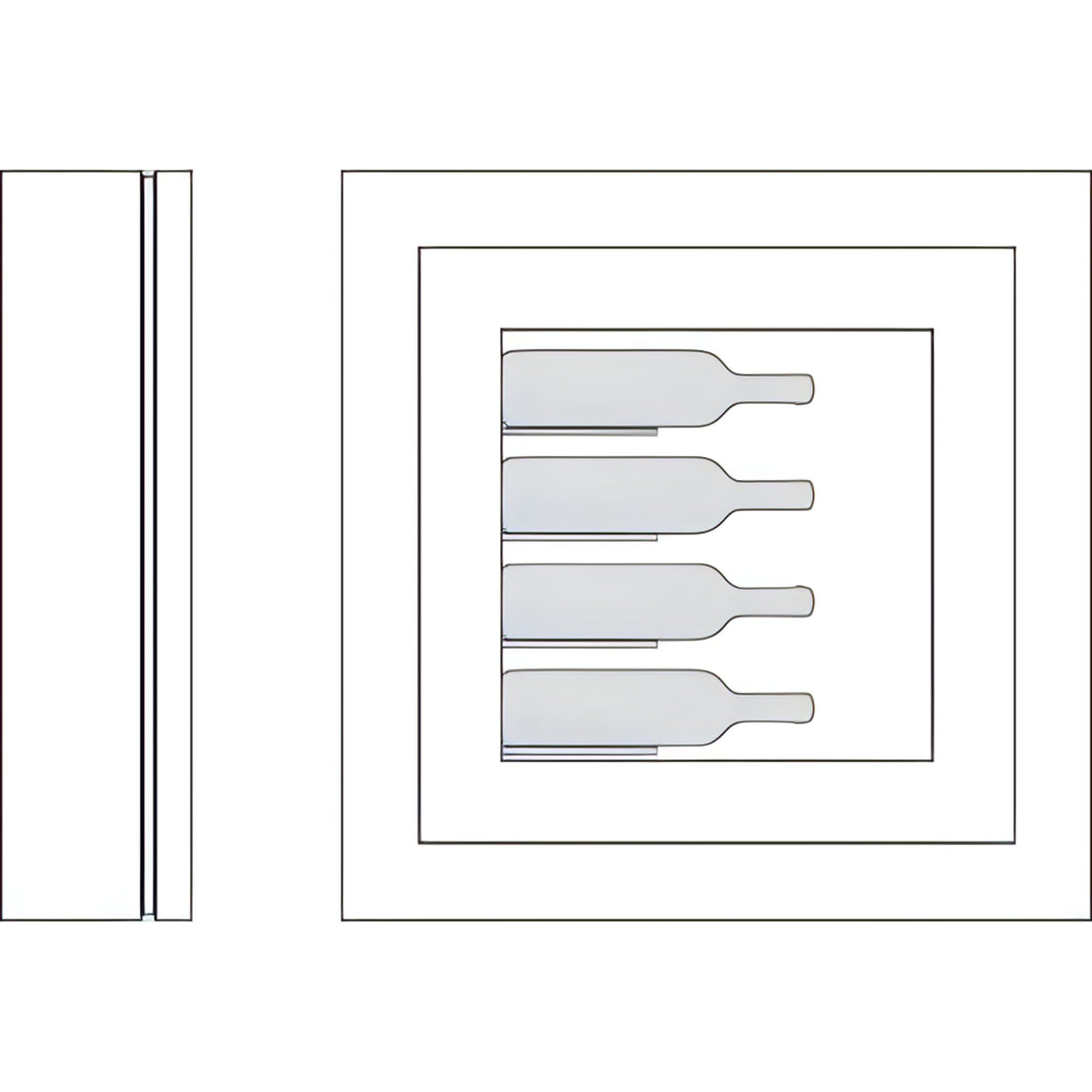

Quadra Vino QV40 diagram
1) Thermal Power System
2) Sheet metal body
3) MDF wooden frame
4) 20mm double glazing
5) Magnetic door seal
6) Laminated panel
7) LED lighting system
8) Aluminium rods
9) Automatic defrosting
10) Digital Thermo-regulator

Other Product features:

- Thermal power system operating between 12 and 20°C (Depending on the ambient temperature).

- LED lighting in white (Blue is also an option - please contact us)

- Maximum bottle height is 400mm

- 29dB operating noise

- 182 kWh/annum

- Warranty: 1 year parts and labour UK mainland and NI

- ROI warranty: 1 year parts only


Overall dimensions:

- Height: 780mm

- Width: 780mm

- Depth: 155mm

 Quadra vino QV40

Dimensions of the bottle slot:

- Height: 410mm

- Width: 410mm

- Weight: 30kg
