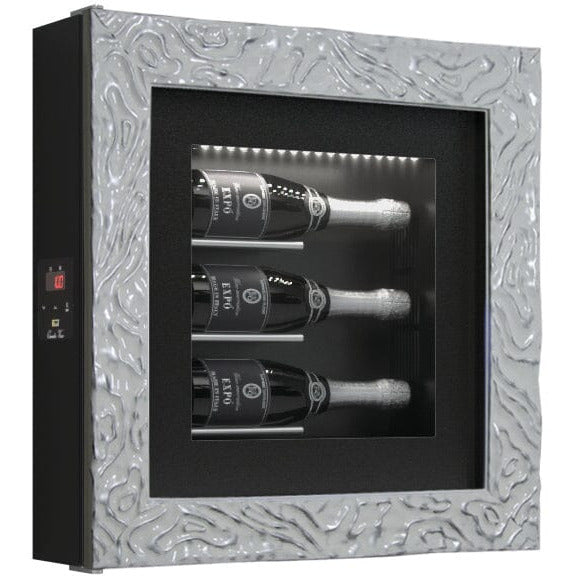

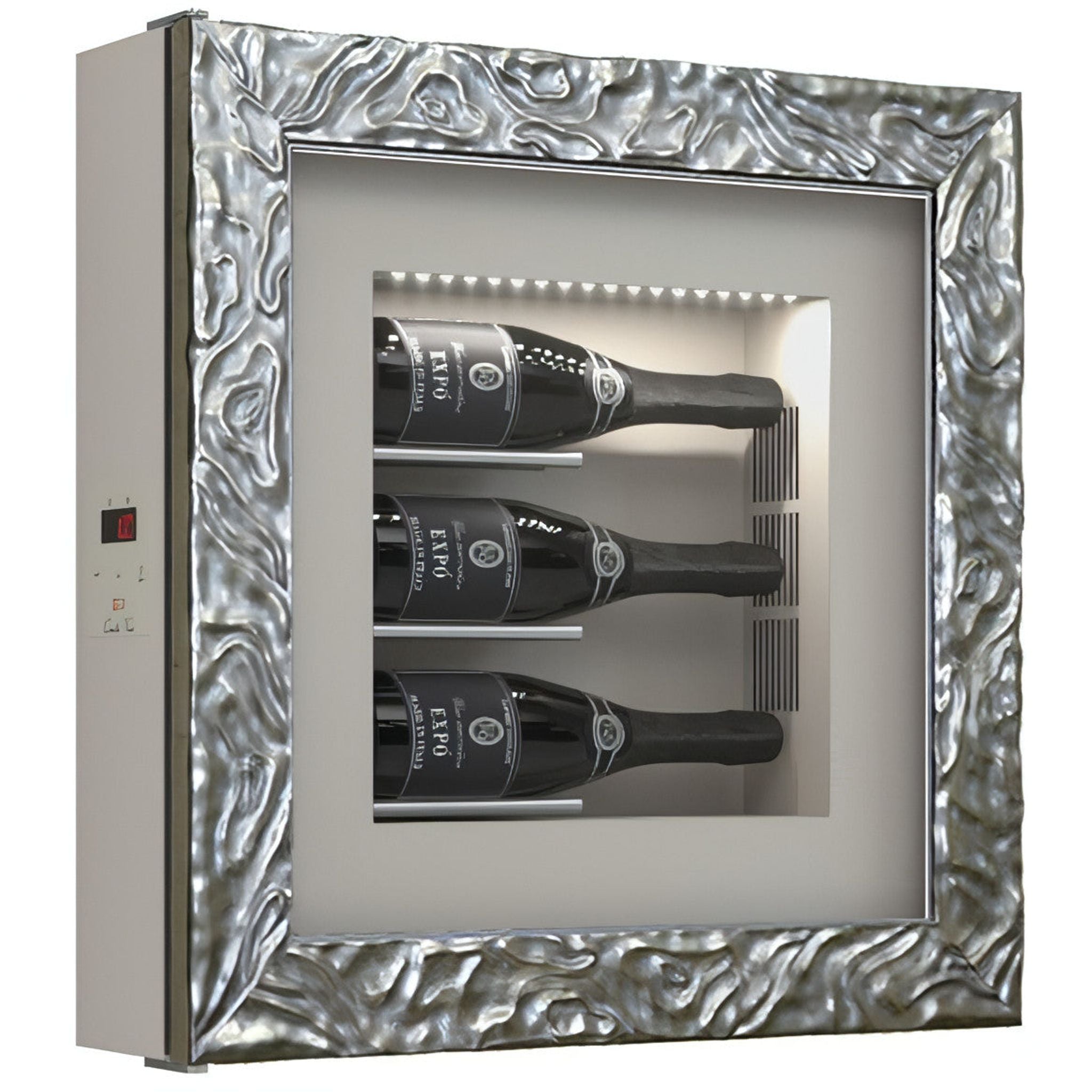

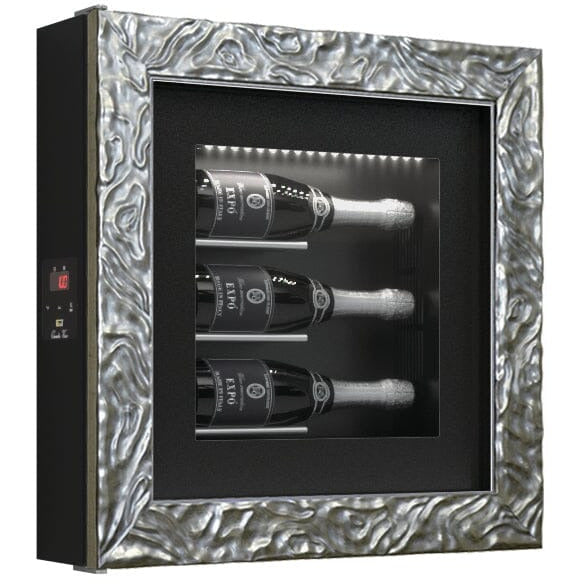

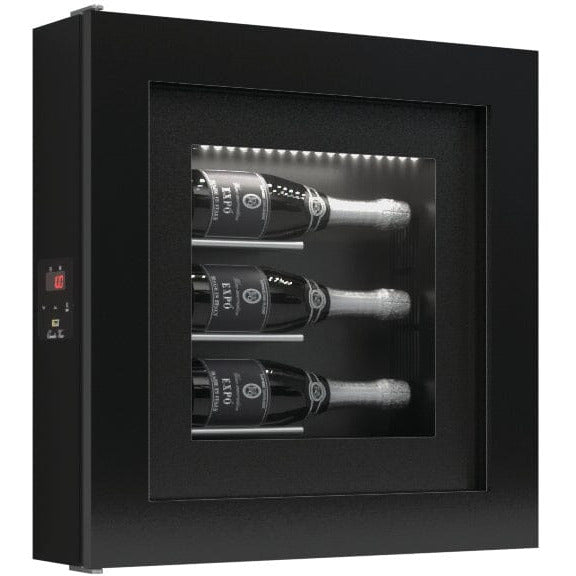

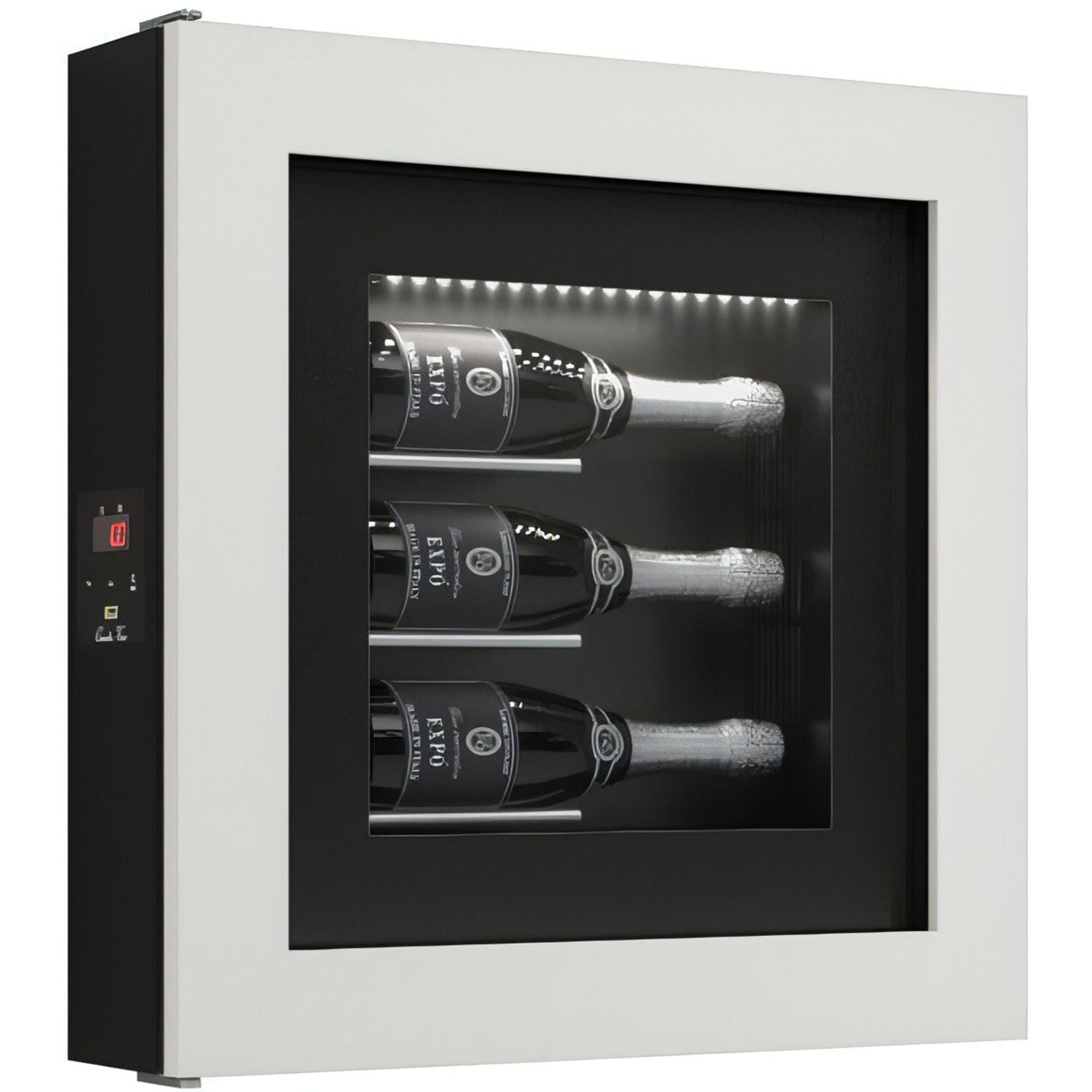

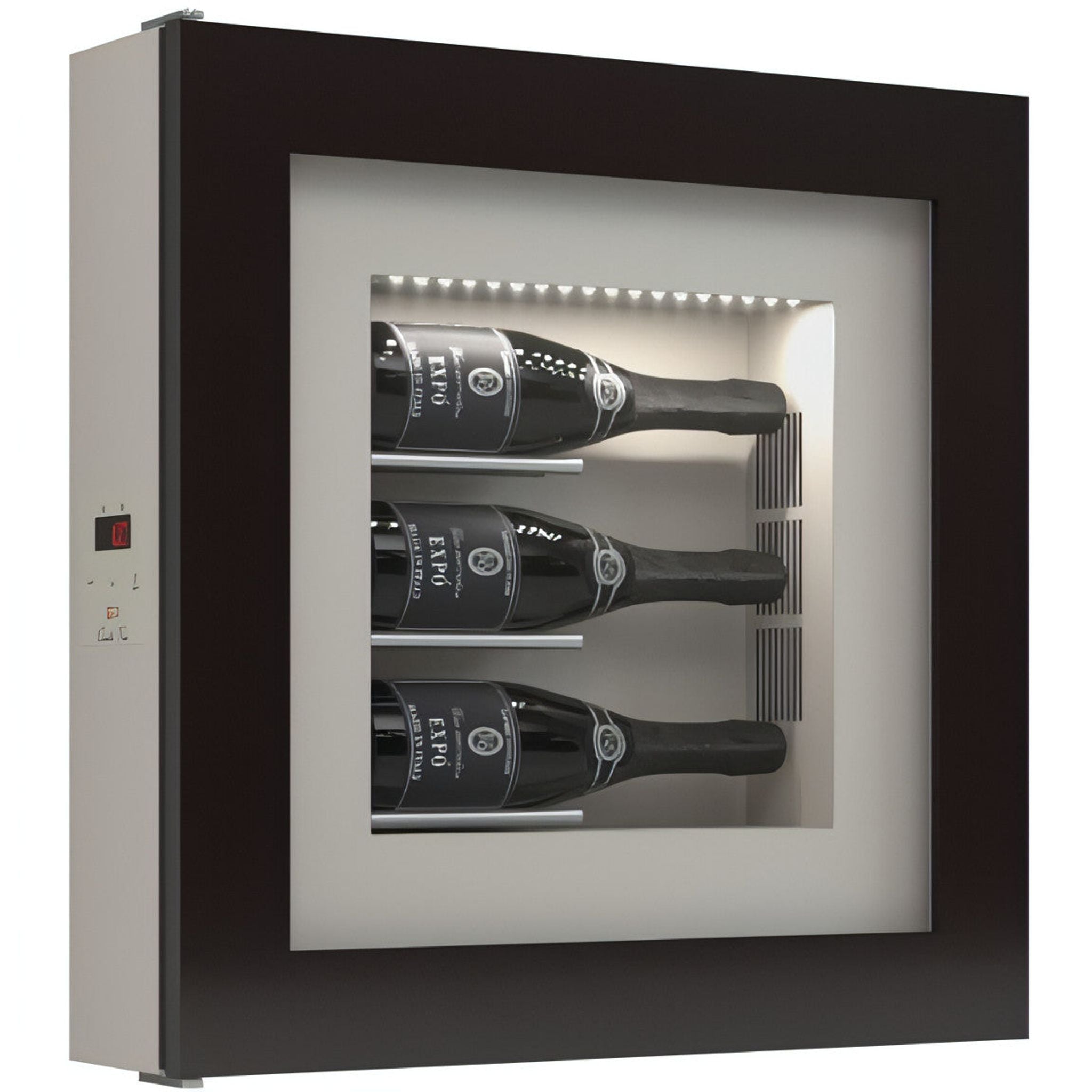

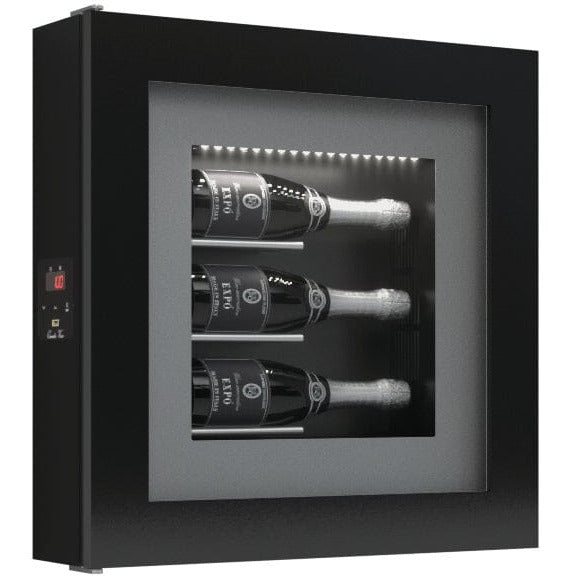

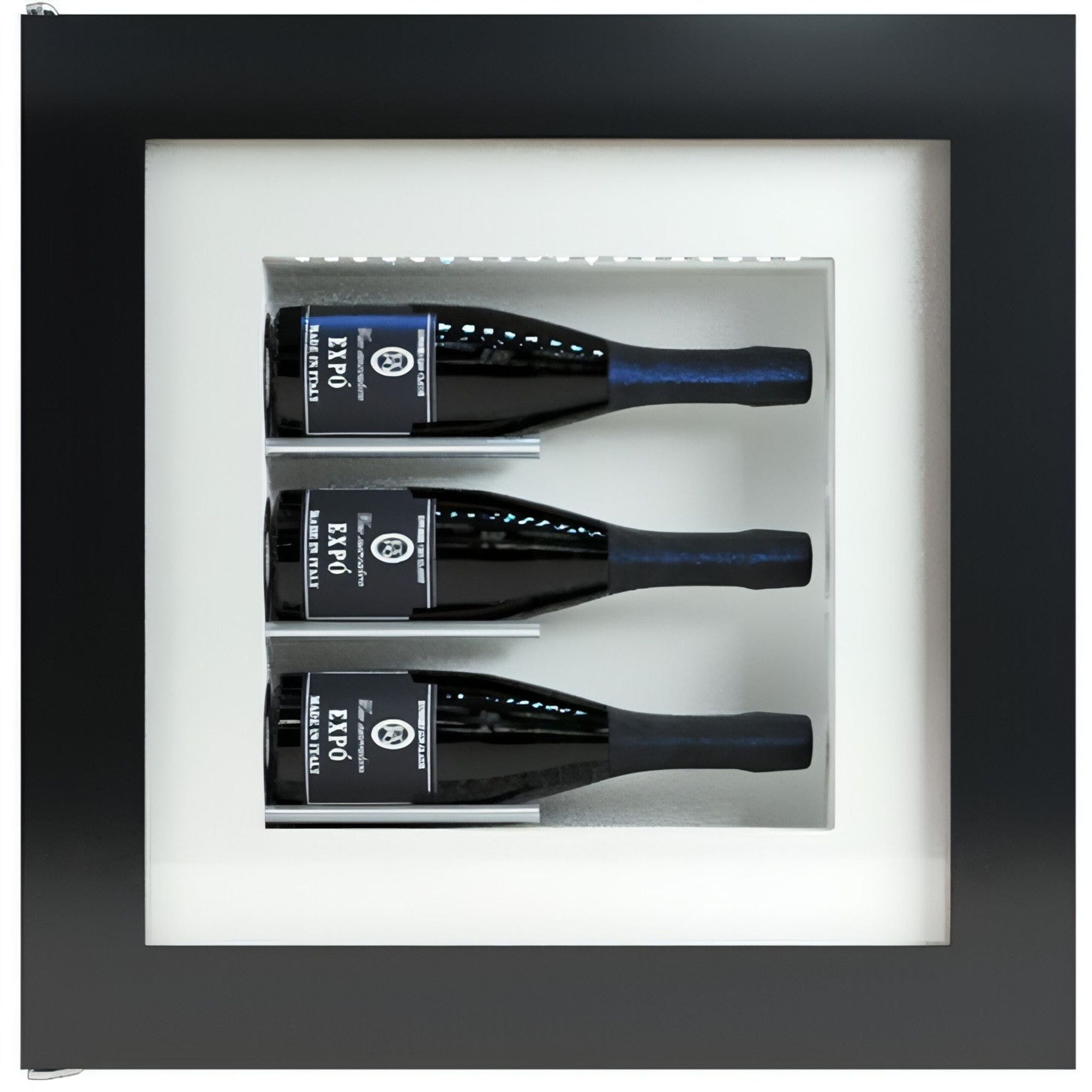

Quadro Vino - Wine Wall QV30 - 3 Bottle Display Unit



The Quadra Vino range is a wall mounted refrigerated display unit hand built in Italy. The appealing aesthetics bring something slightly different to the wine storage market.

Use the configurator to design your very own wine wall.

  • Wall Mountable
  • White / Blue LED lighting
  • Space for 3 bottles of wine
  • 1 year warranty
  • Dimensions: Height: 60cm, Width: 60cm, Depth: 15.5cm

  • 🚛 Lead Time for UK mainland: Approx. 6 weeks

    🚚 Lead Time for R.O.I kerbside: Approx. 6 weeks

    Please note, all EXPO products are manufactured to order.

Quadro Vino - Wine Wall QV30 - 3 Bottle frame

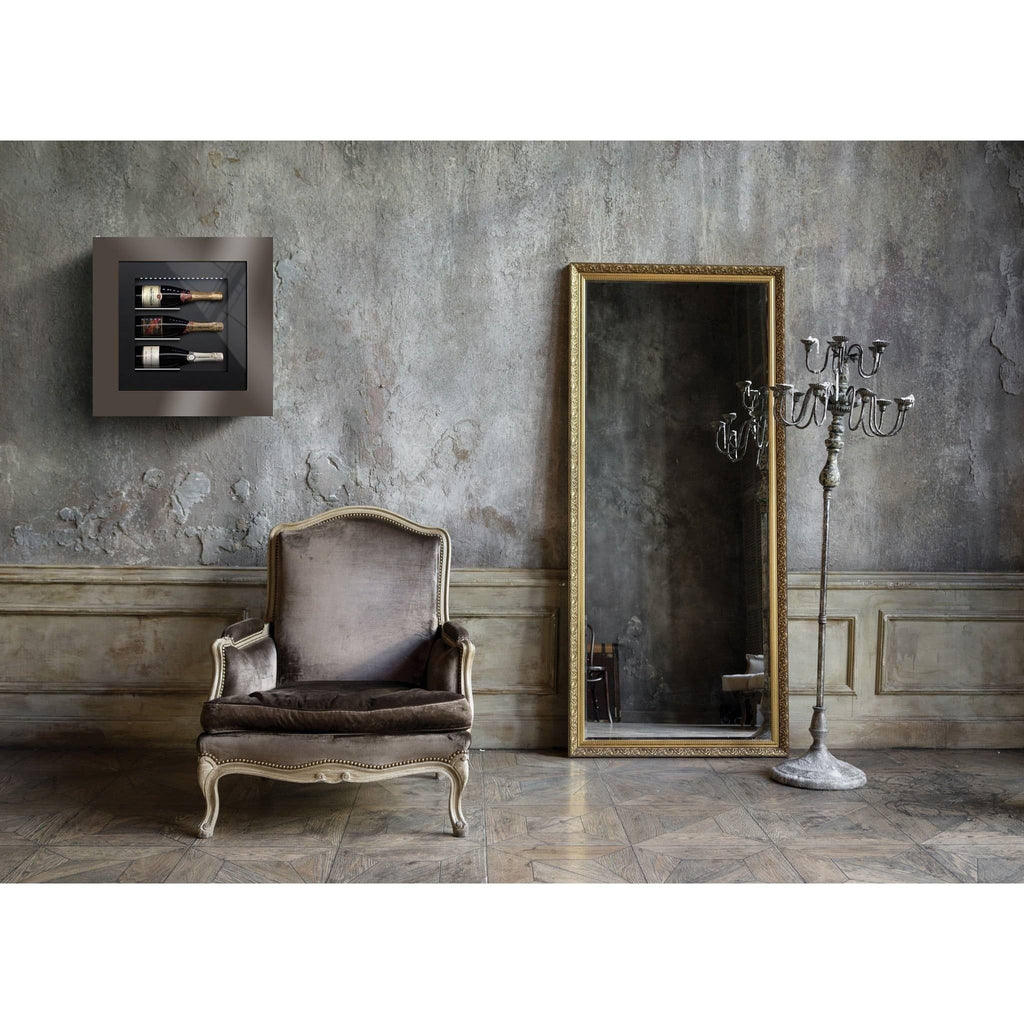

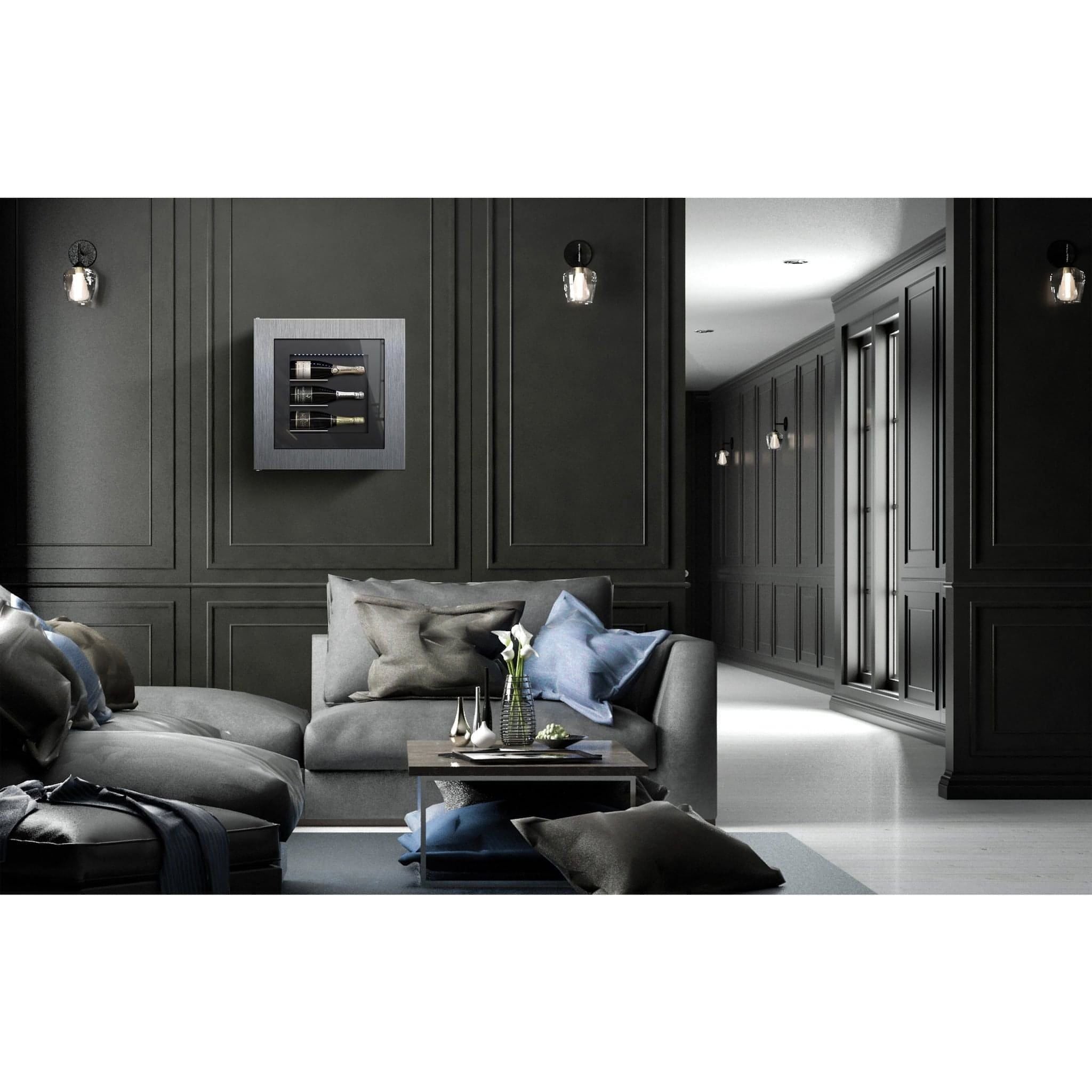

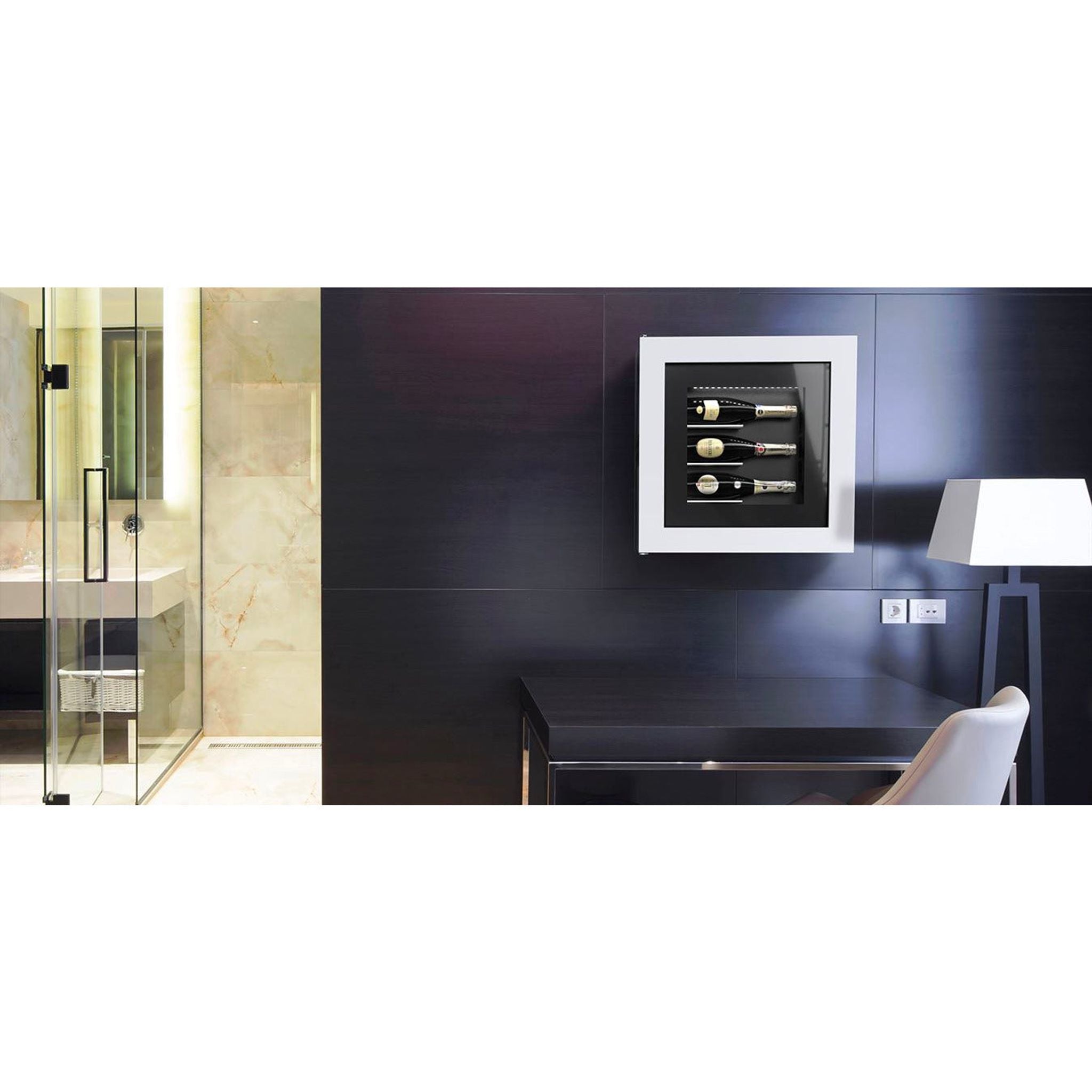

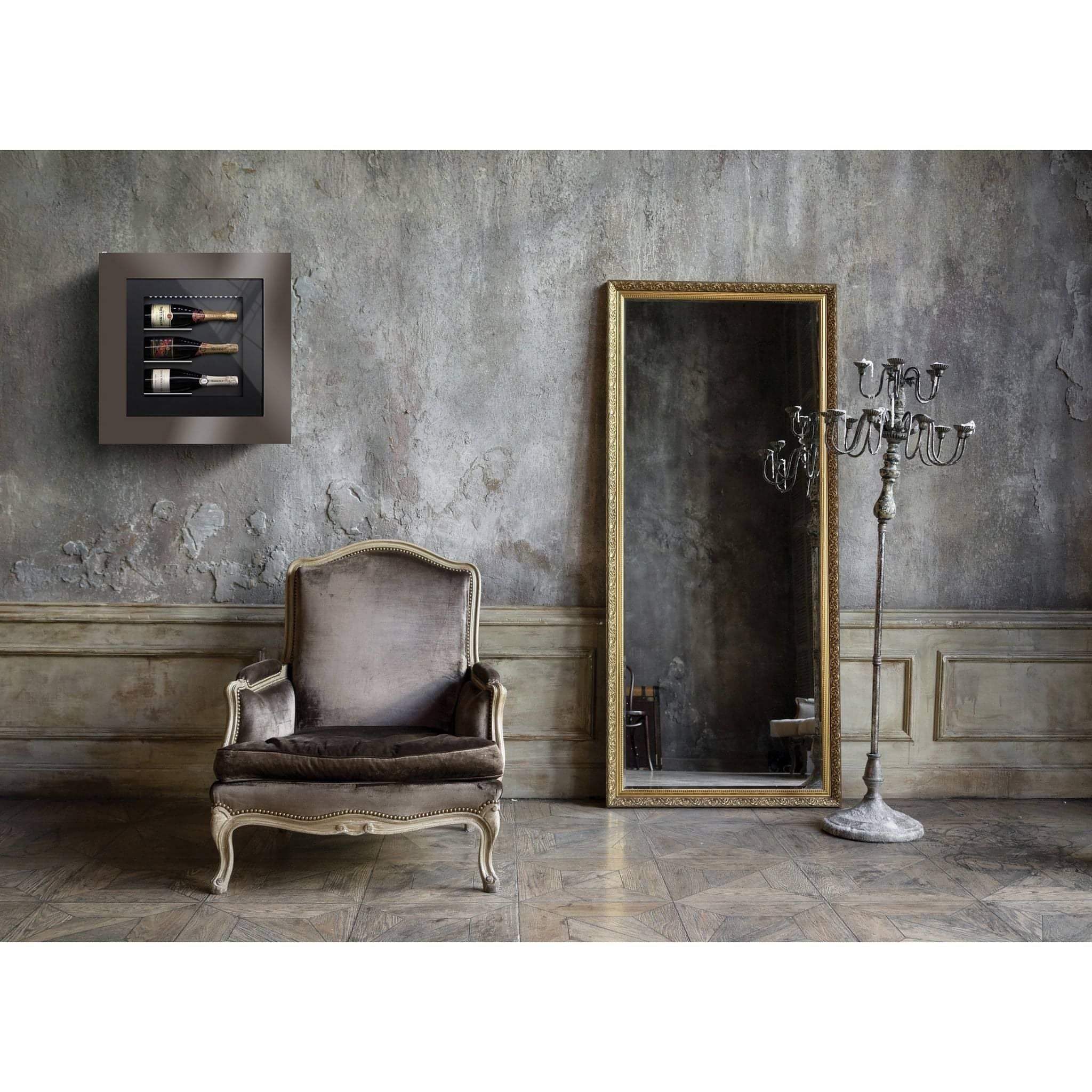

The Quadro Vino is a new and exciting product to Elite Wine Refrigeration and one we are proud to add to our collection of wine storage units.  The Quadro Vino is in essence a refrigerated picture frame which is designed to hang on a flat wall.  With its appealing aesthetics and wow factor, the Quadro Vino is a great addition to any restaurant, hotel or even as a gift for a family member - the Quadro Vino is not limited to commercial settings.

With space for three special bottles, this model also features interior LED lighting and a whole host of different designs to pick from - simply select the set up you like from the drop down menu in the highlights section.

Quadra vino

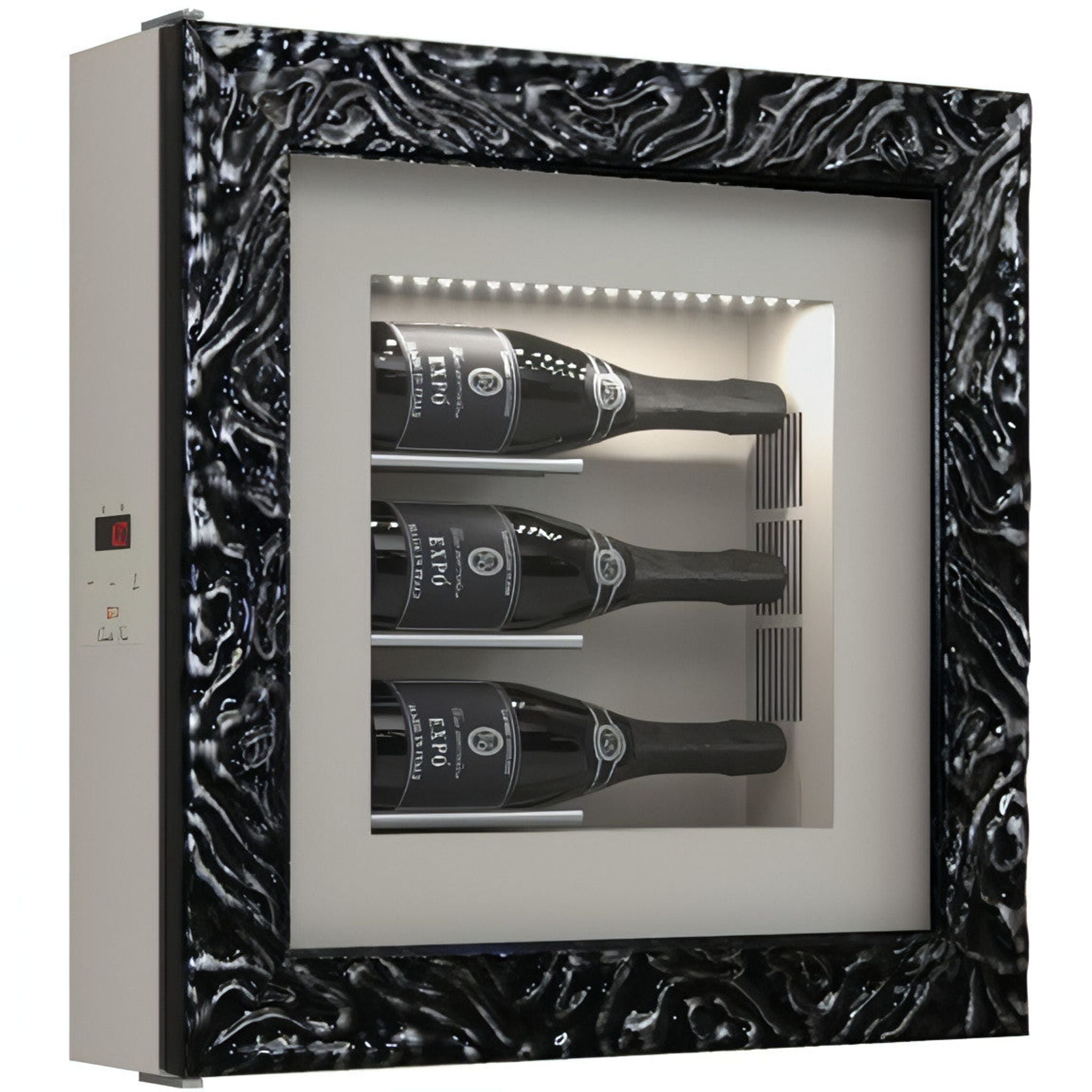

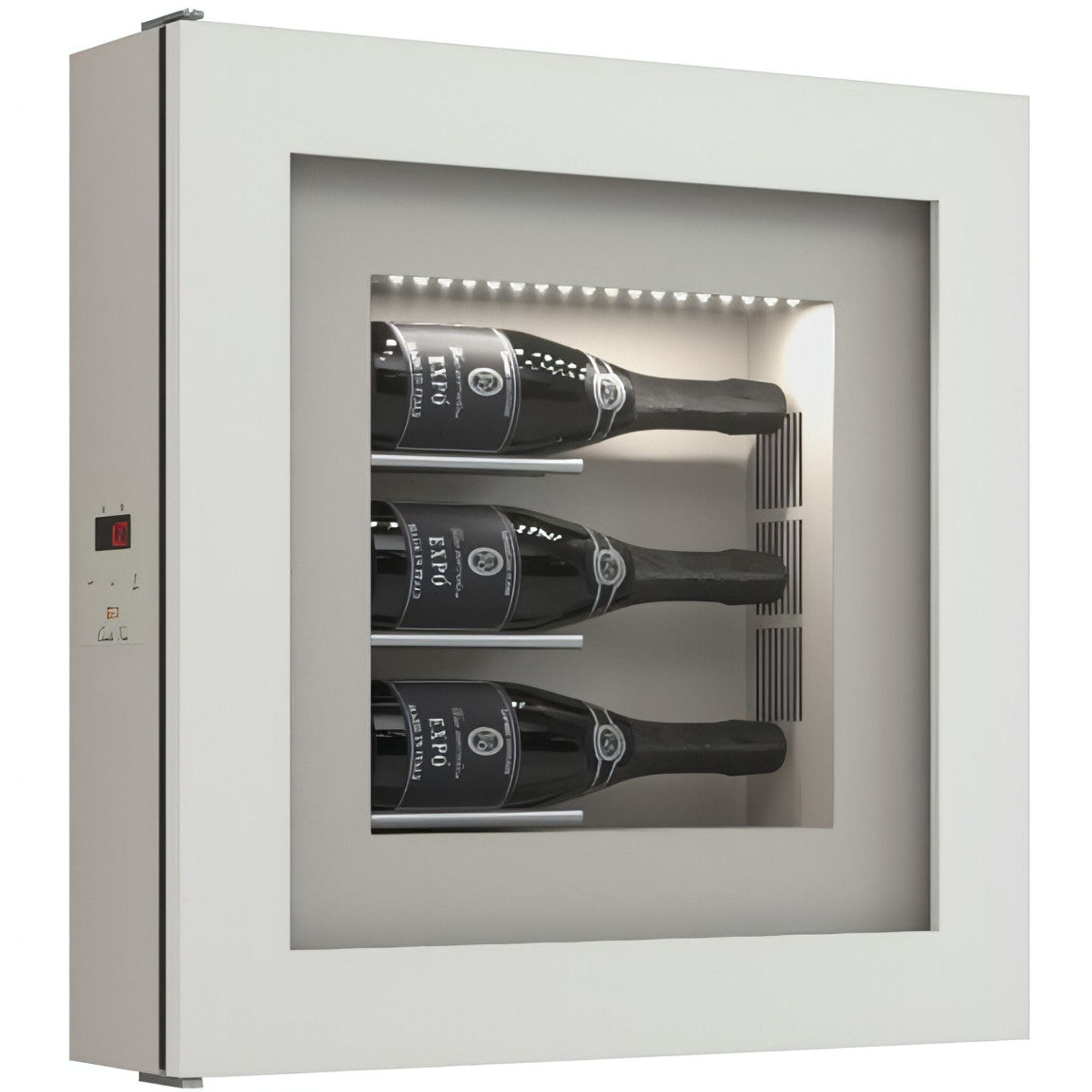

1. Structure: White (B) or Black (N)

2. Frame

3. Panel

Use the configurator to design your very own wine wall.

The colour codes shown above or from page. 25 onwards in the catalogue refer to the drop down options.


The door is a double glazed left hinged door that swings open to allow full access to your glasses and wine bottle.
You can choose from either blue or white LED lighting, as standard we offer white lighting with all orders so if you would like to change this to blue - please contact us before ordering.

The Quadro Vino 30 cools via a thermoelectric cell which has an operating temperature of 8 to 20°C , depending on the ambient temperature.  The recommended ambient temperature is 25°C for this model.  From the diagram below you can see how the ambient temperature affects the QV30's internal temperature.

quadra vino qv30
1) Thermal Power System
2) Sheet metal body
3) MDF wooden frame
4) 20mm double glazing
5) Magnetic door seal
6) Laminated panel
7) LED lighting system
8) Aluminium rods

9) Automatic defrosting
10) Digital thermoregulator

Other Product features:

- Thermal power system operating between 8 and 20°C

- LED lighting in white (Blue is also an option - please contact us)

- Maximum bottle height is 324mm

- Warranty: 1 year parts and labour UK mainland and NI

- ROI warranty: 1 year parts only

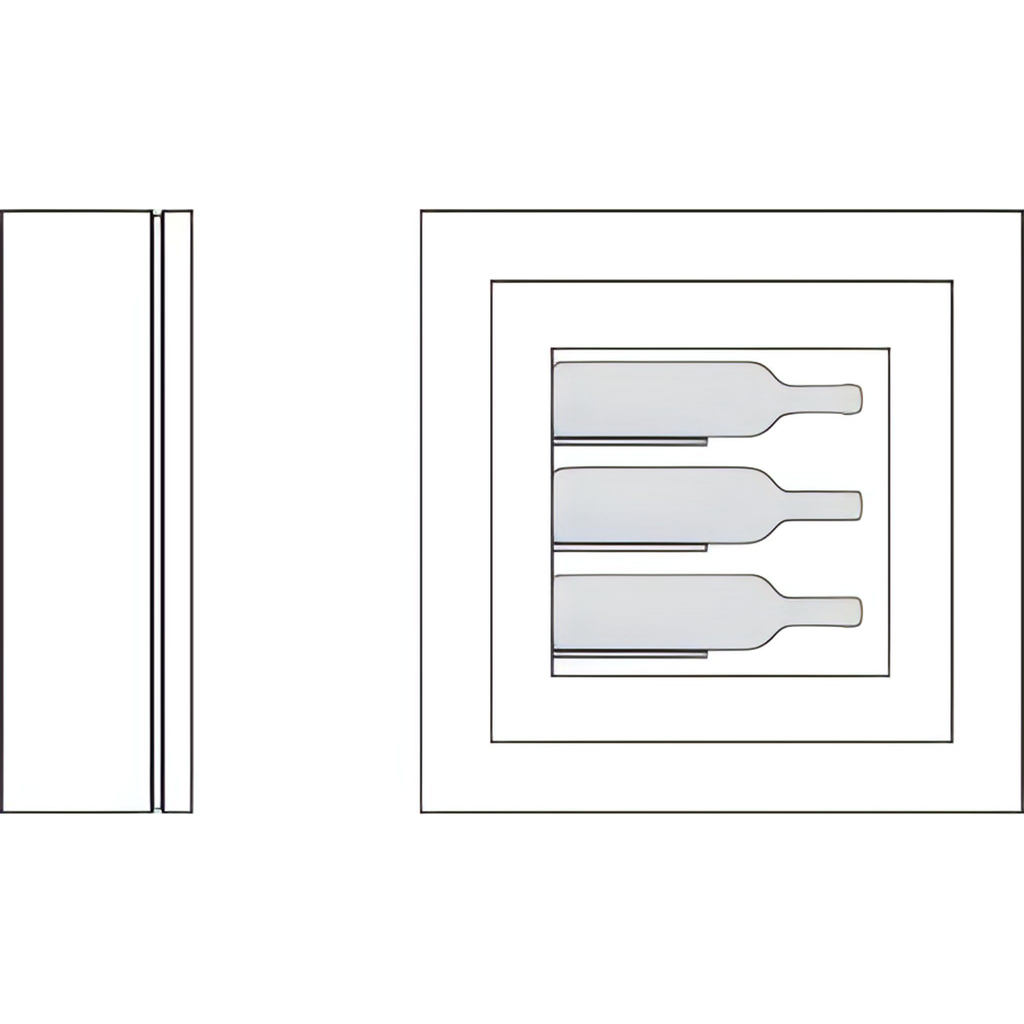

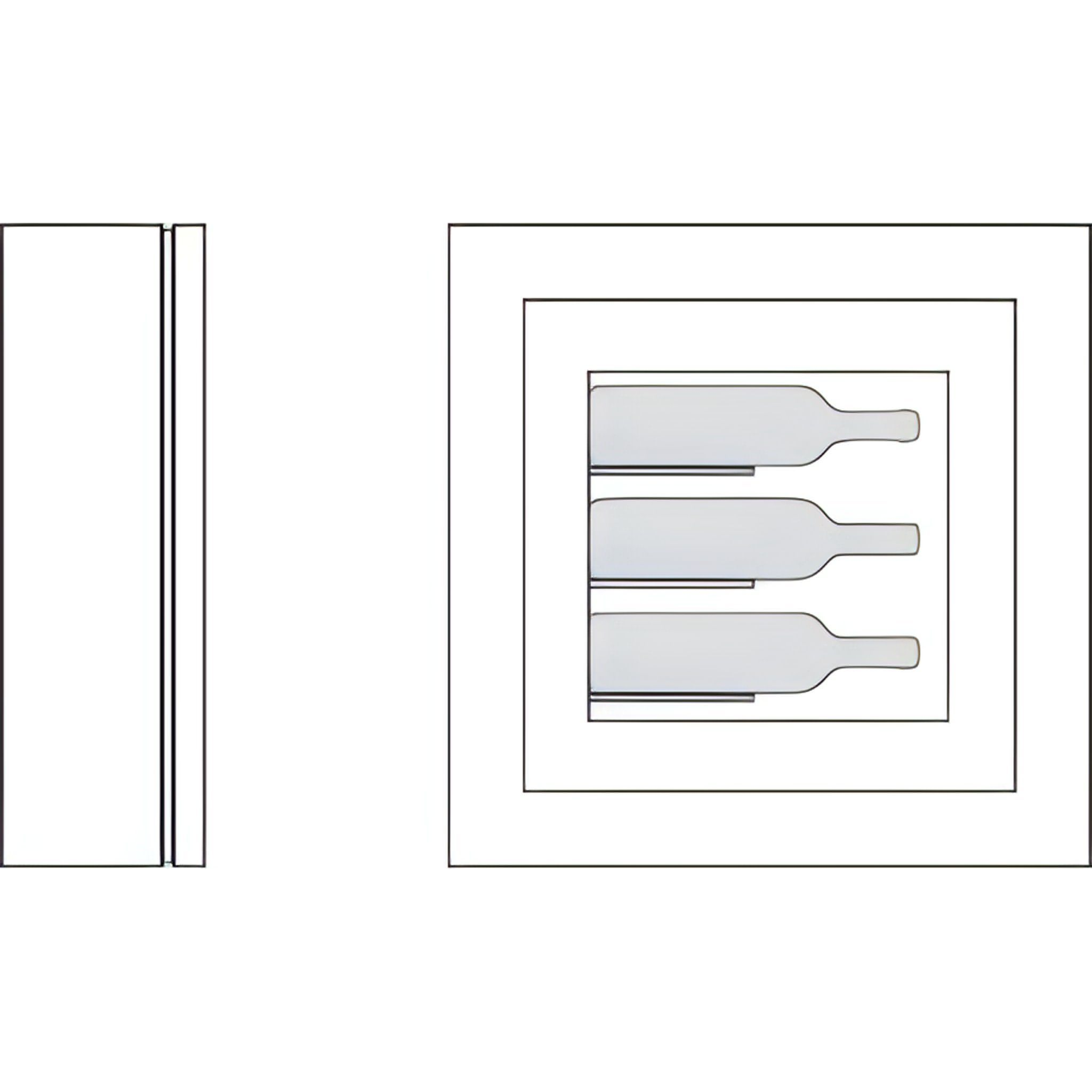

Overall dimensions:

- Height: 600mm

- Width: 600mm

- Depth: 155mm

 Quadra vino QV30

Dimensions of the bottle slot:

- Height: 327mm

- Width: 108mm

 - Weight: 21kg


Product specification



EXPO Europe Logo

Quadra Vino QV30 - 1

 Quadra Vino QV30 - 2

 Quadra Vino QV30 - 3
