Mod 20 - Modular Wine Wall MD-24 - For Home Use



The Mod 20 range from Expo Europe - domestic wine wall range brings high quality components together with a luxurious display.

  • Multi Temperature Zone Cabinet
  • White LED lighting
  • Various bottle capacity
  • 1 year warranty
  • Dimensions: Various options - see description

  • 🚛 Lead Time for UK mainland: Approx. 6 weeks

    🚚 Lead Time for R.O.I kerbside: Approx. 6 weeks

    Please note, all EXPO products are manufactured to order.

Mod 20 Wine Wall MD-24 - For Home Use

 Wine wall buying guide

Mod 20 MD-24 - Domestic Wine Wall

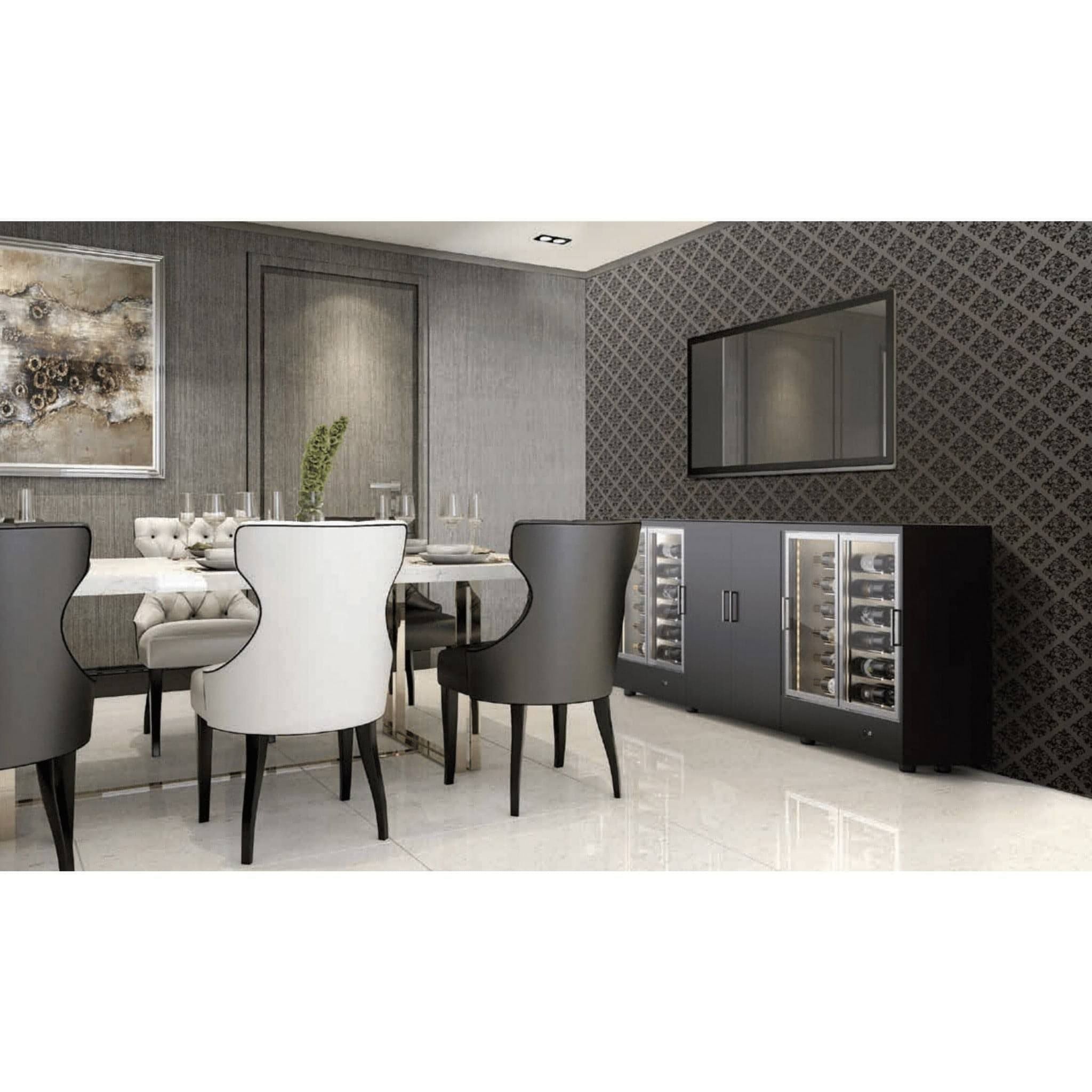

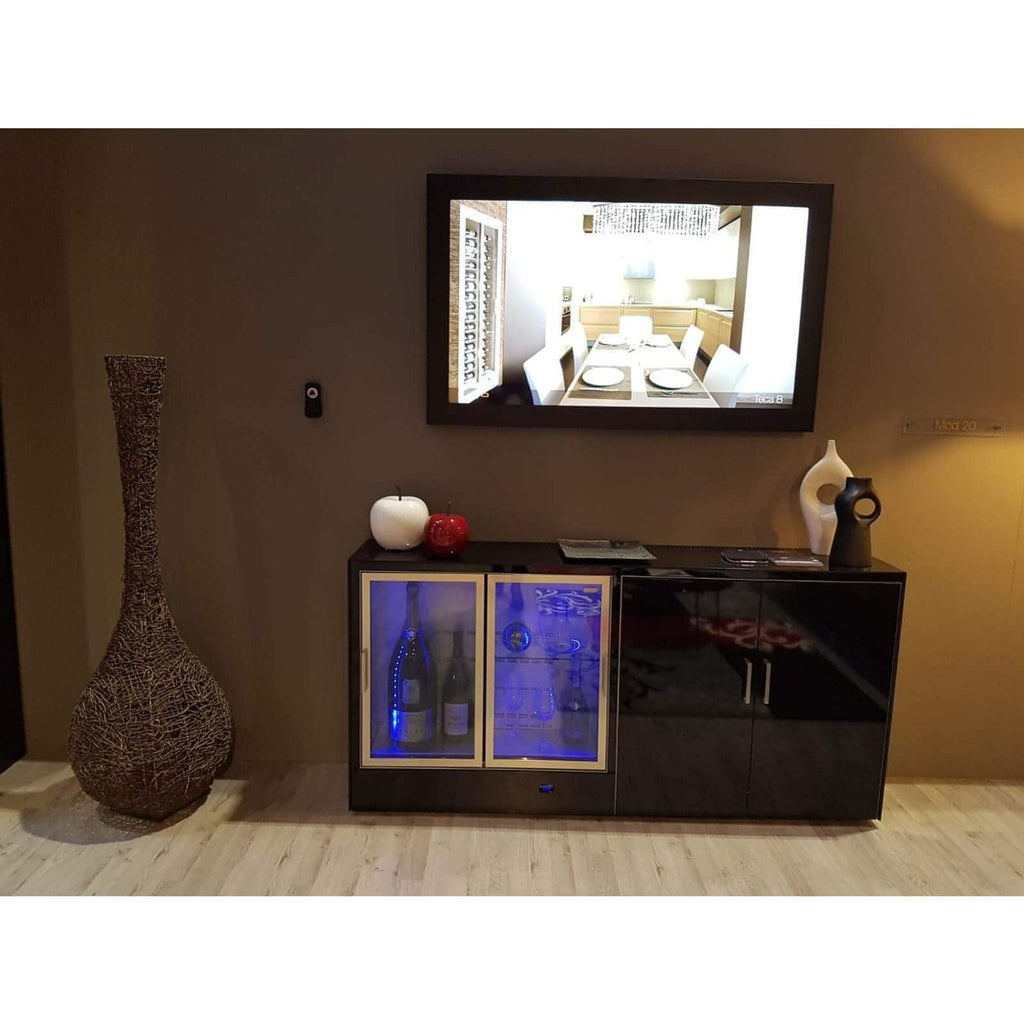

The Mod 20 range is effectively your custom-made refrigerated wine cabinet where you choose your style of cladding that matches the decor and the furnishing in your home. You can even join more than one module together and also have the option to add a non-refrigerated cabinet - this will create a truly unique piece of furniture.

MD-20 is installed as a freestanding unit completed with cladding to transform it into a unique piece of furniture. The Mod 20 range comes in different sizes and has a full aluminium structure.

See the catalogue here for the range of frames and colours available.

Interior and Exterior

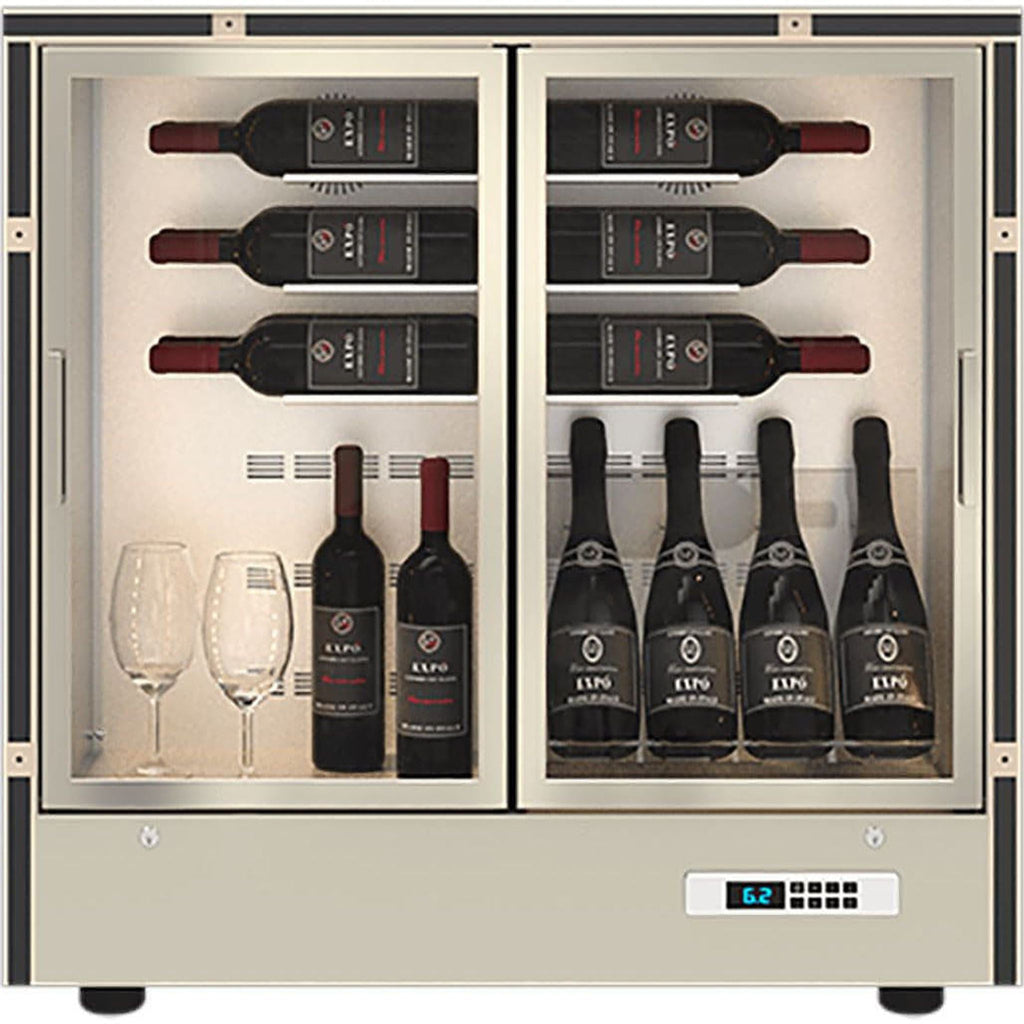

The MD-24 offers a side-by-side hinged door opening style in which the double glazed door is fully UV treated to protect your collection from light. The interior is lit with white LED lighting and the interior of the cabinet is manufactured from aluminium which ensures a high quality design.

The external cladding is made from HPL, the cabinet is also equipped with magnetic strips to fix the HPL cladding around the door. If you decide to add non-refrigerated units, these come with a solid door in two different sizes.

As well as displaying your collection, the Mod 20 range also has an automatic defrost system and automatic evaporation system to ensure the correct storage conditions are met - the doors are also lockable.

The shelves in the MD-24 wine wall are designed to display the wine bottles standing upright, as well as displaying various other accessories such as decanter and wine glasses.

MD-24 options

MD-H24: Various bottle capacity, white LED lighting, solid back wall with a double door and lock.

Dimensions: Height: 902mm  Width: 900mm  Depth: 350mm

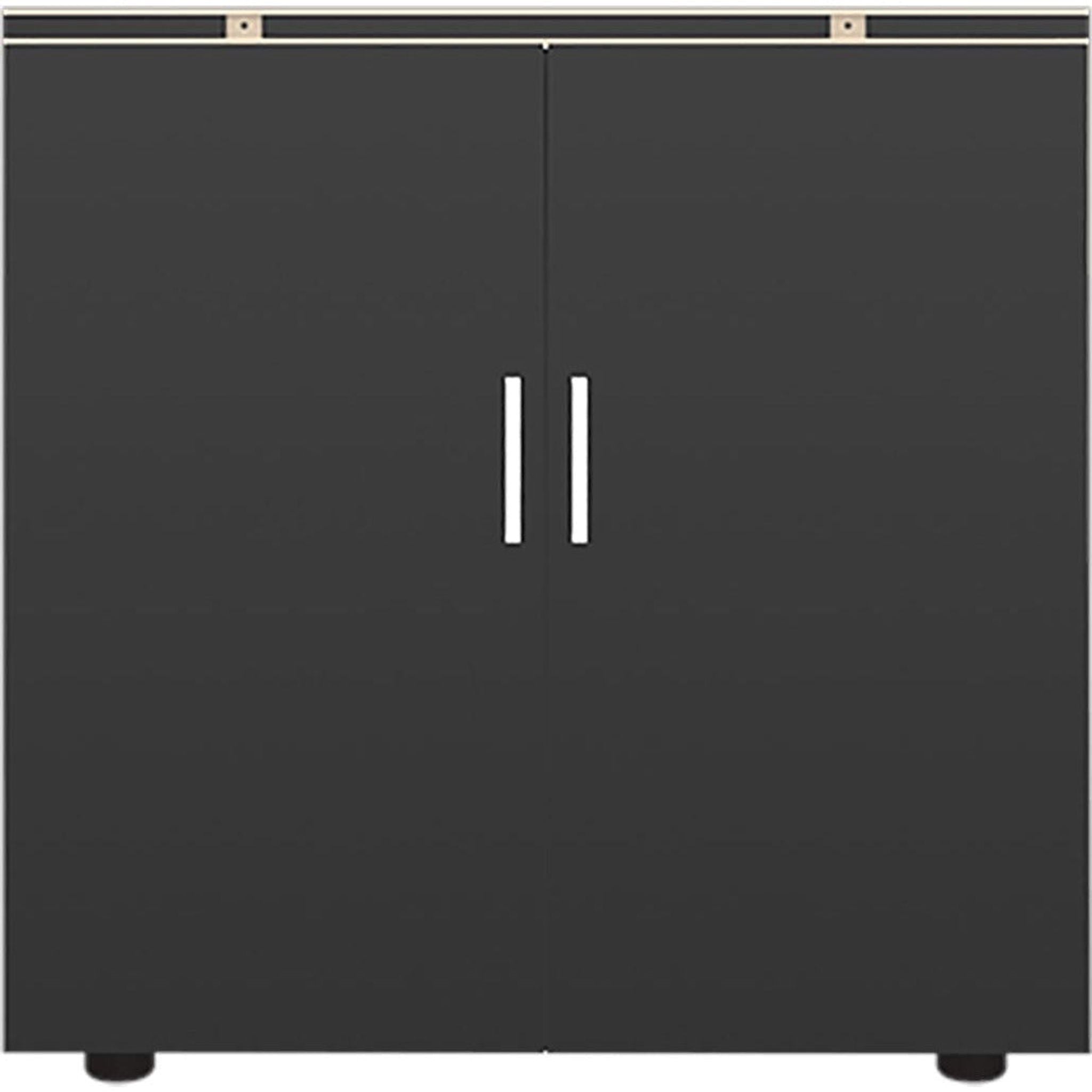

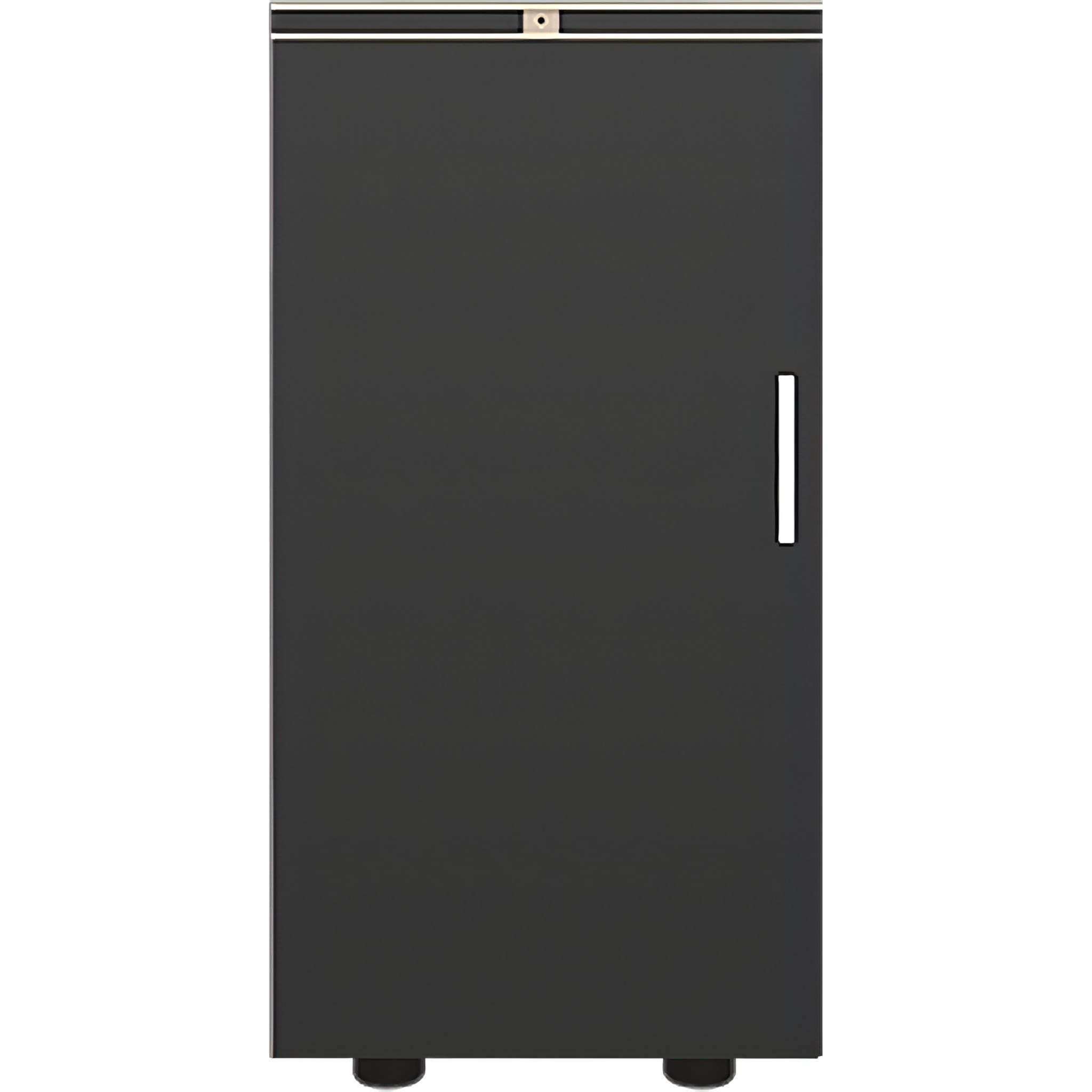

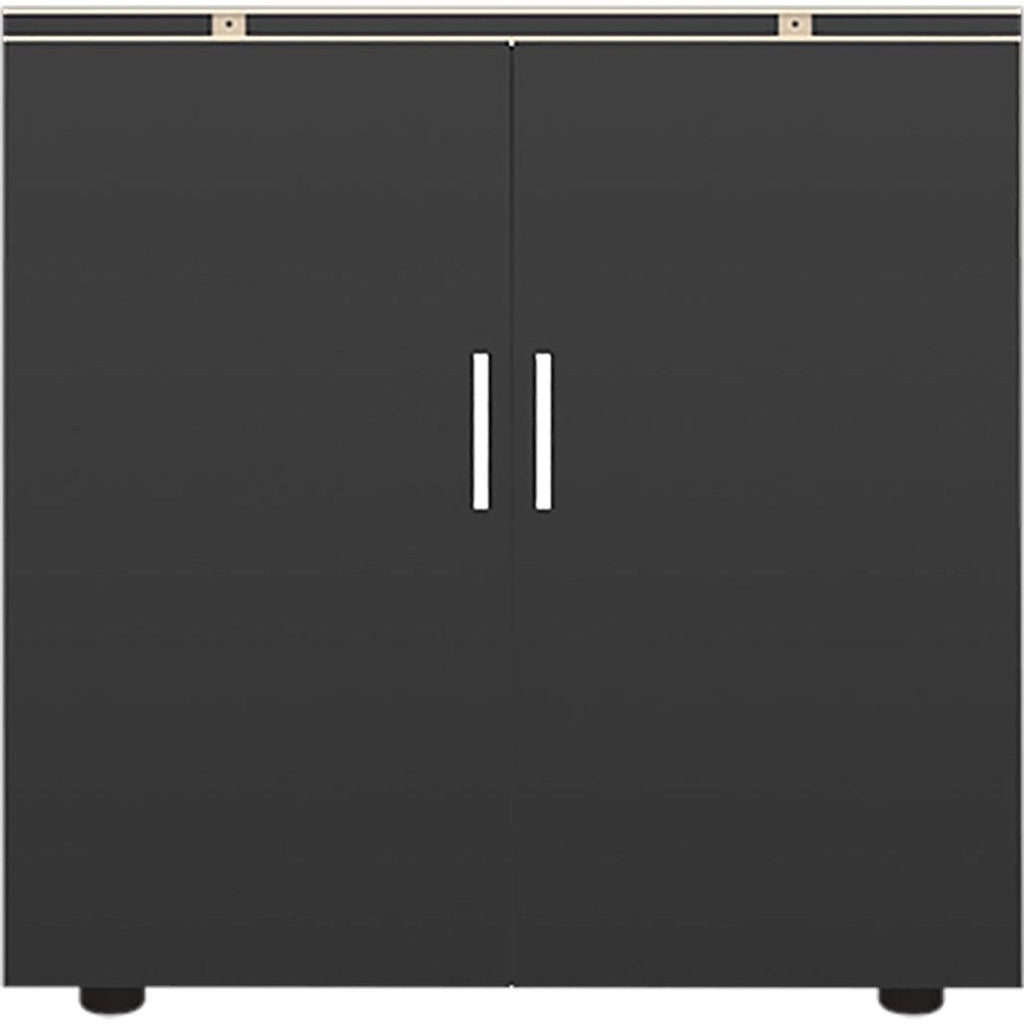

*Non-refrigeration options: MD-H25, MD-H25S

Weight: 56kg

MD-H24 specification

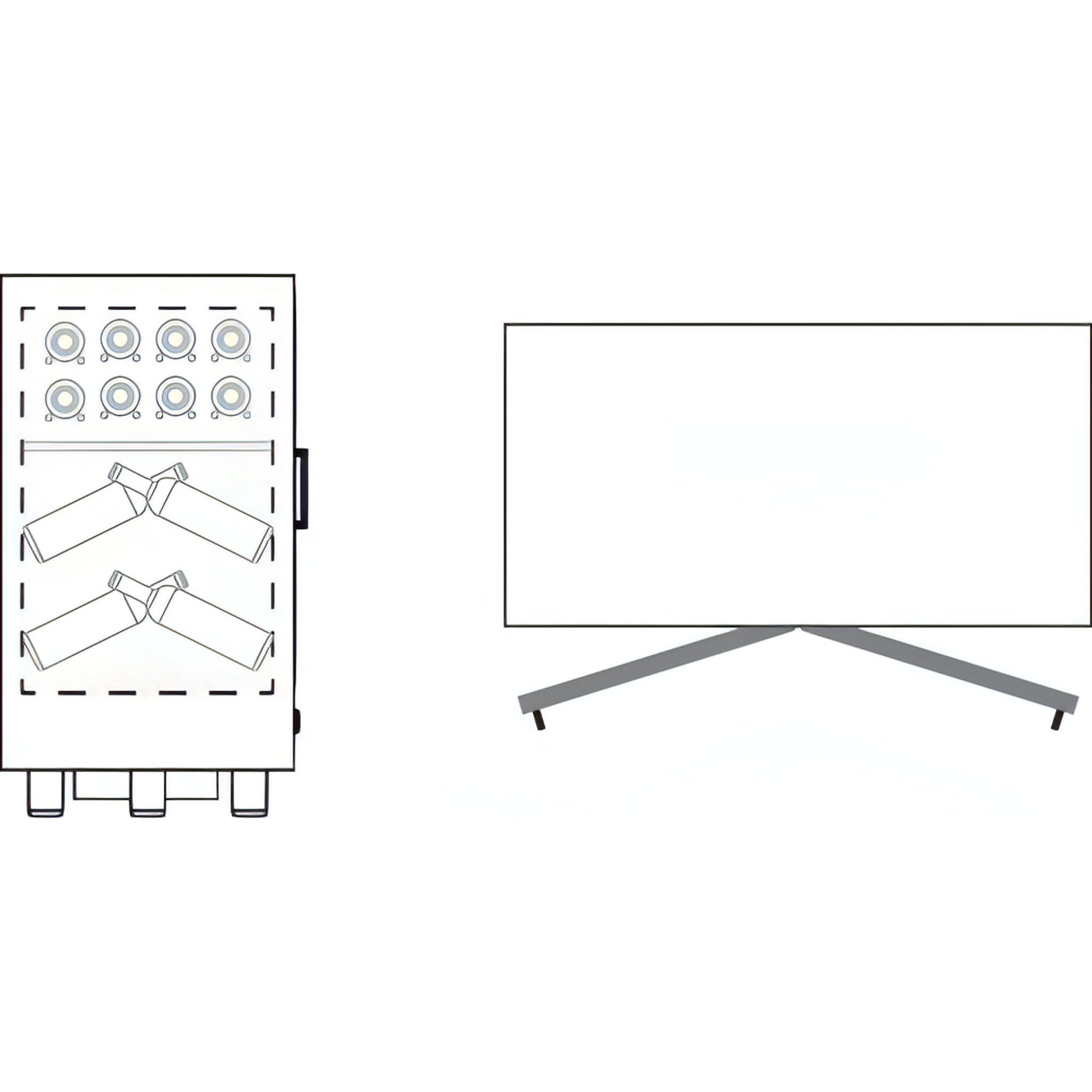

MD-M24: Various bottle capacity, white LED lighting, solid back wall with a double door and lock.

Dimensions: Height: 943mm  Width: 900mm  Depth: 510mm

*Non-refrigeration options: MD-M25, MD-M25S

Weight: 66kg

MD-M24 specification

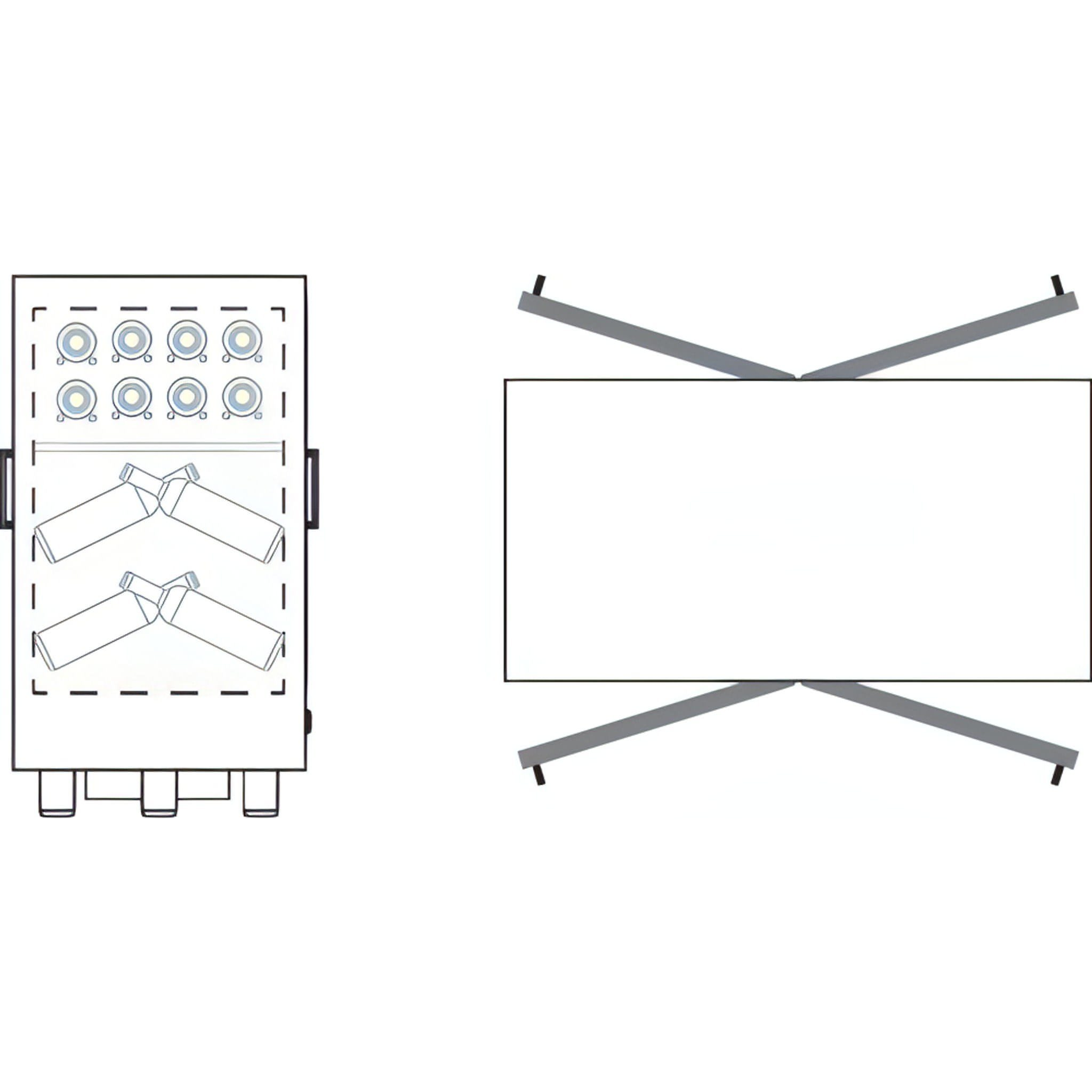

MD-C24: Various bottle capacity, white LED lighting, see-through wall with 4 doors and lock.

Dimensions: Height: 943mm  Width: 900mm  Depth: 510mm

*Non-refrigeration options: MD-C25, MD-C25S

Weight: 76kg

MD-C24 specification


Temperature Control

The Mod 20 wine walls are multi temperature zone units and have a multitude of temperature options depending on whether the fans are turned on or off and the temperature the cabinet is set to.

The temperature can be set using a digital control panel which also controls the lighting, fans and defrost cycle.

Example temperature operation, if set to 4°C:

Fans off - the wine wall will operate between 4°C at the bottom and 16°C at the top.

Fans on - the wine wall will operate between 4°C at the bottom and 10°C at the top.

The use of the fans creates a smaller temperature range as the cooler air can be distributed more evenly.  Please note these are examples only and the actual temperature range may differ depending on ambient temperatures.



- Digital temperature controller

- Rechargeable carbon filter

- Magnetic strips for the decorative trims

- Automatic Defrost

- Heating function with heated rails

- Anti vibration system

- Inverter compressor

- Lock with key

- Ventilated cooling system - fan assisted

- Maximum bottle height is 370mm

- Warranty: 1 year parts and labour UK mainland and NI

- ROI warranty: 1 year parts only
