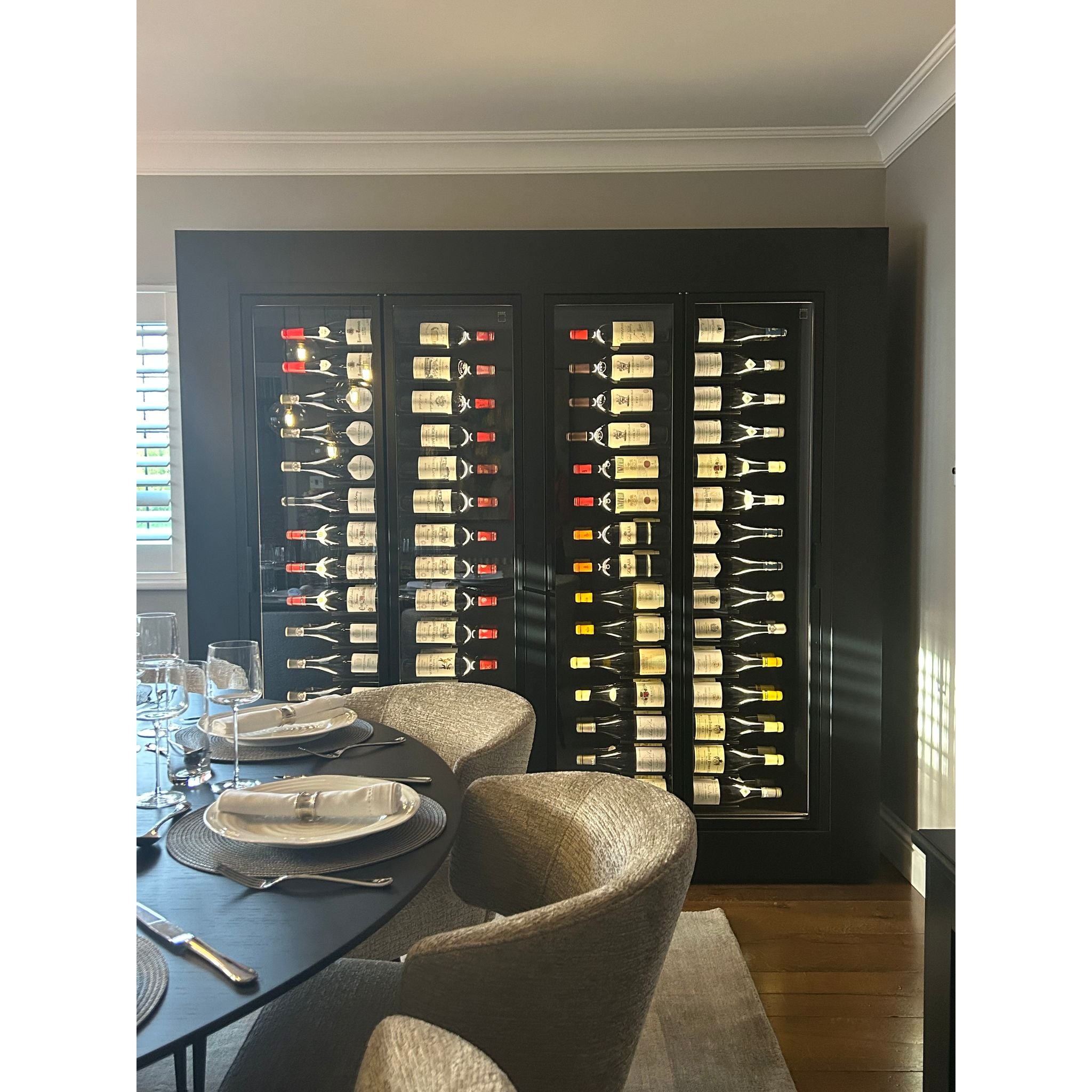

EXPO Wine Wall - Mod 10 MD-12 with Horizontal Bottle Shelving - For Home Use
The Mod 10 range is effectively your custom-made refrigerated wine cabinet where you choose your style of frame that matches the decor and the furnishing in your home. You can even join more than one module together - this will create a truly unique piece of furniture
MD-12 can be installed as a freestanding unit, or built into a wall/alcove for a seamless finish depending on which model you choose. The Mod 10 range has a full aluminium structure and is completed with a wooden frame in a traditional or linear style.
*Pricing on website is based on L11 matte black frame, with standard LED lighting and a full frame including side panels.* Please contact us for a quotation if you would like a different finish as prices may vary. See the catalogue here for the range of frames and colours available.
- Aluminium finish with warm white LED lighting
- Side-by-side hinged door (double glazed and UV treated)

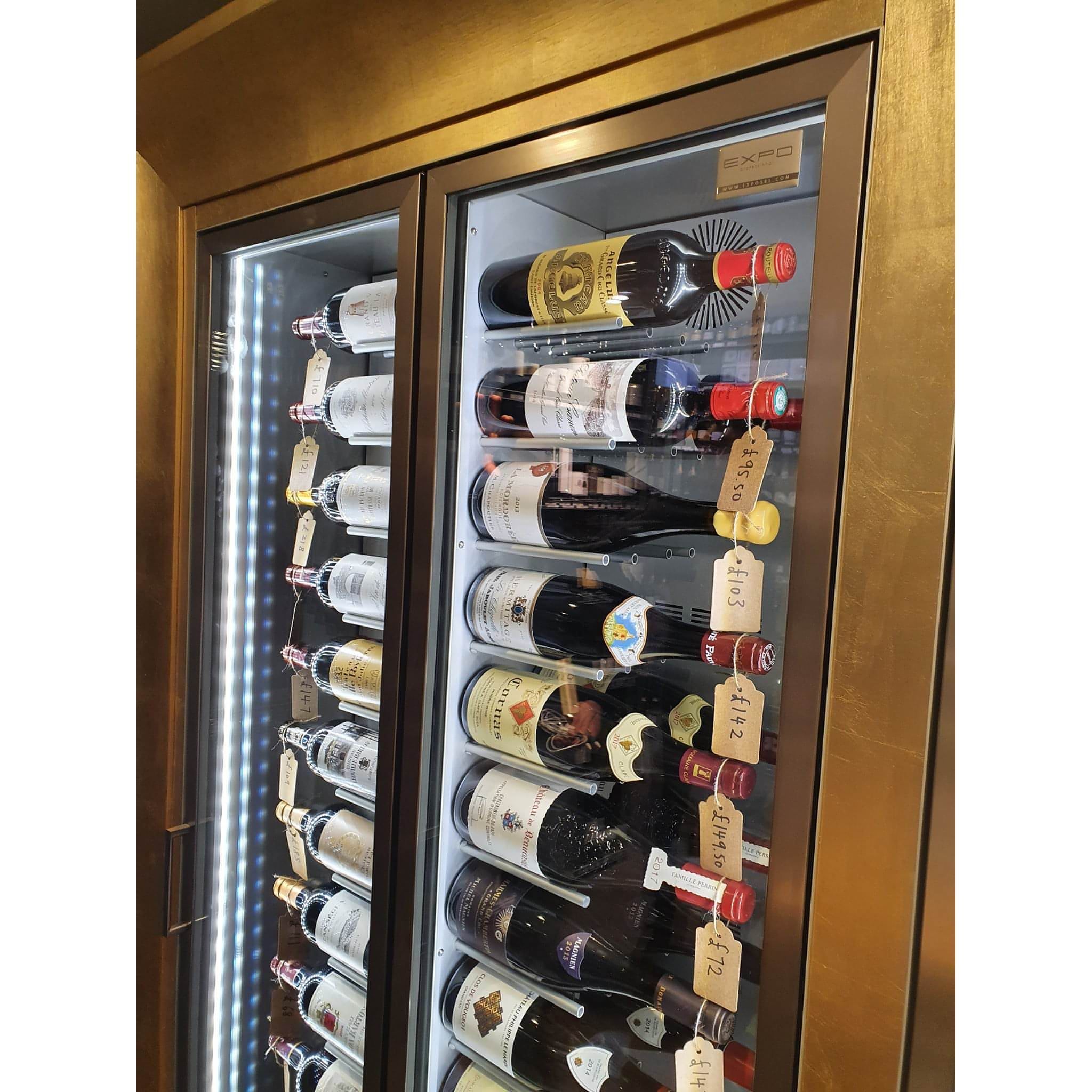

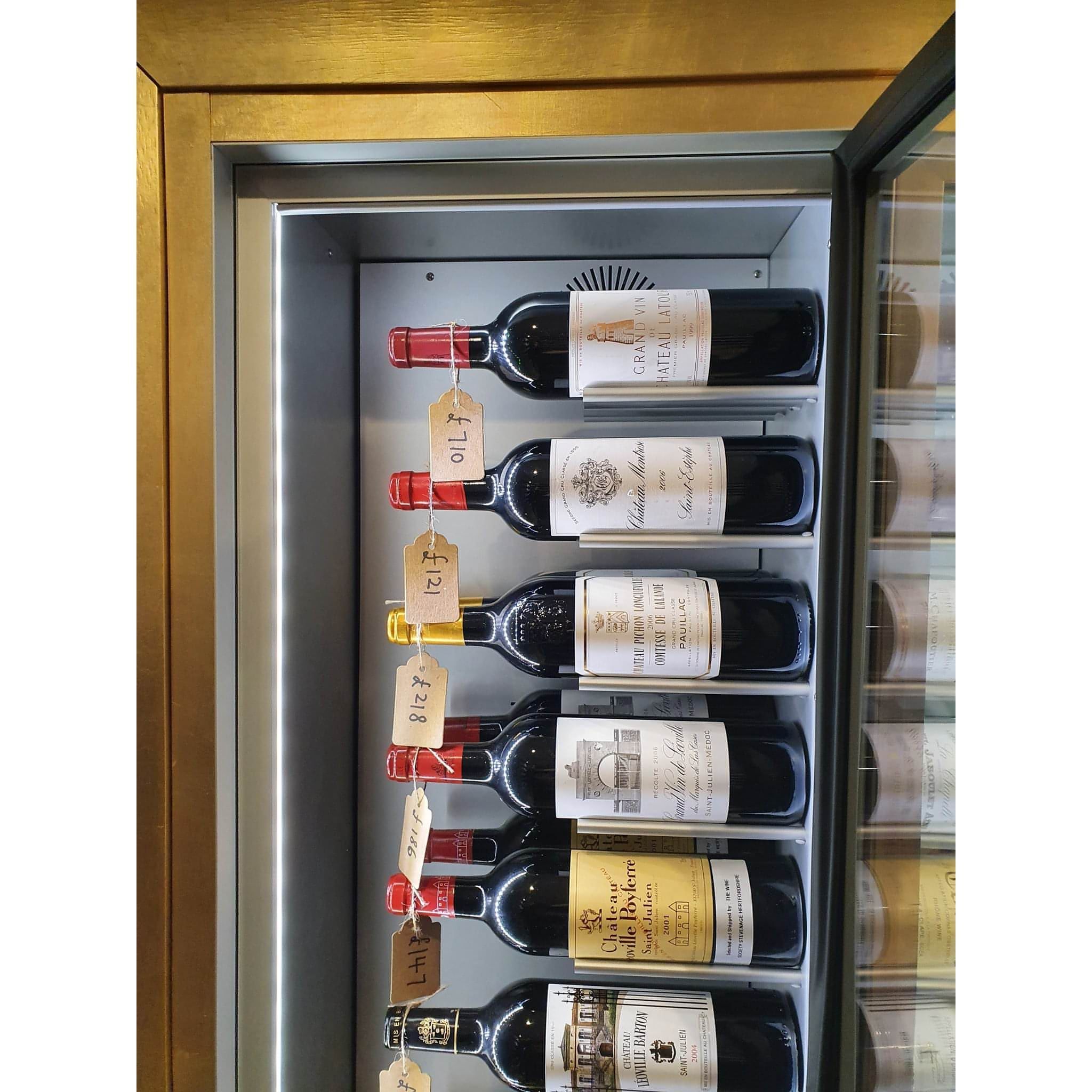

- Shelf configuration: tilted bottles. Maximum bottle height is 400mm, max. diameter is 120mm.
- Digital temperature controller (5 - 18°C)
- Rechargeable carbon filter
- Magnetic strips for the decorative trims
- Automatic defrost and automatic evaporation system
- Anti vibration system
- Inverter compressor
- Lock with key
- Ventilated and static cooling system - fan ON/OFF
- Warranty: 2 year parts and labour UK mainland and NI
- ROI warranty: 1 year parts only
Choice of 2 models

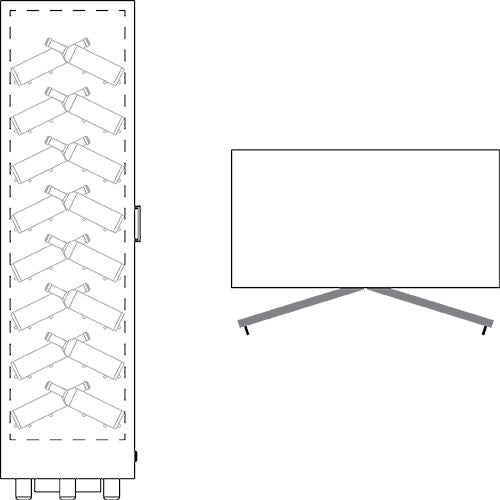

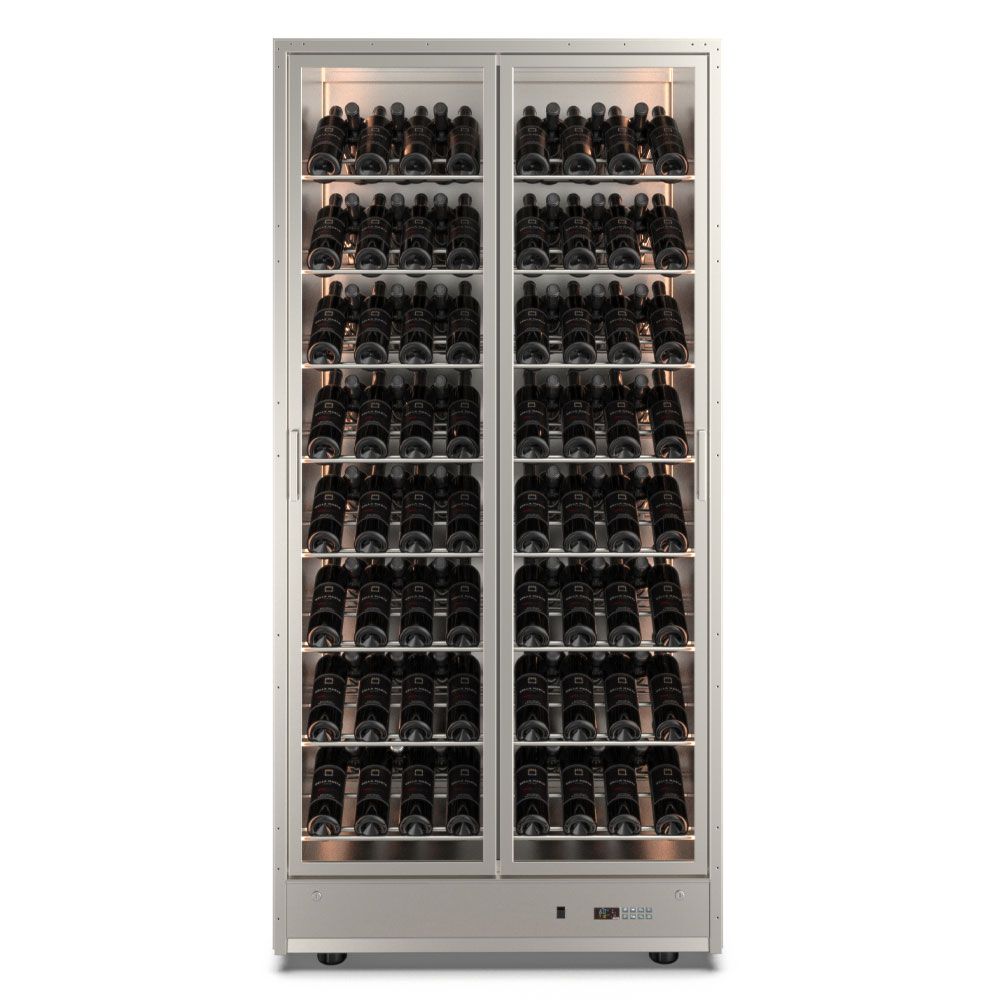

- MD-M12: 112 Bottle capacity, 510mm depth, front glass doors

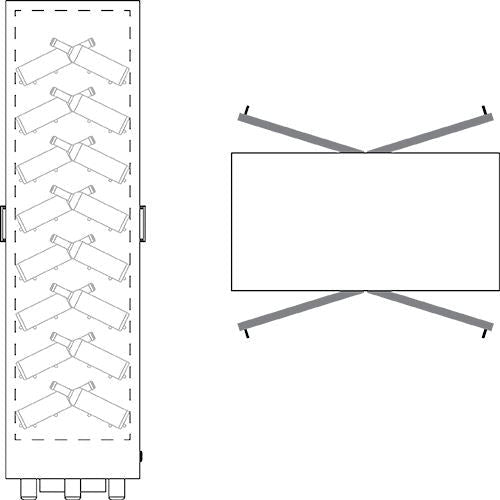

- MD-C12: 112 Bottle capacity, 510mm depth, front and back glass doors (see-through)
Customise your own wine wall

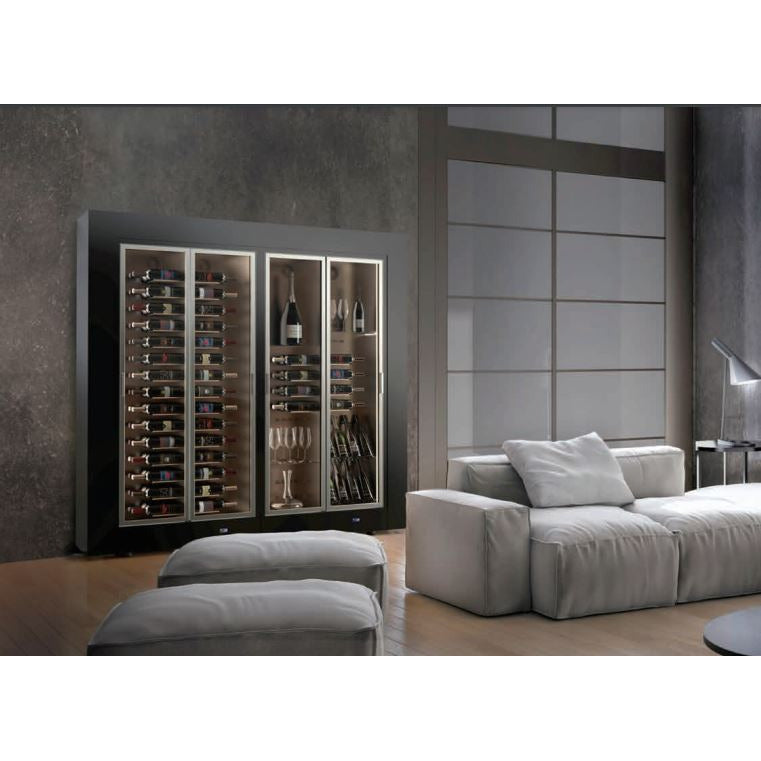

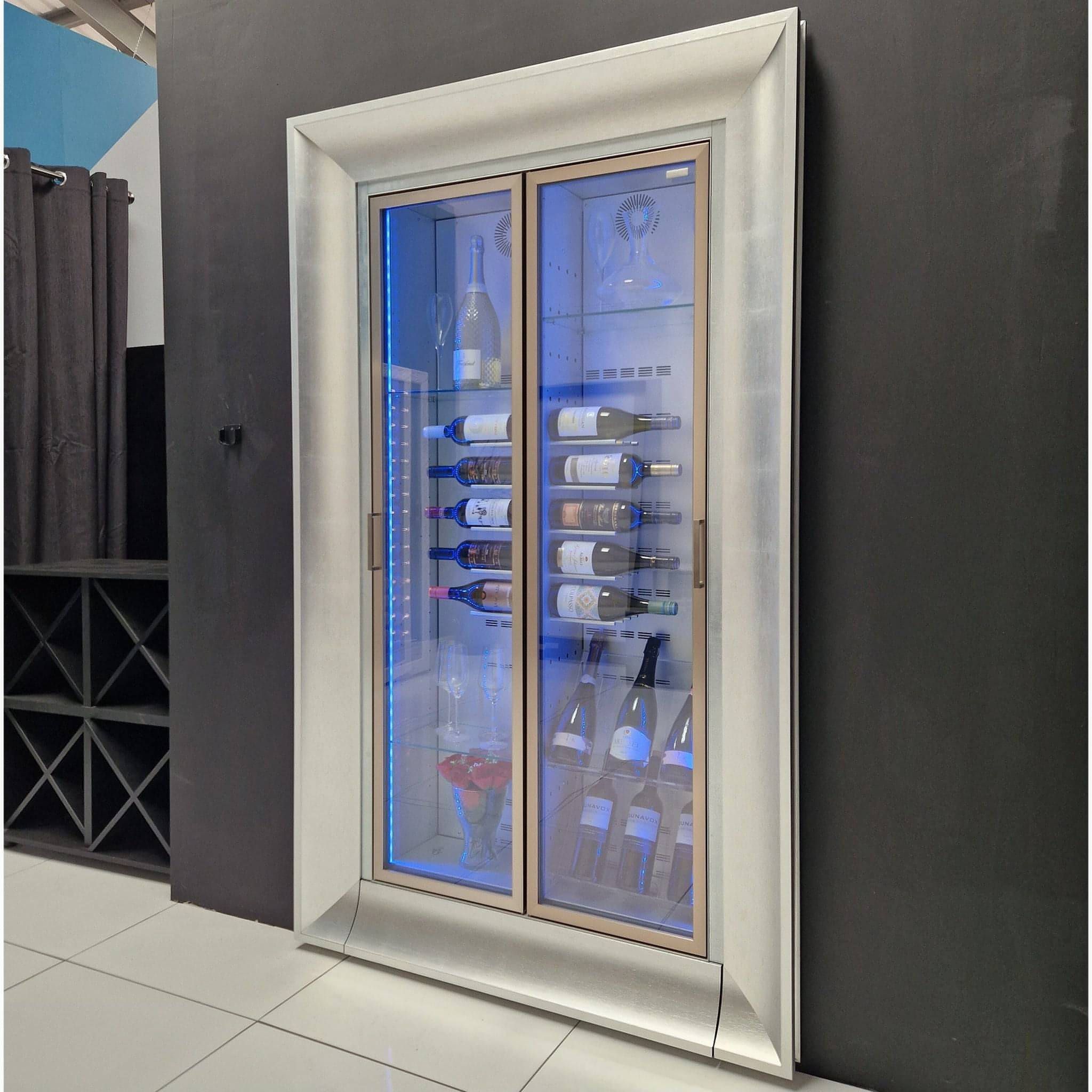

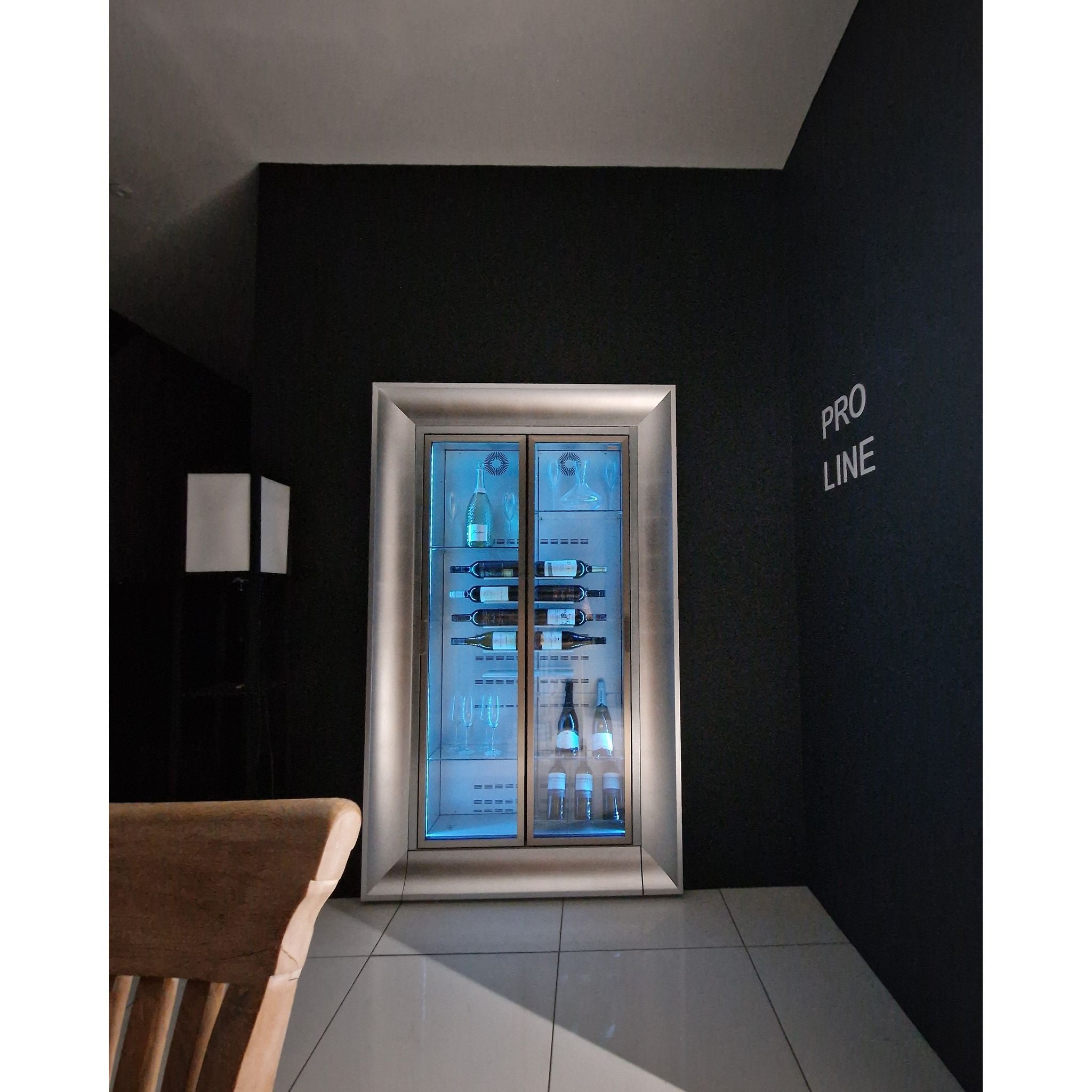

- Frame: 1) Linear style or 2) Traditional style or 3) FIT cladding (freestanding installation only)
- Frame finish: choose from a range of finishes from matte black/white, laminated textured wooden finishes to even your own RAL colour and gold/silver painted finishes (prices vary).
Use the configurator here to visualise your wine wall
- Bottle Configuration: the MD-12 comes with tilted shelving only, if you would like to customise shelving, please see MD-14.
- Add optional extras (additional charges apply - please contact us to arrange this):
1) Remote control lighting (RGB multicoloured / CBD dimmable warm/white)
2) Sprayed all black (matte) internally and externally
The Mod 10 wine walls are multi temperature zone units and have a multitude of temperature options depending on whether the fans are turned on or off and the temperature the cabinet is set to.
The temperature can be set using a digital control panel which also controls the lighting, fans and defrost cycle.
Example temperature operation, if set to 4°C:
Fans off - the wine wall will operate between 4°C at the bottom and 16°C at the top.
Fans on - the wine wall will operate between 4°C at the bottom and 10°C at the top.
The use of the fans creates a smaller temperature range as the cooler air can be distributed more evenly. Please note these are examples only and the actual temperature range may differ depending on ambient temperatures.
There are certain installation requirements needed for each model, please refer to their specification for instructions.
For example, to install the MD-H10 (shallow depth) correctly and ensure the units do not overheat - it is advised the a gap of 30mm or more is left at the back of the unit - firstly to prevent any unwanted vibrations but also to allow warm air to escape above the wine wall.
The cool air enters the wine wall from the bottom so the feet must not be covered - the airflow should be free and unhindered.
If it's being built in, there must be a vent / open space at the top of the unit to allow warm air to escape.
The shallow depth model must also be fixed to the wall with the provided bracket for stability purposes.
EXPO wine walls are manufactured to order in Italy and typically take around 6 weeks to be produced – depending on the finish, accessories you have chosen. Delivery lead time is approximately 2 weeks once production is complete.
Customers are advised to check the product dimensions to ensure the unit will fit through all doorways and please tell us about any obstructions, including steps and narrow passageways so we can make the necessary arrangements for the delivery.
