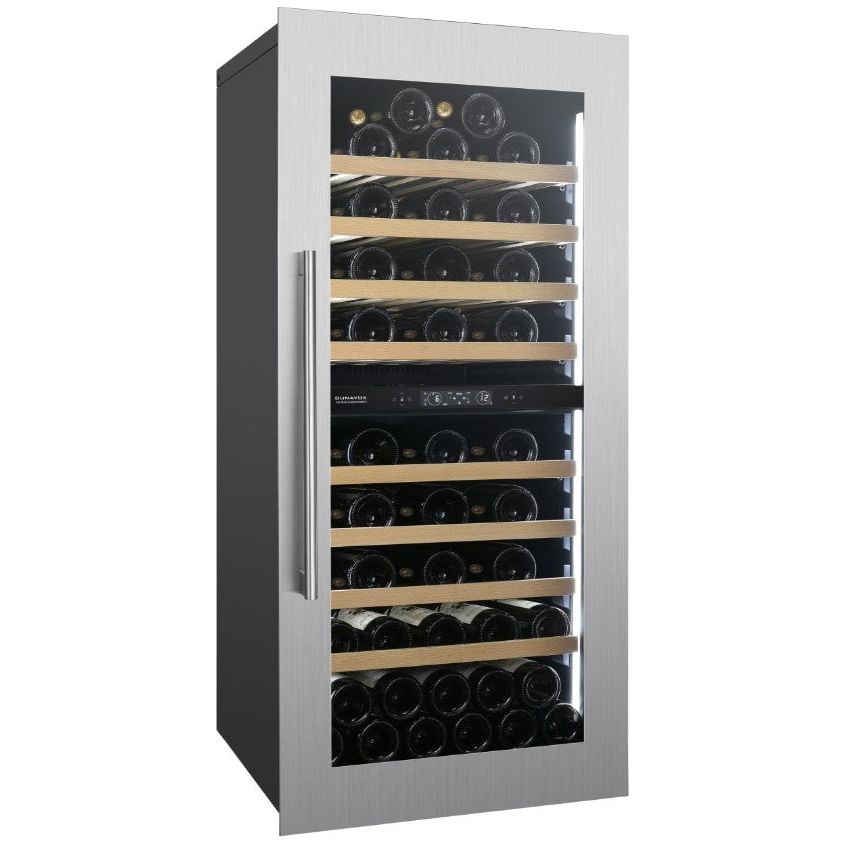

Dunavox Spirit-70 - Dual Zone 70 Bottle - Integrated Wine Cooler - DVS-70.185DSS

Kitchen - Integrated with Handle

The new DVS-70.185DSS is a new addition to Dunavox's kitchen line. It features a steel handle allowing manual access to your wine collection. The DVS-70.185DSS also features an LCD touch screen and telescopic wooden shelves.

LCD Touch Screen

The LCD touch screen is an LED display screen which allows quick and easy usage. You can set and check the desired temperature or switch the lights on or off with this function.

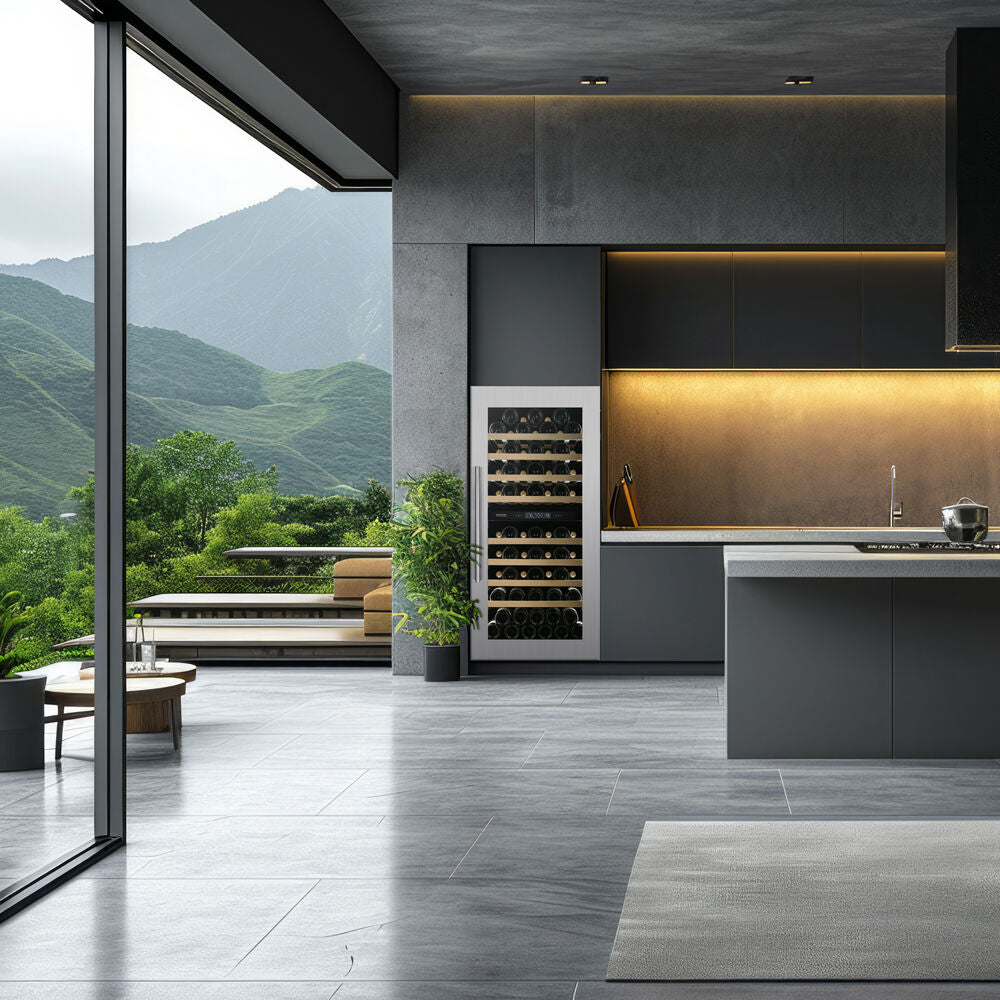

Designed to be installed in column, this model is designed for housing units with an aperture of 1234mm and is currently one of the only few units with this technology. Featuring blue, amber or white internal LED lighting, a white digital temperature display and a full glass door which is reversible for installations side by side - the DVS-70.185DSS is the must-have appliance for any luxury kitchen and wine lover.

Europe's First 'Self-Ventilating' Wine Coolers

The DVS-70.185DSS is the first of its kind, usually an integrated wine cooler requires additional ventilation requirements however the new line from Dunavox now has its own in built ventilation system so it is as simple as sliding the wine cooler into a housing and leaving it to it cool your wines in peace.

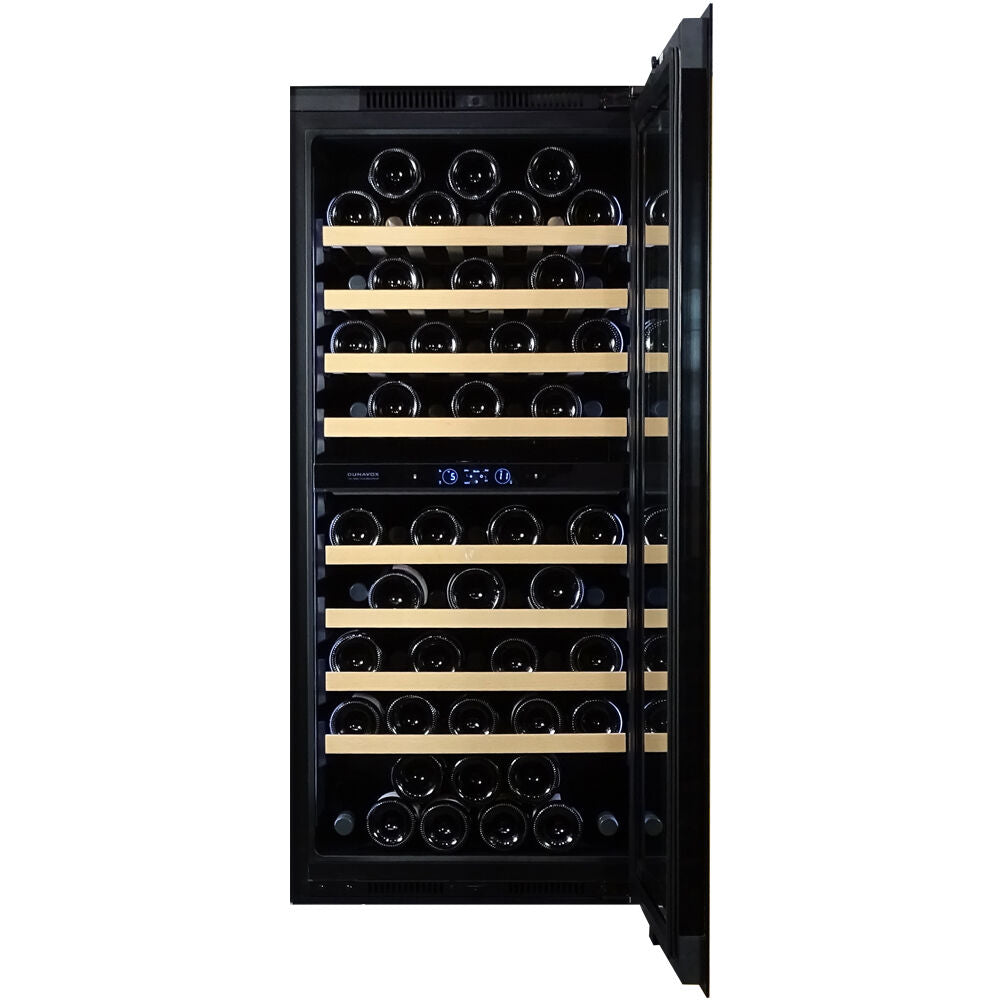

Wine Storage Compartment

With a capacity of 70 bordeaux bottles, the bottles are supported on solid beech wood shelving which can also be removed for larger bottles if required. The DVS-70.185DSS is a dual temperature zone wine cooler which is programmable to between 5 and 10°C in the upper zone and 10-18°C in the lower zone, which means you can serve both reds or whites at their optimum serving temperature whilst ensuring no UV damage due to the treated glass door.

Noise Level and Energy Efficiency

Dunavox are widely known for their quiet wine coolers, the high quality components used such as the fans means the integrated units are highly reliable and have a low operating noise of 36dB. Once installed, these units won't be noticeable. Not only are they quiet, they are rated 'F' for energy efficiency and only using 112kWh/annum - and of course they look extremely stylish and luxurious.

Why Shop with Elite Wine?

• The UK's leading retailer of wine fridges and wine cabinets
• Trading since 2016 - we have an extensive knowledge of the wine cooler industry
• The exclusive UK distributor for the top brands - Dunavox, Climadiff, Avintage, La Sommeliere and Dometic
• The official UK partner and only stockist for Swisscave
• Rated excellent on Trustpilot with 5-Star reviews.

Learn more about us here.

SPECIFICATION

• 1234mm integrated wine cooler
• 70 Bottle Capacity (750ml standard Bordeaux bottles)
• Dual temperature zone
• Internal operating temperature: upper zone 5-10°C / lower zone 10-18°C
• Stainless steel
• Integrated with steel handle
• Self ventilating: Can be installed integrated / in column
• Full tinted glass door with UV protection
• Automatic humidity management: 55-85%
• Reversible door
• Sabbath mode (all lights off but unit keeps running)
• Open door alarm
• Malfunction and high temperature alarm
• Multi LED lighting - White, blue or amber
• Lighting on/off function

• LCD touch screen
• Soft closing Hettich hinge
• Designed for in column use
• Wifi and Smart app
• 3 year manufacturers warranty + 5 years on the compressor

Cabinet Dimensions:

• Height: 1233mm
• Width: 590mm
• Depth: 571mm (including door)

Cooling system:

• Fan assisted cooling system for even temperature distribution
• Compressor driven which is mounted on vibration free mountings
• Automatic defrost

Performance and Consumption:

• Noise level: 36dB
• F Energy Class: 112kW/annum
• Rated power: 220-240V, 50Hz, 0,6A
