- Energy Efficiency: 'G'
- Manufactured in France
- Rated capacity: 230 bottles (750ml standard Bordeaux bottles)
- Temperature settings: 9-15°C
- Dimensions: Height: 182.5cm, Width: 68cm, Depth: 72cm
- 2 year warranty
Artevino's single temperature zone, storage cabinets

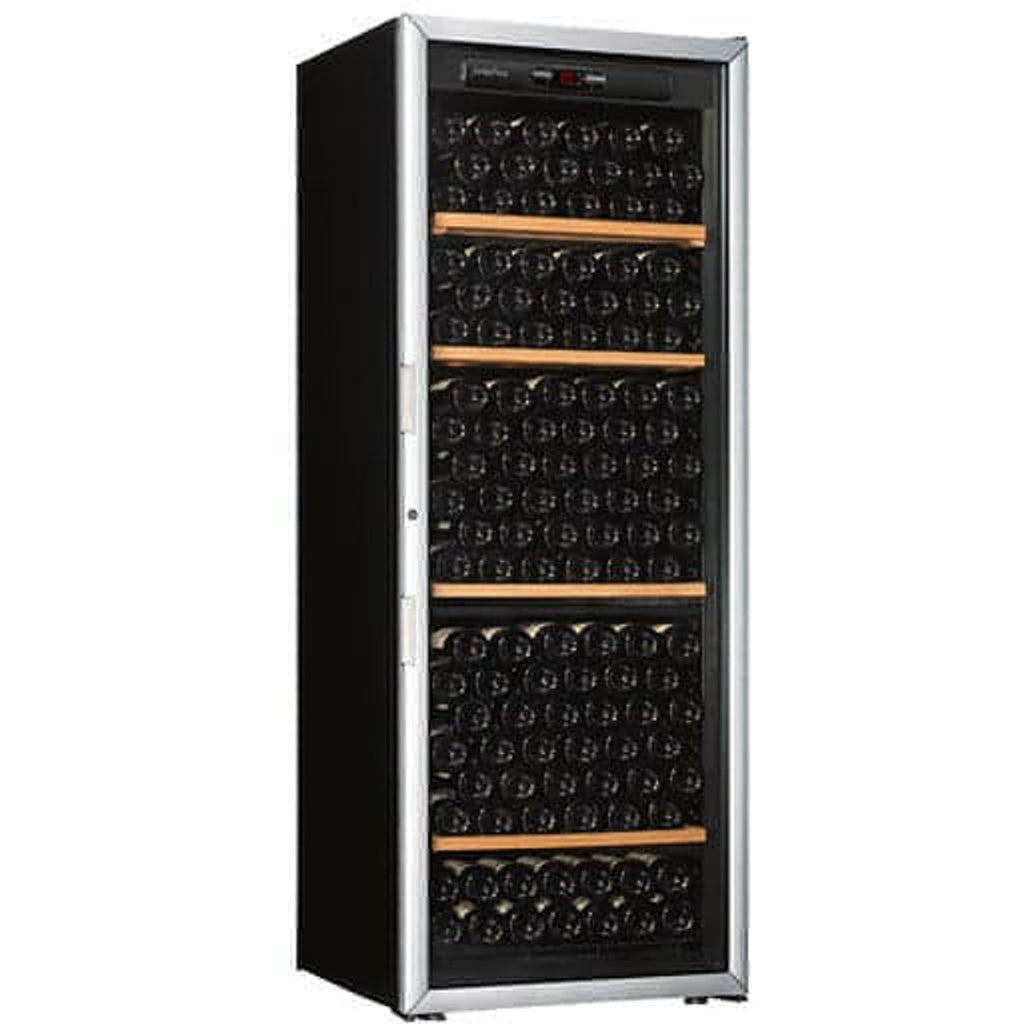

The OXG1T230NVSD is designed to offer your wine the best environment to be stored in for extended periods of time - they mimic a natural wine cellar and offer a constant temperature, suitable humidity levels to keep the cork moist and UV protection as well as utilizing very low vibration components.
The OXG1T230NVSD is a single temperature zone unit designed with long term storage in mind, with a capacity of 230 Bordeaux bottles you can store your bottles in perfect conditions.
Interior and temperature
The temperature within the cabinet can be set to between 9 and 15°C which will be one consistent temperature throughout the whole cabinet. The interior is manufactured from Aluminium sheet metal to encourage excess water vapour to condense on the back wall and maintain optimal humidity levels.

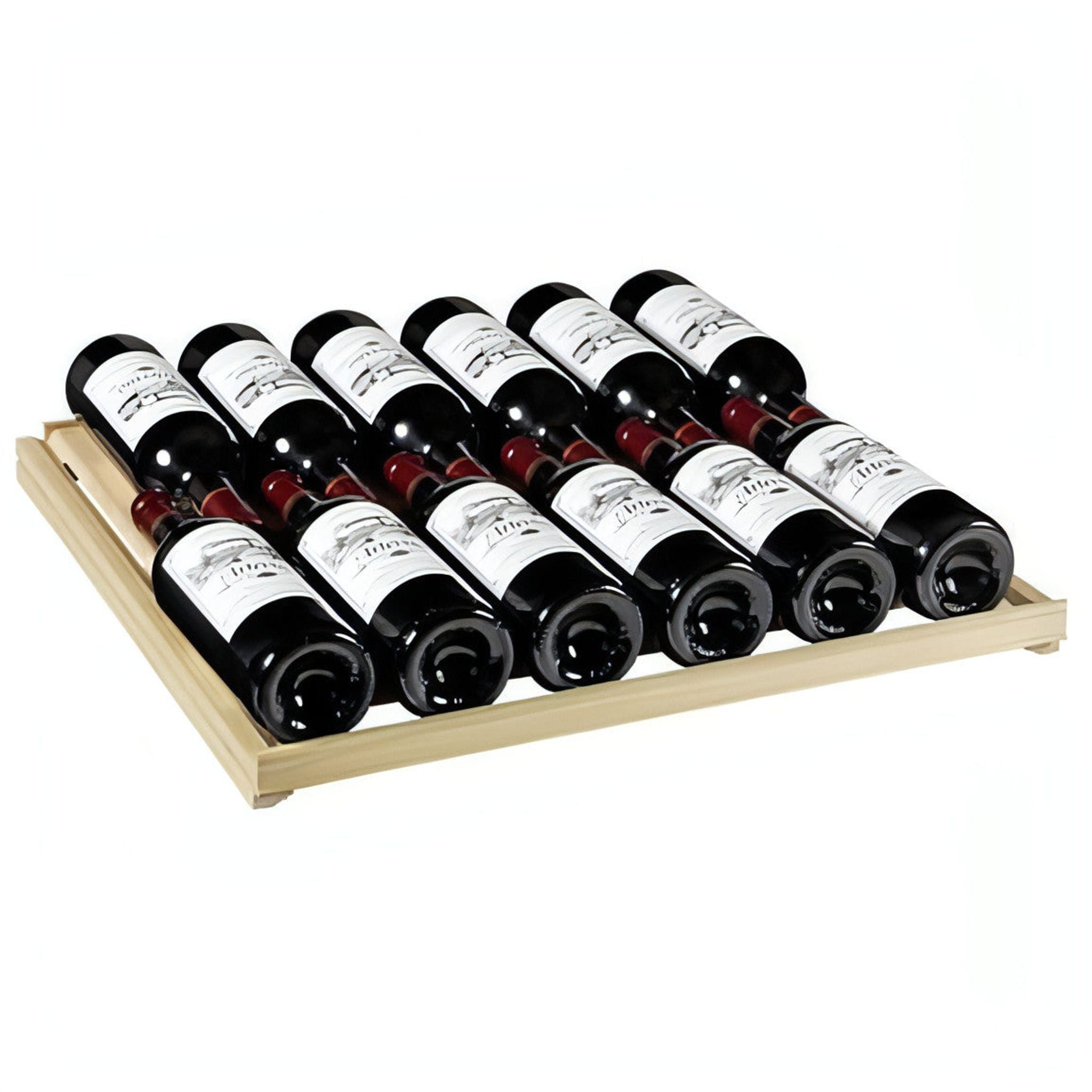

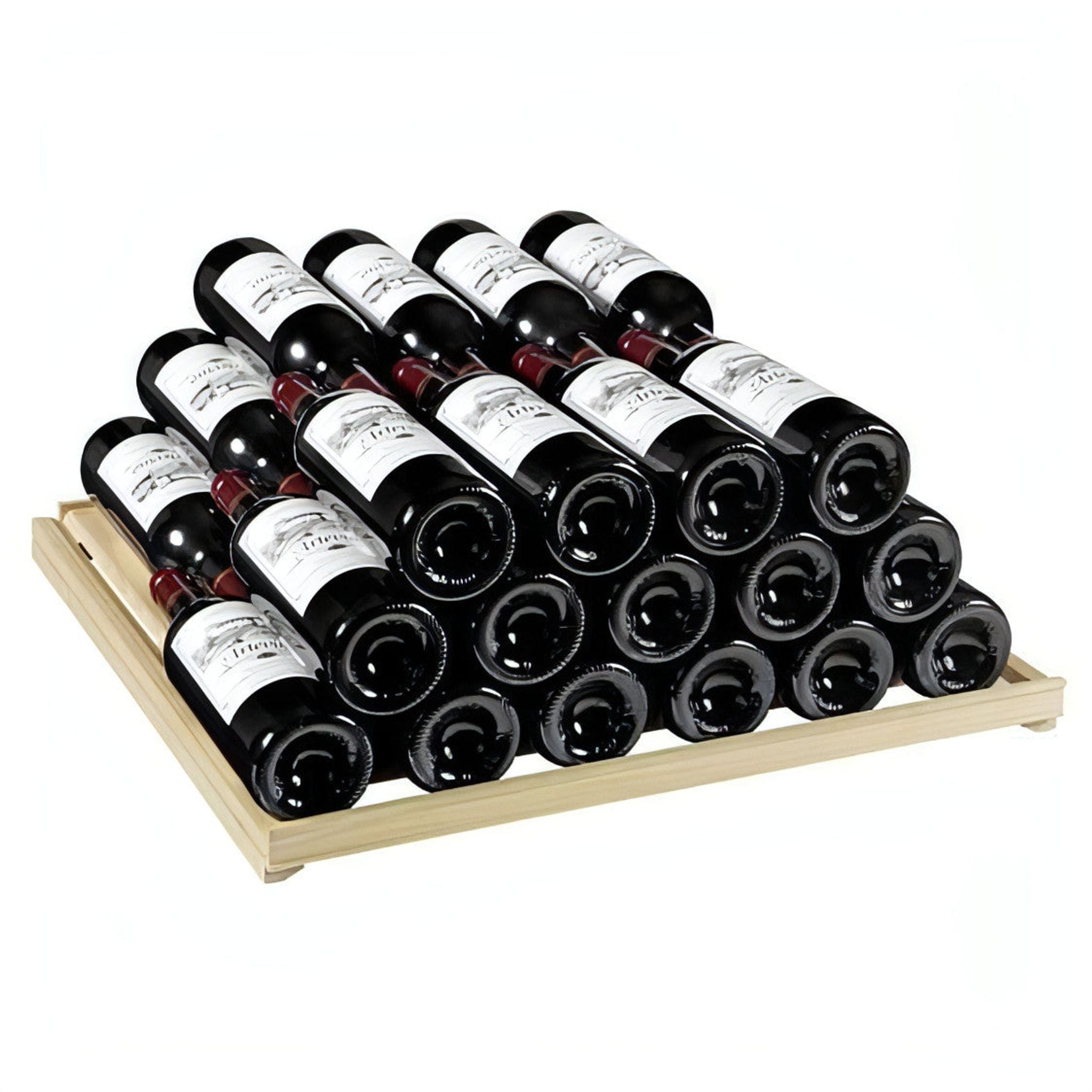

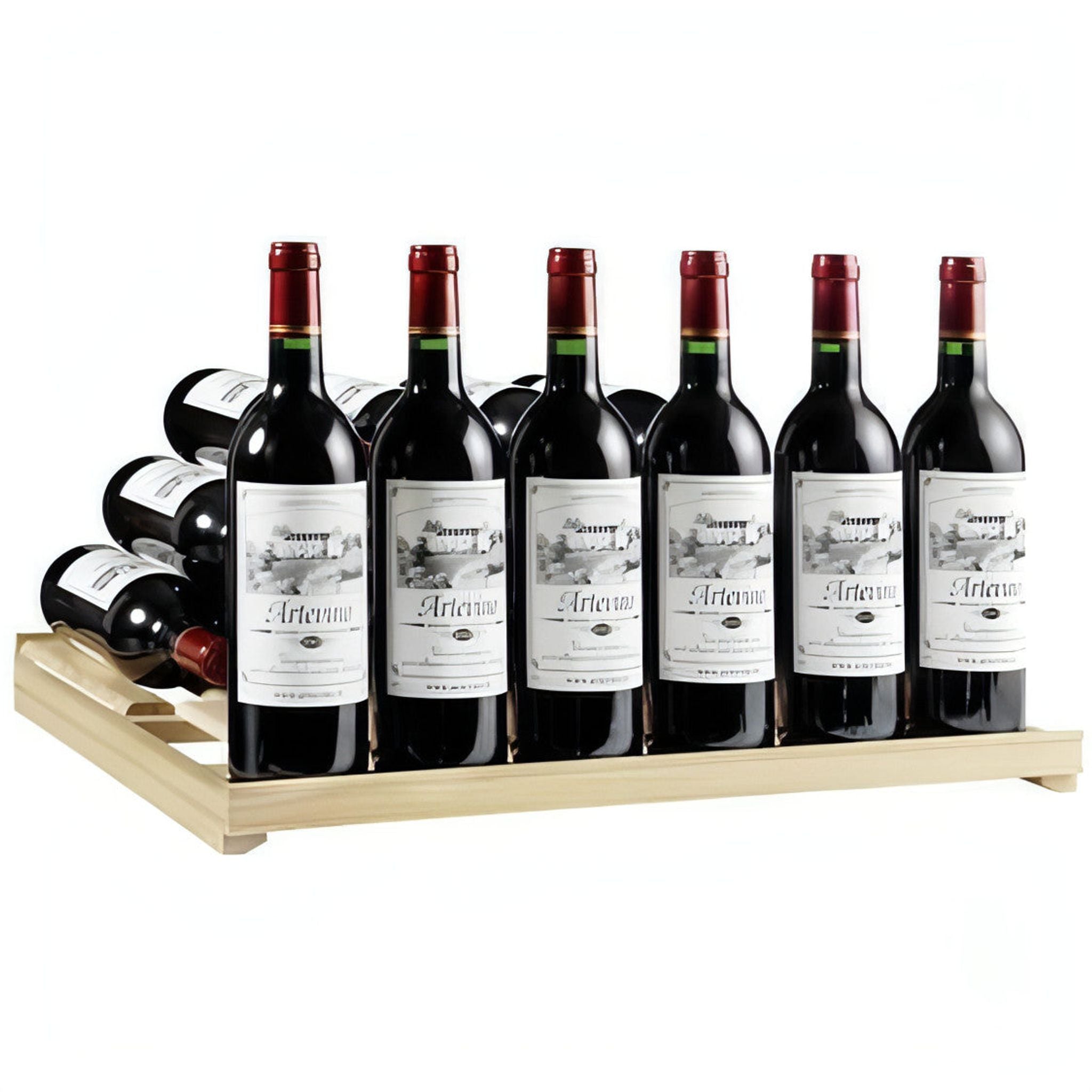

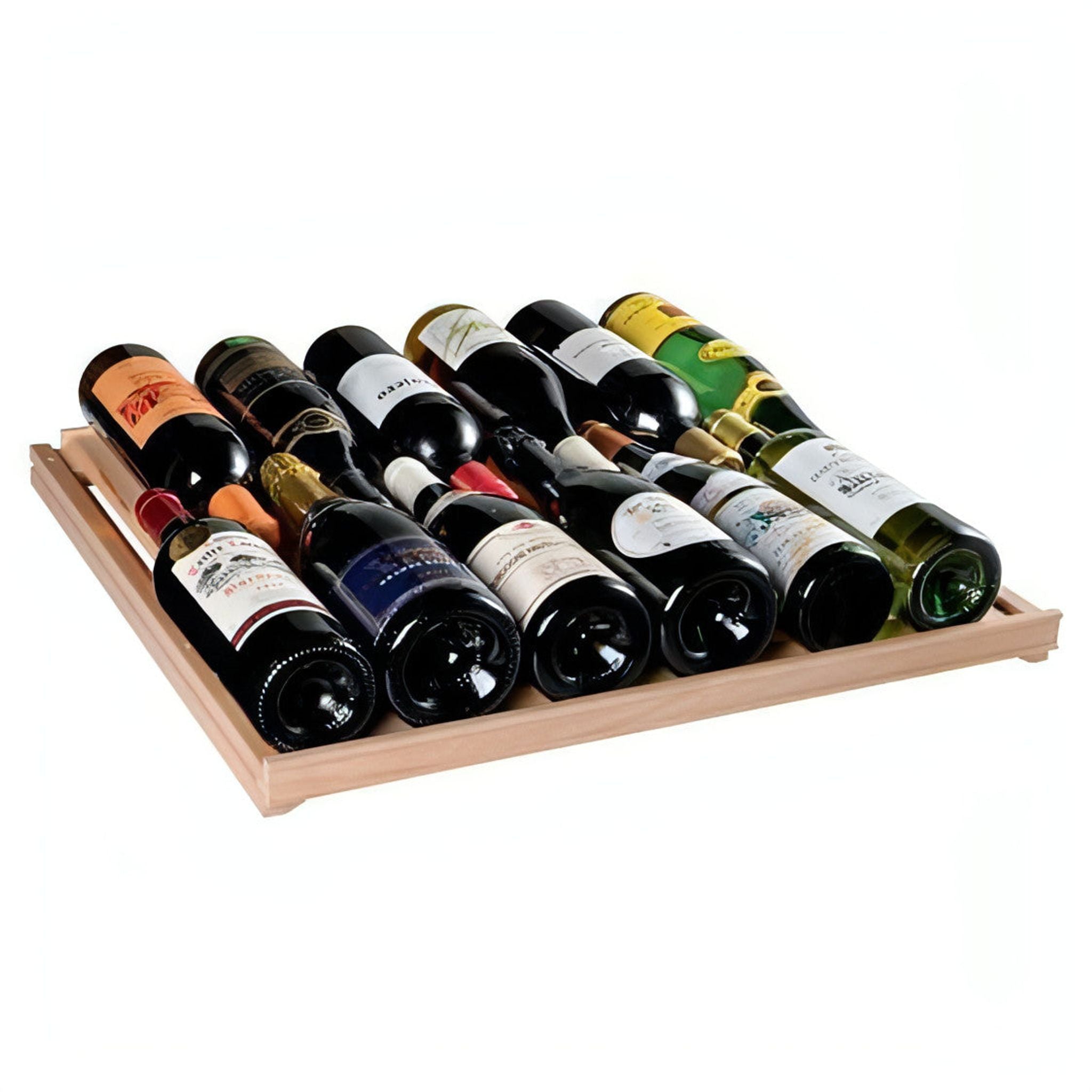

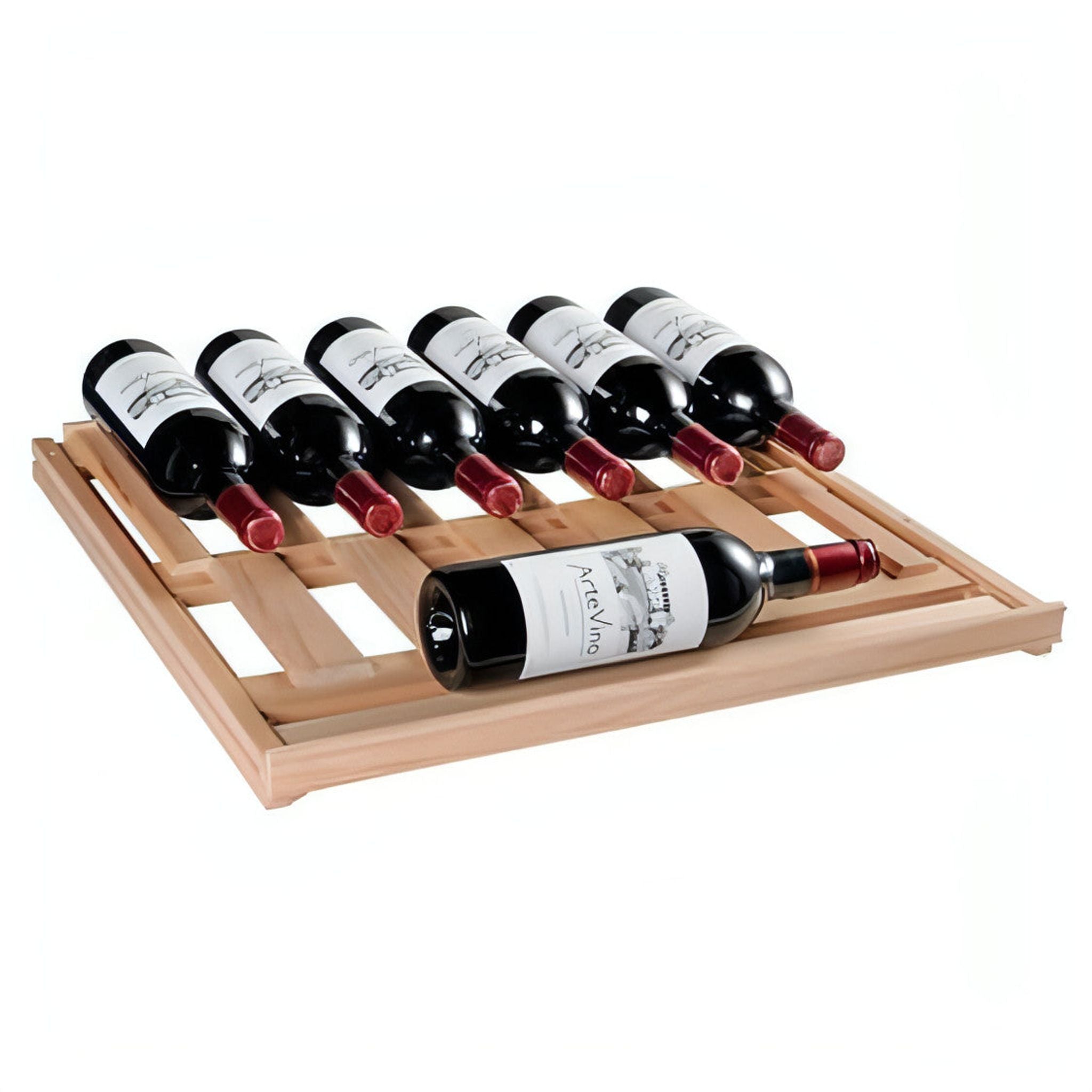

The OXG1T230NVSD is delivered with 4 universal shelves in beech wood - the universal shelf can be used to display your bottles, stack various bottle shapes effectively and can also be converted into a sliding shelf with the addition of sliding rails.

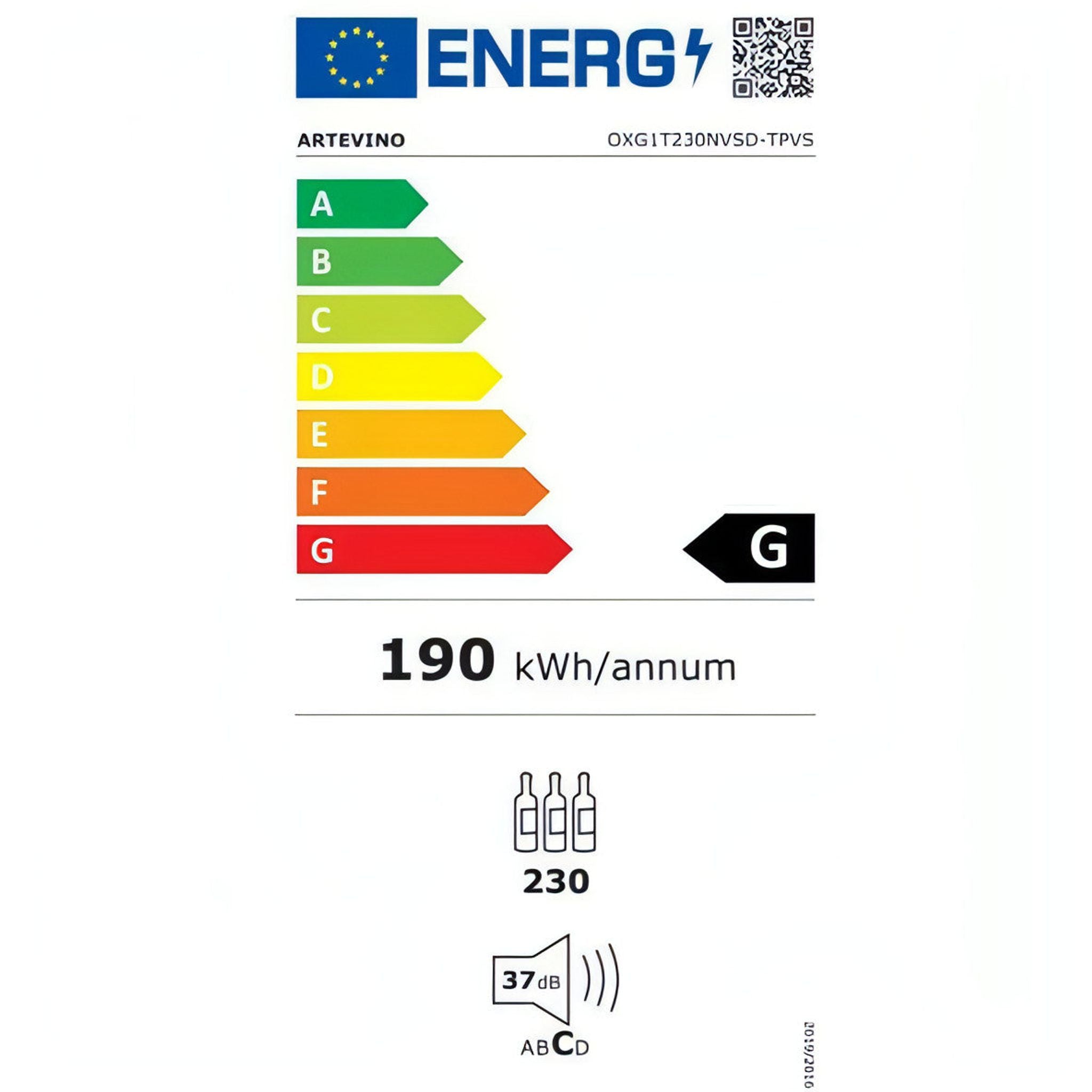

The OXG1T230NVSD is an energy efficient wine cabinet, rated G and using only 190 kWh/annum. Noise level it is rated 37dB which is one of the lowest readings available on the market today, so whether installed in the garage or inside your house - this cabinet will not be intrusive.
The winter system this model is equipped with also means that it can tolerate temperatures down to 0°C, thanks to the heating and cooling ability.
Manufactured in France
The final point to note is the Artevino cabinets are European manufactured and distributed as far as the USA. On the most part Aretvino manufacture's all their cabinets to order so there is very little stockholding in France - Elite Wine aims to keep the best selling models in stock but most units will be subject to a 6-8 week lead time.
Why Shop with Elite Wine?
- The UK's leading retailer of wine fridges and wine cabinets
- Trading since 2016 - we have an extensive knowledge of the wine cooler industry
- The exclusive UK distributor for the top brands - Dunavox, Climadiff, Avintage, La Sommeliere and Dometic
- The official UK partner and only stockist for Swisscave
- Rated excellent on Trustpilot with 5-Star reviews.
Learn more about us here.
|Carcass||Black coated steel|
|Glass||Silver frame glass door|
|Door handle||Integrated into door frame|
|Reversible Door||Purchase LH hinged model - Contact us|
|Dimensions (h x w x d)||1825 x 860 x 725|
|Packaged dimensions (h x w x d)||1950 x 720 x 760|
|Lighting on/off switch||No|
|Total number of shelves||4 Universal shelves|
|Number of display shelves||4 Universal shelves|
|Number of bottles per shelf||12 per layer|
|Telescopic Shelves||Optionally available|
|Inside Casing||Aluminium sheet metal|
|Optimal Usage||Long Term Storage|
|User Interface||Red electronic LED screen|
|Active Carbon Filters||Yes|
|Vibration Free||Yes, on silent blocks|
|Cooling System||Static Cooling|
|Temperature Memory Function||Yes|
|Condensation Water Container||Yes|
|Heating||Yes with winter function|
|Acoustic Temperature Alarm||Yes|
|Acoustic Door Alarm||Yes|

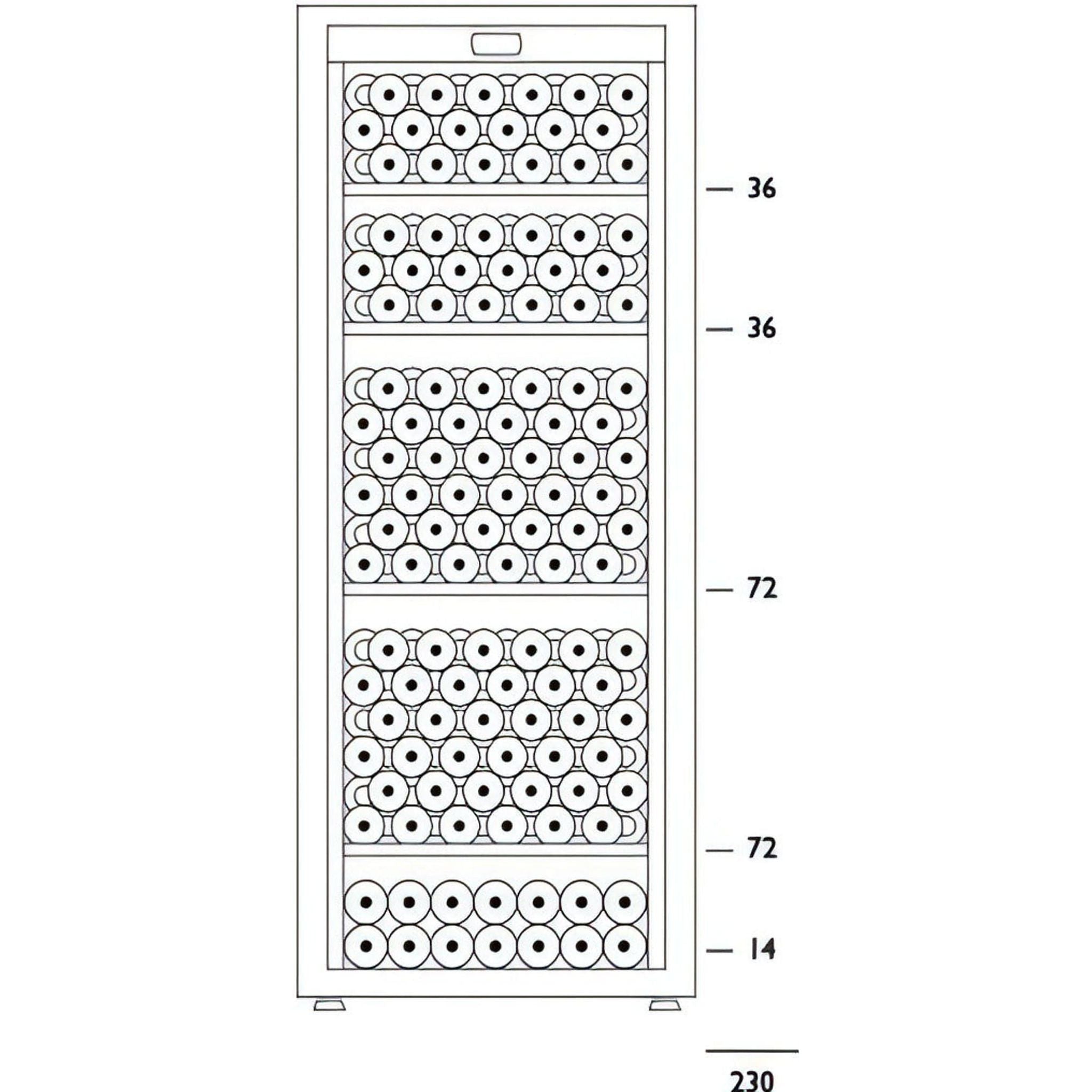

|Max Bottle Capacity - Shelves Removed (Bordeaux)||230|
|Max Bottle Capacity - All shelves mounted (Mixed shape, all shelves inserted)||170|
|Space for large bottles (IE Magnums)||Yes, reduces capacity|
|Humidity Range (%)||65-85|
|Operating ambient temp range||0 to 35°C|
|Noise Level (dB)||37|
|Installation Type||Freestanding only|
|Warranty Extension Available||No, 2 years parts and labour|
|Transport Weight (kg)||98.4|
|Net Weight (kg)||82.4|
|Power Consumption (kWh/annum)||190|
|Voltage Required||220V / 50Hz|
|Power Cable Length||1.5m|
